Beuler 5078 SPST 120-Amp High Current Relay

$25.99
In stock
SKU
5078

Key Features

  • High current solenoid style relay
  • 120 amp / 135 amp rated contacts
  • SPST - Single Pole, Single Throw
  • 12 Vdc rated coil with minimum 7 volt to trigger
Unit includes: 12 volt relay

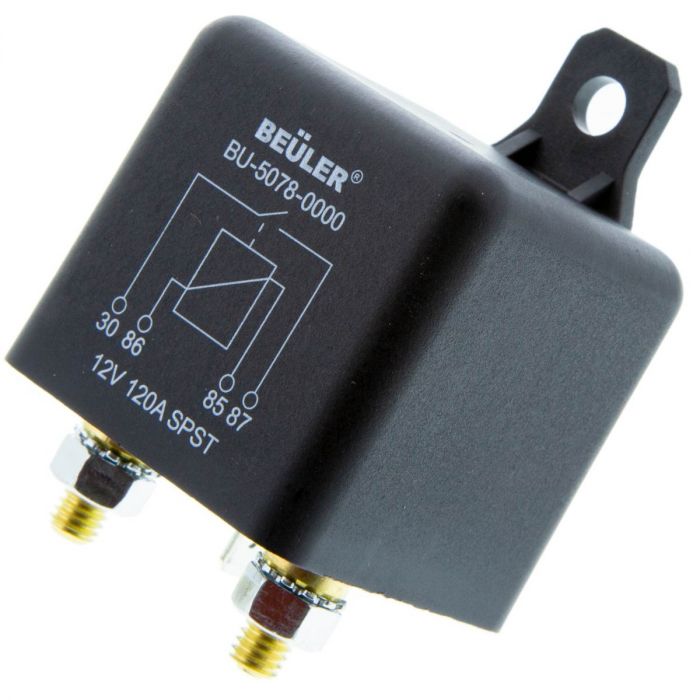

Beuler 5078 SPST 120-Amp High Current Relay

The Beuler 5078 is a high current 12 Volt relay that is designed for large loads. This relay is commonly used in automotive electrical and security installations. It easily switches 120 amps of current and peaks of 135 amps with minimal draw on the coil of 400 milliamps @ 12Vdc. It features a single plastic mounting tabs and a plastic housing. Single Pole, Single throw for flexible installations and multiple uses such as accessory or electrical bus turn on.

    Features:
  • High current relay
  • 120 amp / 135 amp rated contacts
  • SPST - Single Pole, Single Throw
  • 12 Vdc rated coil with minimum 7 volt to trigger
  • Power consumption @ 12Vdc 400 mA
  • Solenoid style with dual 1/4" male disconnects for trigger
  • Solenoid style with dual 1/4" threaded studs for load
  • Dimensions 1-7/8" (W) x 1-7/8" (D) x 3" (H) with terminals and tab
  • Lifespan: 100,000 cycles @ 120 amps
More Information
Manufacturer Beuler
Part Number 5078
Operation Voltage 12-15 Volt DC
Relay type High Current
Current capacity 120 Amp
Pole switching type SPST (Single pole Single throw)
Tab type Plastic Tab
Waterproof ingress protection None
Warranty 90 days
Return period 30 days
Exchange period 30 days
