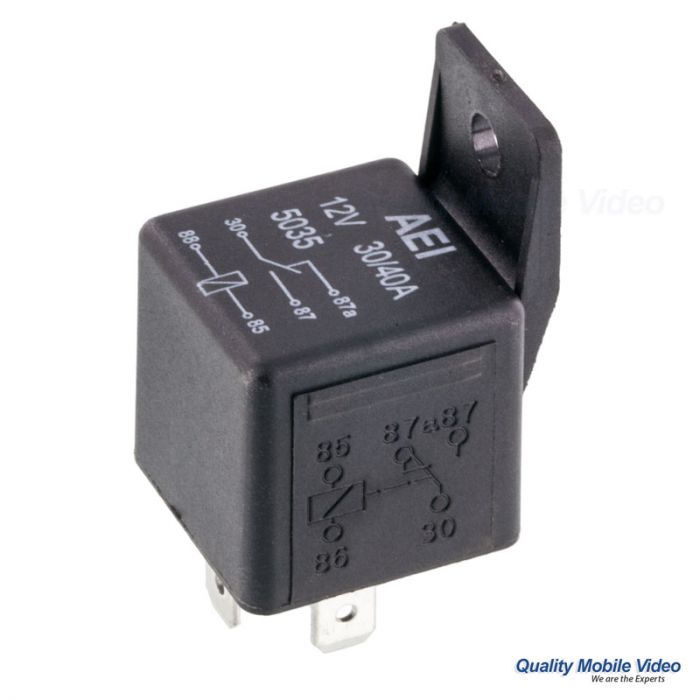

Quality Mobile Video 5035 12 VDC Automotive 5-Pin Relay SPDT 30/40A with Plastic tab

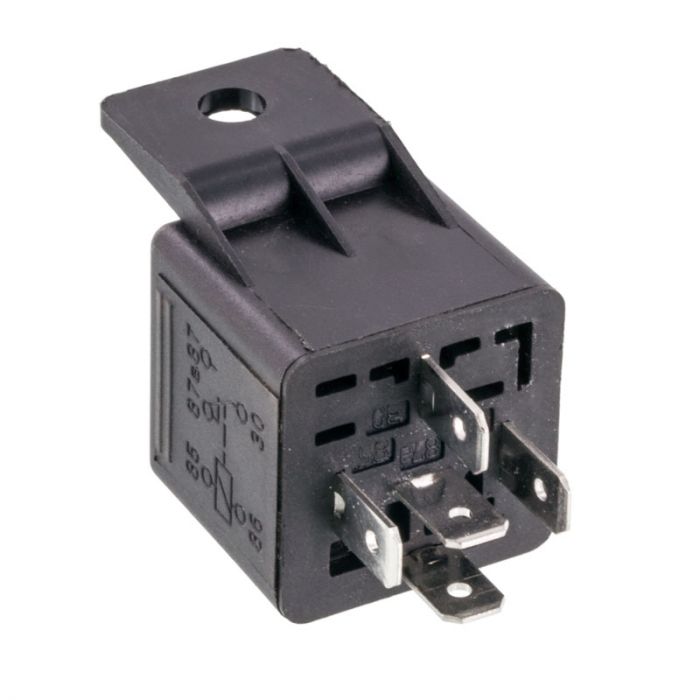

The Quality Mobile Video 5035 is a low cost 12 Volt relay. This relay is commonly used in automotive sound and security installations. It easily switches 30 amps of current and peaks of 40 amps with minimal draw on the coil of 147 milliamps @ 12Vdc. It features a plastic tab with plastic housing. Single Pole, Dual throw for flexible installations and multiple uses such as amplifier turn on or door lock actuation.

Features:
• Low cost imported relay
• 30 amp / 40 amp rated contacts
• SPDT - Single pole dual throw
• 12 Vdc rated coil with minimum 8 volt to trigger
• Power consumption @ 12Vdc 147 mA
• Conventional 87, 87a, 30, 86, and 85 pin locations
• Compatible with most insulated and non insulated terminals and relay sockets
• Dimensions 1 1/8" (w) x 1 1/4" (D) x 2" (H) with terminals and tab

Pin configuration:
• Pin 86 - Coil
• Pin 85 - Coil
• Pin 30 - Common Pin
• Pin 87a - Normally closed pin
• Pin 87 - Normally open pin
