Metra AFSI-01 Ford SYNC Retention Interface with Navigation Output Wires with OLED display
Metra AFSI-01 Ford SYNC Retention Interface with Navigation Output Wires with OLED display
Key Features
Complete car stereo integration harness for Non-Amplified audio systems Provides 12 volt 10 amp car accessory Provides RAP (Retained Accessory Power) High level speaker inputs for connections to factory speakers Provides NAV outputs (parking brake, reverse, mute, V.S.S.) Retains OEM Bluetooth system

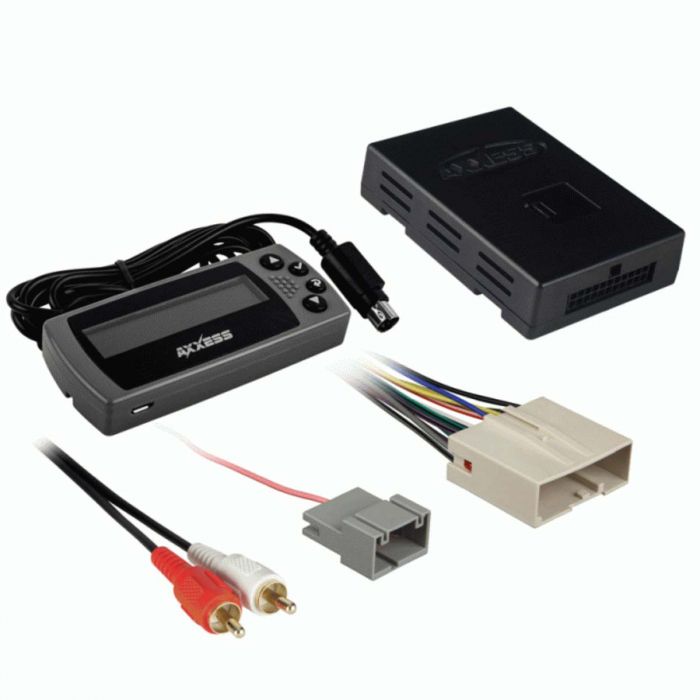

Unit includes: AFSI-02 Interface, AXXESS 16-pin harness with stripped leads, AXXESS 22-pin to Ford 24-pin and 16-pin harness, and Instruction manual
Metra AFSI-01 Ford SYNC Retention Interface with Navigation Output Wires with OLED display
Features
Complete car stereo integration harness for Non-Amplified audio systems
For standard sound systems with stand-alone subwoofer, use part number 70-5522 along with the AFSI-01
Cannot be used with the Sony / THX audio systems use part numbers AX-ADBOX2 and AX-ADFD01
Provides RAP (Retained Accessory Power)
High level speaker inputs for connections to factory speakers
Includes a prewired ASWC-1 connector
Provides NAV outputs (parking brake, reverse, mute, V.S.S.)
Retains OEM Bluetooth system
Adjustable gain control for SYNC
12 volt 10 amp car accessory
Allows the user to connect a USB device (via some additional connector)
Connections:
Yellow - 12V Constant
Red - 12V Accessory
Black - Ground
Orange with White stripe - Dash Light Dimmer/Illumination
Blue with White stripe - Power amplifier turn on (+)
Blue - Power antenna turn on (+)
Light Green - Parking brake wire(-)
Blue with Pink Stripe - VSS (Vehicle speed sensor)
Brown - Mute wire (+)
Green with Purple Stripe - Reverse wire (+)
Green - Left Rear Speaker (+)
Green with Black Stripe Left Rear Speaker (-)
White - Left Front Speaker (+)
White with Black Stripe – Left Front Speaker (-)
Purple - Right Rear Speaker (+)
Purple with Black Stripe – Right Rear Speaker (-)
Gray - Right Front Speaker (+)
Gray with Black Stripe – Right Front Speaker (-)
Red RCA - Right Aux in to aftermarket radio
White RCA - Left Aux in to aftermarket radio Compatible With:
Ford
2010 - and Up Econoline
2008 - 2010 Edge
2009 - 2012 Ford Escape
2009 - and Up Expedition
2008 - 2010 Explorer
2008 - 2010 Explorer Sport Trac
2009 - and Up F-250
2009 - and Up F-350
2009 - and Up F-450
2009 - and Up F-550
2008 - 2012 Flex
2008 - 2012 Fusion
2008 - 2009 Ford Taurus
2008 - 2009 Ford Taurus X
Lincoln
2008 - 2010 MKX
2008 - 2010 MKZ
Mercury
2008 - 2011 Milan
2008 - 2010 Mountaineer
2008 - 2009 Sabe
More Information
Manufacturer
Metra
Part Number
AFSI-01
Wiring harness function
Replace Factory Radio
Warranty
1 Year
UPC Code
086429006175
Return period
30 days
Exchange period
30 days
Wiring Harnesses Explained
What do all of the wire colors mean? Aftermarket manufacturers have made car stereo receiver installation an easier process by using a standardized wire color scheme. We walk you through what each individual wire does, this way if you have an installation that doesn't perform properly you will have the resources to begin troubleshooting your installation.
