PAC AOEM-GM21C Amplifier Interface Kit in Select 1998-2002 GM/Chevrolet Vehicles
$45.99
In stock
SKU
AOEM-GM21C
Expert Knowledge
Talk to a specialist
- Fits 2001 and Up select General Motors vehicles
- Interface is designed to be used with factory radios and converts radio outputs to aftermarket amplifier audio connections
- Provides front and rear low level outputs
- Provides full range audio output 20-20,000Hz

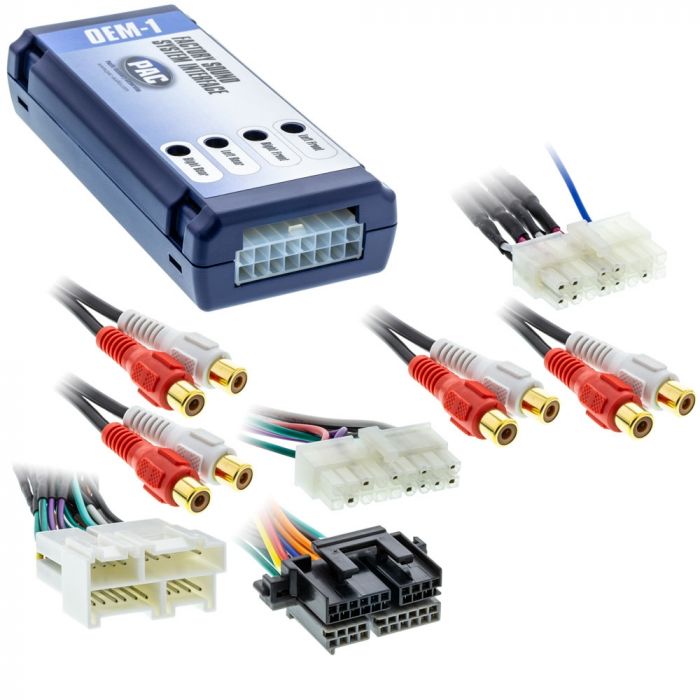

Unit includes: A) AOEM-GM24 interface, B) RCA harness, C) General Motors harness, and Instruction manual
PAC AOEM-GM21C2001 and Up General Motors amplified audio system interface:
Interface Features:
Connections:
Kit Components:
Tools Required:
Vehicle Applications:
Pontiac:
Chevrolet:
PAC AOEM-GM21C2001 and Up General Motors amplified audio system interface:
Interface Features:
- Provides line level output for aftermarket amplifiers and makes adding or replacing an amplifier easy
- Works with non-amplified, audio systems
- Not compatible with premium factory amplified systems
- Not compatible with Navigation equipped vehicles
- Interface is designed to be used with factory systems and converts factory radio outputs to and aftermarket amplifier
- 4 - High level speaker inputs makes connections for aftermarket amplifier easy
- Provides front and rear low level outputs
- Retains balance and fader
- Provides full range audio output 20-20,000Hz
- Interface is transformer isolated to prevent damage to factory radio in the event of an issue with aftermarket amplifier
Connections:
- Green – Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White – Left Front Speaker (+)
- White with Black Stripe – Left Front Speaker (-)
- Purple – Right Rear Speaker (+)
- Purple with Black Stripe – Right Rear Speaker (-)
- Gray – Right Front Speaker (+)
- Gray with Black Stripe – Right Front Speaker (-)
Kit Components:
- A) AOEM-GM24 interface
- B) RCA harness
- C) General Motors harness
- D) Instruction manual
Tools Required:
- Panel Removal tool
- Cutting tool
- Crimping tool
- Electrical tape
- Crimp connectors
Vehicle Applications:
Pontiac:
- 1999 Bonneville
- 2000 - 2003 Grand Prix
Chevrolet:
- 2002 Avalanche
- 1998 - 2002 Camaro
- 1998 - 2002 S-10 Pickup
- 2001 - 2002 Tahoe
| Manufacturer | PAC |
|---|---|
| Part Number | AOEM-GM21C |
| Wiring harness function | Replace Factory Radio |
| Warranty | 1 Year |
| UPC Code | 606523105378 |
| Return period | 30 days |
| Exchange period | 30 days |
