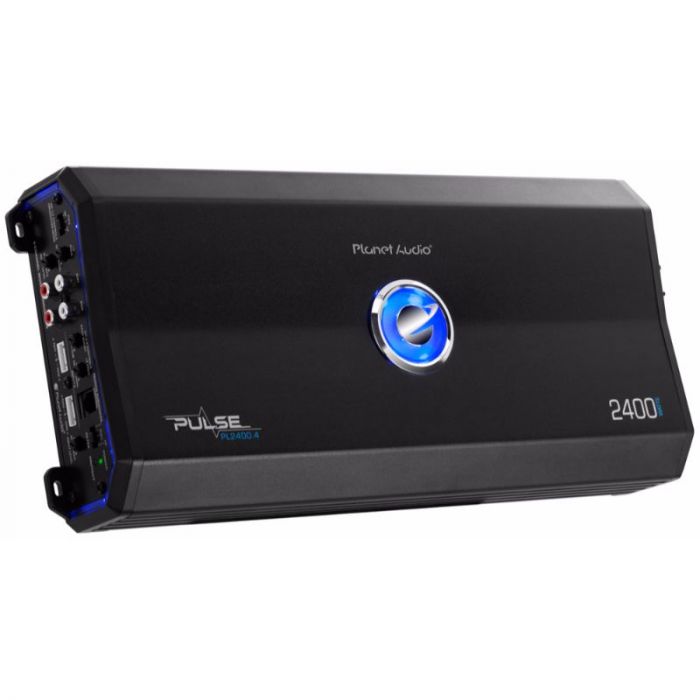

Planet Audio PL2400.4 Class AB 4 Channel Amplifier - 2400 Watts

$139.99
In stock
SKU
PL24004

Key Features

  • Planet Audio 2400 watts Full range amplifier
  • Class A/B 2 ohms stable amplifier
  • Pulse width modulated MOSFET power supply
  • Anodized and black colored heatsink
  • Remote subwoofer control

Cranking up the volume 10 fold with the Planet Audio PL2400.4 Class AB 4 Channel complete range amplifier with a booming 2400 Watts Max Power Metal Oxide Semiconductor Field Effect (MOSFET) power supply gets you going on the highway of extreme music like never before. You can now rock your tunes and customize the sound effects, thanks to the fixed high pass crossover, and the variable low pass crossover along with powerful bass boost.

You can also choose you bass levels using the remote subwoofer control, all the while bridging the channels that allow extreme flexibility and raw power at your hands. Your passion for scintillating music with the extreme sound effects of your dream is fulfilled when you fit the Planet Audio PL2400.4 in your ride, leaving a trail of envious onlookers you pass by on the road. The pulse amplifiers are accompanied by the cool blue illuminated panel strips and stunning logo, adding raw power to the music and making your heart flutter uncontrollably to the steady beats that proceed forth from your music system.

Explore the next level in music with Planet Audio PL2400.4 that comfortably powers your speakers and subwoofers at 2 ohms with an amazing sound effect at increased volumes. The high-level inputs graciously accept speaker output signals, with the matching low-level inputs taking in the preamp output signals leading to additional amps. What’s more is the metal oxide semi-conductor field effect allows switching from full to non-conduction increasing the efficiency of the output to incredible levels. The sound quality is enhanced manifold, thanks to feature specific linear circuitry that increases power output, yet keeps away distortion all the while.

Unit includes: Car Amplifier, Mounting hardware, and Instruction manual

Planet Audio PL2400.4 Class AB 4 Channel Amplifier - 2400 Watts
    Features:
  • Planet Audio PL2400.4
  • 2400 Watts of power
  • Class-AB 2 ohm Stable Full Range Amplifier
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Speaker Impedance ranging from 2 to 8 Ω
  • Signal to noise ratio (A-weighted) 105 dB
  • Channel separation 90 dB
  • 3 stage protection circuits (speaker short, thermal and overload protection)
  • Speaker-level (high-level) inputs
  • Black anodized heatsink
  • Frequency response from 9Hz-50KHz ± 1 dB
  • Subwoofer level control
  • Variable Bass Boost: 0 or 18 dB bass boost
  • Variable low-pass filter 35 Hz to 160 Hz
  • Fixed high-pass filter of 200 Hz
  • Remote Subwoofer Control
  • 2 channel RCA Inputs
    Max Power Output:
  • 4 x 600 W @ 2 ohms (Peak power)
  • 2 x 1200 W @ 4 ohms (Bridged power)
  • 4 x 225 W @ 4 ohms (RMS power)
    Dimensions:
  • 7"W x 15.88"L x 2.26"H
    Warranty duration:
  • Basic warranty: 1 year
More Information
Manufacturer Planet Audio
Part Number PL2400.4
Amplifier Topology Class Class AB
Number of Channels 4 Channel
Amplifier Bridging Bridgable @ 4 ohms
Minimum Impedance in Bridged Mode 4 ohm
Minimum Impedance in Un-Bridged Mode 2 ohm
Strappable Amplifier No
Preamp voltage 4 volts
Speaker level inputs Yes
Gain Control Yes
Bass Knob / Remote Gain Yes
Built in Crossover High-pass, Low-pass
Cooling Fan No
Color Black
Warranty 1 Year
Recommended Power Wire Gauge 4 Gauge
CEA2006 Compliant No
UPC Code 636210105800
Return period 30 days
Exchange period 30 days
