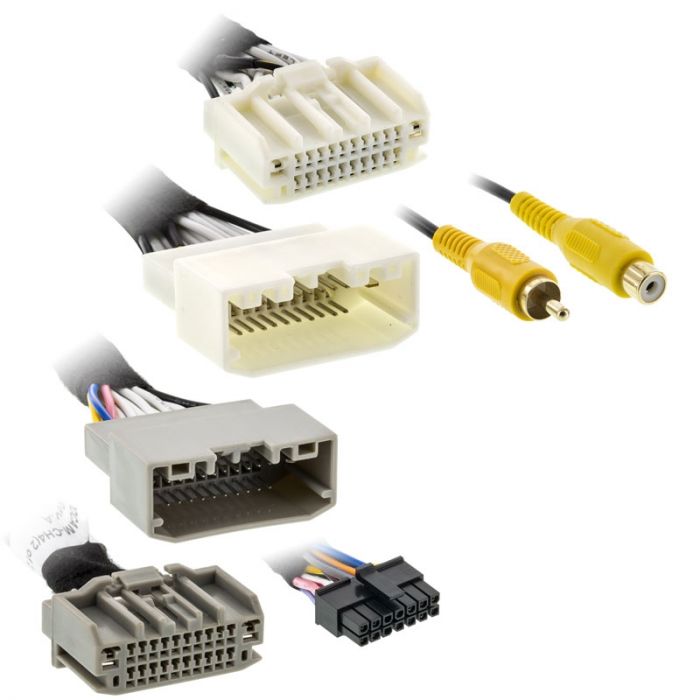

DISCONTINUED - Axxess AX-ADDCAM-CH4 2008 - 2017 Chrysler, Dodge, and Jeep CAN-BUS interface harness
$21.99
Out of stock
SKU
AX-ADDCAM-CH4
Expert Knowledge
Talk to a specialist
- Fits select 2008 - 2017 Chrysler, Dodge, and Jeep vehicles with factory screen
- Add (3) additional cameras to a factory back up camera system (Retains factory camera if equipped)
- Add (4) cameras to a factory radio if vehicle doesn't have a factory back up camera
- Automatically switches to proper camera via triggers
- Uses T-harness to interrupt that factory navigation signal
- Plug and Play installation for reversible installation
Unit includes: Factory navigation interface harness, and Instruction manual
Axxess AX-ADDCAM-CH4 2008 - 2017 Chrysler, Dodge, and Jeep CAN-BUS interface harness
Axxess AX-ADDCAM-CH4 2008 - 2017 Chrysler, Dodge, and Jeep CAN-BUS interface harness
-
Features
- Fits select 2008 - 2017 Chrysler, Dodge, and Jeep CAN-BUS vehicles with factory screen
- Must be used in conjunction with the AX-ADDCAM interface (Sold separately)
- AX-ADDCAM interface is a camera switching interface that will provide up to (3) additional camera inputs to the factory radio, while still retaining the factory camera if equipped
- AX-ADDCAM can also be used if the factory system does not originally come equipped with a backup camera, adding up to (4) cameras for a full car camera system
- AX-ADDCAM can be used along with an aftermarket radio. Aftermarket radio must have a input designated for a backup camera allowing you to add multiple cameras
- High quality RGB converter that converts camera signals to RGB signals that are compatible to factory entertainment systems
- Automatically switches to the backup camera input when the vehicle is shifted into reverse via CAN-BUS signals
- Automatically switches to the left or right side camera input when the vehicle indicator is selected via CAN-BUS signals
- Auto (Reverse to Drive) Video Trigger 4, when installing a front camera. The camera will activate automatically once a reverse-then-drive sequence displaying the front camera and disable once 15 MPH is reached
- Manual camera selection
- Onscreen display shows video input selected while switching
- Interrupts the factory screen connection
- Plug-and-play installation allows conversion of radio back to OEM specifications within minutes
- Programmable 12V 5-amp switched output (configured through the Axxess Updater program)
- (4) Programmable camera control wires (configured through the Axxess Updater program)
- Vehicle speed sense input control
- 4 - RCA video inputs
- Made in the U.S.A.
- Plug and Play installation for quick reversible installation
- ABS plastic for maximum reliability
- Factory OEM quality
- No cutting of factory wiring needed
- Axxess AX-ADDCAM-CH4 2008 - 2017 Chrysler, Dodge, and Jeep CAN-BUS interface harness Instruction manual
- Vehicle Compatibility:
- 2018 - 2010 300
- 2008 - 2014 Challenger
- 2011 - 2013 Durango
- 2007 - 2018 Wrangler
-
Chrysler:
-
Dodge:
-
Jeep:
| Manufacturer | Axxess |
|---|---|
| Part Number | AX-ADDCAM-CH4 |
| Warranty | 1 Year |
| Length | 6 Inch |
| Cable Type | T-Harness |
| Vehicle Brand | Chrysler, Dodge, Jeep |
| Vehicle Model | 300, Challenger, Durango, Wrangler |
| UPC Code | 086429352616 |
| Return period | 30 days |
| Exchange period | 30 days |
