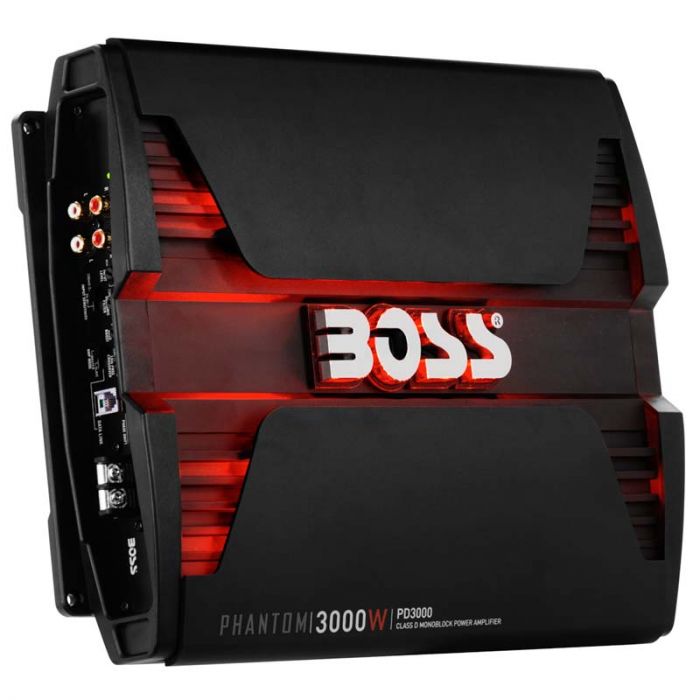

Boss Audio PD3000 Phantom Series 3,000 Watt Class D Monoblock Amplifier

$171.99
Out of stock
SKU
PD3000

Key Features

  • Phantom series Class D monoblock amp
  • Class D 1 Channel
  • 1 Ohm stable mono operation
  • Maximum power output: 3000 watts x 1 channel
  • Variable low-pass filter: 50 Hz - 250 Hz
Unit includes: Car Amplifier, Mounting hardware, and Instruction manual

Boss Audio PD3000 Phantom Series Class D Monoblock Amp (3,000 Watts)
    Features:
  • Phantom series Class D monoblock amp
  • Strapped capable with another PD3000 for a total output of 6000 watts!
  • 1 Ohm stable mono operation
  • Multi-LED back-lit illumination
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Pulse Width Modulated MOSFET power supply
  • Gold plated low level inputs and speaker level inputs
  • Variable low-pass crossover
  • Variable bass boost 0dB - +18dB
  • Includes remote subwoofer level control
  • Signal to Noise Ration: 100 dB
  • Phase control: 0° - 180°
  • Frequency response: 15 Hz - 150 Hz
  • Dimensions: 2.25" (H) x 10.31" (W) x 13" (D)
    Inputs and Outputs:
  • 2 - RCA audio inputs (100mV - 2V)
  • 2 - Speaker level inputs (2V - 8V)
    Max Power Output:
  • 1-Ohms: 3000 watts x 1 channel
  • 2-Ohms: 1500 watts x 1 channel
  • 4-Ohms: 750 watts x 1 channel
    RMS Power Output:
  • 2-Ohms: 1125 watts x 1 channel
  • 4-Ohms: 563 watts x 1 channel
    Built in Crossover:
  • Variable low-pass filter: 50 Hz - 150 Hz
  • Subsonic filter: 15 Hz - 40 Hz
    Dimensions:
  • Overall Dimensions: 2.25” (H) x 13” (D) x 10.31” (W)
    Fuse rating:
  • Recommended Fuse: 30A x 2
More Information
Manufacturer Boss Audio
Part Number PD3000
Amplifier Topology Class Class D
Number of Channels 1 Channel
Total RMS Power at 1 ohm 2,250.00
Total RMS Power at 2 ohm 1,125.00
Total RMS Power at 4 ohm 563.00
Total Peak Power Output 3,000.00 (Watts)
Amplifier Bridging Not Bridgable
Minimum Impedance in Un-Bridged Mode 1 ohm
Strappable Amplifier Yes
Strappable Power Output 6000 Watts
RCA Pre-amp Audio inputs 1 Pair
RCA Pre-amp Audio outputs 1 Pair
Preamp voltage 150 mV - 12 V
Speaker level inputs Yes
Gain Control Yes
Bass Knob / Remote Gain Yes
Built in Crossover Low-pass
Cooling Fan No
Color Black
Warranty 1 Year
Recommended Power Wire Gauge 4 Gauge
CEA2006 Compliant No
UPC Code 791489101219
Return period 30 days
Exchange period 30 days
