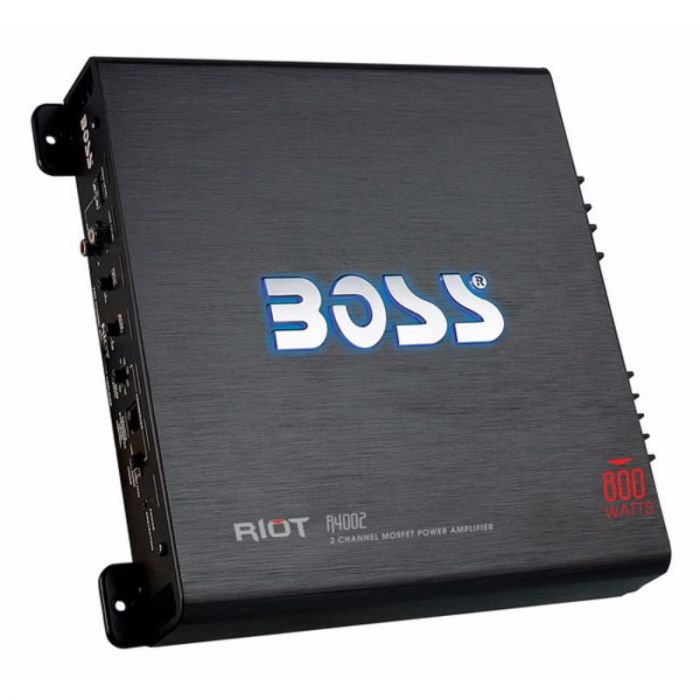

Boss Audio R4002 Riot Series 2 Channel Class AB Full Range Amplifier - 800 Watts
- Boss Audio R4002 Riot Series Class AB Amplifier
- Stable performance at 2 ohms
- RMS Power @ 4 ohms: 2 x 150 Watts
- Versatile amplifier
- 2 Channel RCA Inputs
- Total Power Output of 800 Watts
The attractive Riot Series is an 800 Watts 2 Channel Full Range, Class AB Amplifier generates a maximum of 800W power with a minimum 2 ohm impedance. Full range class AB amplifiers easily power door speakers or subwoofers and have the capability to generate high quality sound with minimal distortion. Class AB amplifiers are extremely linear and have reduced distortion but are not as power efficient as Class D amplifiers. Enjoy superior sound!
This two channel amplifier is capable of being bridged. Bridging channels in an amplifier is a feature where you combine the output of two channels to power a single or dual subwoofer. The MOSFET or Metal Oxide Semiconductor Field Effect Transistor which is used to to create the high current power supply and is far superior when compared to other FETs. The built in thermal protection circuits turns off and lets the amplifier cool down to prevent damage. Additional features like the Speaker level inputs, Subwoofer level control, Variable gain control, Variable bass boost, Fixed High-Pass Filter and Variable low pass filter provides the user with a clean input signal and the to customize and tune into your audio system.
Unit includes: Car Amplifier, Mounting hardware and instruction manual.Boss Audio R4002 Riot Series 2 Channel Class AB Full Range Amplifier - 800 Watts
- Features:
- Boss Audio R4002, Riot 800 Watts 2 Channel Full Range Amplifier
- Exhilarating performance with Class AB amplifier
- Stable 2 ohms performance
- Back-lit Illuminated BOSS logo in cool blue
- Versatile and Bridgeable Amplifier
- Robust MOSFET Power Supply
- Triple Protection with Thermal, overload and short protection
- High and Low level Inputs
- Fixed High-Pass Filter
- Variable Low-Pass Filter
- Variable levels of Bass Boost
- Remote Subwoofer Controller
- Blue Back-lit Illuminated BOSS Logo
- Performance:
- Total Power Output: 800 Watts
- Peak Power @ 2 ohms: 2 x 400 Watts
- Peak Power @ 4 ohms: 2 x 200 Watts
- Bridged Power @ 4 ohms: 1 x 800 Watts
- RMS Power @ 4 ohms: 2 x 150 Watts
- Bridged RMS Power @ 4 ohms: 1 x 600 Watts
- Total RMS Power @ 4 ohms: 2 x 150 Watts
- Speaker Impedance: 2 to 8 ohms
- (Total Harmonic Distortion) T.H.D level: 0.01%
- Channel separation ≥ : 90 dB
- 102 dB of Signal to Noise ratio (A-Weighted)
- 9 Hz to 50 kHz ±1 dB of Frequency Response
- Connections:
- 2 Channel RCA with High Level Inputs
- Controls:
- Variable Bass Boost Variable to 18 dB
- Subwoofer Level Controller
- Low Pass Filter: 35 Hz - 160 Hz
- High Pass Filter: Fixed 200 Hz
- Dimensions of product:
- Length of 10.72”
- Width of 10.44”
- Height of 2.25”
- Warranty duration:
- Standard Warranty: 1 year
Manufacturer | Boss Audio |
---|---|
Part Number | R4002 |
Amplifier Topology Class | Class AB |
Number of Channels | 2 Channel |
Amplifier Bridging | Bridgable @ 4 ohms |
Minimum Impedance in Bridged Mode | 4 ohm |
Minimum Impedance in Un-Bridged Mode | 2 ohm |
Strappable Amplifier | No |
Preamp voltage | 4 volts |
Speaker level inputs | Yes |
Gain Control | Yes |
Bass Knob / Remote Gain | Yes |
Built in Crossover | High-pass, Low-pass |
Cooling Fan | No |
Color | Black |
Warranty | 1 Year |
Recommended Power Wire Gauge | 4 Gauge |
CEA2006 Compliant | No |
UPC Code | 791489115292 |
Return period | 30 days |
Exchange period | 30 days |
