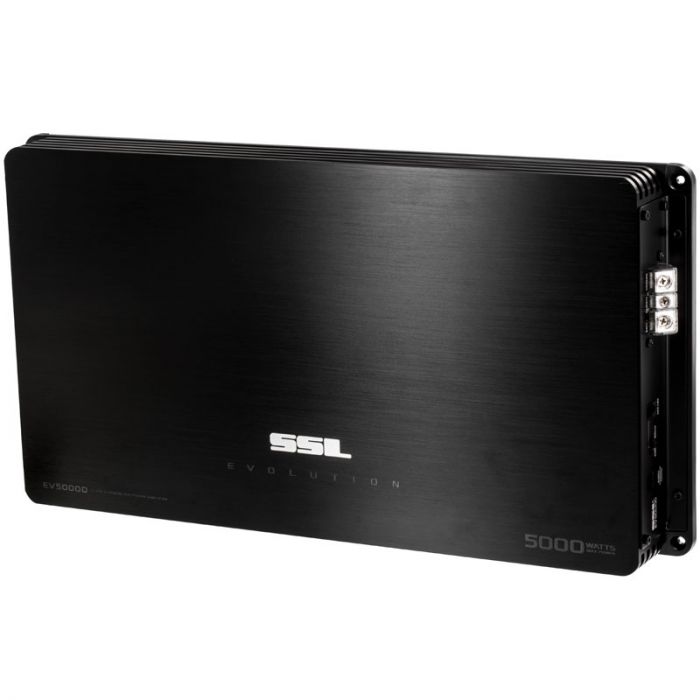

Soundstorm EV5000D Evolution Series Class D Mono Amplifier 5000W MAX Power
- 4 Ohms: 1800 Watts x 1
- Thermal Overload & Speaker's Short Protection
- Amplifier Class D
- Total Power: 5000 Watts
- Quick Overview
- EVOLUTION Series Class D Mono Amplifier (5,000W max; 2,200W x 1 @ 4 Ohm; 2,500W x 1 @ 2 Ohm)
- UPC: 791489112512
- Weight: 16.65 lbs.
- Dimensions: 22.8" L x 12.35" W x 0" H
- Product Description
- 1 Ohm stable mono-block
- Strapping capability: strap 2 amps together for twice the power (2 Ohm stable)
- Variable low pass filter: 50 Hz–150 Hz
- Variable subsonic filter: 15 Hz–40 Hz
- Variable 0–18 dB bass boost
- Phase shift selector: 0 or 180
- Variable input gain control
- Input sensitivity selector
- Power & protection LED indicators
- Thermal, overload & speaker short protection
- RCA line level inputs
- RCA line outputs for system building
- Chrome-plated RCA connectors & screw terminals
- Remote subwoofer level control
- Freq resp: 20 Hz–250 Hz (±3 dB)
- Signal-to-noise ratio: 105 dB
- THD @ RMS output: 0.01%
- Dim: 19.5"L x 10"W x 2.25"H
- 5,000W max
- 2,200W x 1 @ 4 Ohm
- 2,500W x 1 @ 2 Ohm
Manufacturer | Sound Storm Laboratories |
---|---|
Part Number | EV5000D |
Amplifier Topology Class | Class D |
Number of Channels | 1 Channel |
Total RMS Power at 1 ohm | 3,750.00 |
Total RMS Power at 2 ohm | 1,875.00 |
Total RMS Power at 4 ohm | 938.00 |
Total Peak Power Output | 5,000.00 (Watts) |
Strappable Amplifier | No |
RCA Pre-amp Audio inputs | 1 Pair |
Speaker level inputs | Yes |
Gain Control | Yes |
Built in Crossover | Band-pass, Low-pass |
Cooling Fan | No |
Warranty | 6 Years |
Recommended Power Wire Gauge | 0 Gauge |
CEA2006 Compliant | No |
UPC Code | 791489112512 |
Return period | 30 days |
Exchange period | 30 days |
