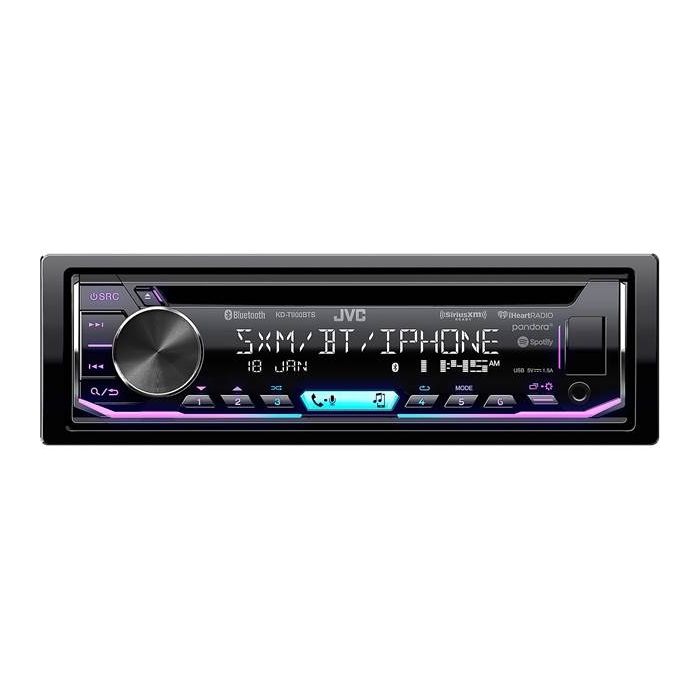

JVC KD-TD90BTS Single DIN Bluetooth CD Receiver with USB and SiriusXM Ready

Description

Unit includes: Single DIN Stereo, Wiring harness, Mounting hardware, Bluetooth microphone and Instruction manual

JVC KD-TD90BTS Single DIN Bluetooth CD Receiver

Features:

Single DIN In-Dash CD bluetooth receiver
Full detachable face-plate for extra security
2-Line VA(Vertical Alignment) LCD Display with animation effects
Variable Color Button Illumination
Music Sync Effect changes Illumination patterns according to the rhythm of the music
Low Battery Information: When the battery of the connected Bluetooth device runs low, a beep sound is heard and “LOW BATTERY” appears on the receiver
SiriusXM Radio ready with SXV300V1 Sirius XM Connect Satellite Radio Tuner
JVC RM-RK52 Optional Remote Control Sold Separately
Front USB connection
Built in Bluetooth with A2DP for wireless audio streaming
2 Phones Full-Time Connection
iPhone®/Android™ Bluetooth Automatic Pairing
Android Open Accessory Protocol (AOA2) and Android™ Music Playback via USB
AM/FM radio tuner
Spanish Text Display Compatible
JVC Streaming DJ: Connect up to 5 Bluetooth devices simultaneously
Voice control for iPhone, tell your car stereo who to call or what station to listen to
iPod and iPhone control with standard USB to lightning interface cable, simply connect your iPhone or iPod touch and access your entire music library
CEA Compliant Amplifier Power Output: 4 channels x 50 watts peak and 4 channels x 22 watts RMS
MP3, WAV, WMA & FLAC playback from CD's and USB
Displays CD text and MP3 ID3 Tag including title, artist & album
Easily accessible with wireless remote and graphic touch screen
Pandora, iHeart Radio and Spotify control
JVC Remote app control
K2 Technology for Enhanced Digital Sound Quality

Audio features:

Plays CD, CD-R, CD-RW, MP3, WAC, WMA and FLAC
Electronic shock protection with built in buffer
Controls: Volume, Fader, Bass, Treble, Balance
13-band customizable Graphic equalizer with 9 presets
Variable subwoofer level control with selectable Low-Pass and High-Pass digital crossover filter
Time Alignment
Space Enhancement
Sound Response
Sound Lift
Volume Lift EQ
Time Alignment
CD text information, display artist and song information
MP3 ID3 tag information, display artist and song information
24-bit Digital Analog Converter (DAC) to enhance your MP3/WMA playback
Loudness, Bass Boost, drvnEQ

Tuner features:

Includes AM & FM tuner with 24 preset stations memory
Best Station Memory (BSM)
RDS (Radio data service) Tuner

Bluetooth features:

Integral Bluetooth technology facilitates convenient hands-free phone calls and supports A2DP & AVRCP
A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
SPP: Serial Port Profile provides a wireless replacement for RS-232 based serial communications
PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list of the mobile phone directly from the car stereo
HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
External microphone for optimal placement
2 Phones Full-Time Connection
Bluetooth 2.0+ certified
Compatible with most Bluetooth phone that support Bluetooth 2.0 and above

Inputs and outputs:

2 - 2.5V preamp outputs (front, rear and subwoofer)
1 - USB front connection accepts up to a 32Gb
1 - Front 3.5mm Audio connection for connection to multiple devices
1 - Rear Bluetooth Microphone input
1 - Steering wheel control input requires ASWC steering wheel interface

Dimensions:

Single DIN chassis
Dimensions: 7-3/16"W x 6-1/4"D x 2-1/8"H

Specifications

More Information
Manufacturer	JVC
Part Number	KD-T900BTS
Chassis Size	Single DIN
Illumination color	Full Color
Faceplate features	Detachable face plate
Built in Bluetooth	Built in Bluetooth
NFC (Near Field Communication)	No
HD Radio	No
Radio Data Service - RDS	Yes
Satellite Radio	Sirius XM Ready
USB input	Yes
SD Card input	No
Audio Formats	AAC, FLAC, Mpeg-3, WAV, WMA
RCA Pre-amp Audio outputs	2 Pairs (Front, Rear/Sub)
Preamp voltage	2 volts
Steering Wheel Control	Yes, requires external module
Built in Crossover	High-pass, Low-pass
Wireless Remote Control	Optional
Warranty	1 Year
UPC Code	046838078538
Return period	30 days
Exchange period	30 days
