DISCONTINUED - Kenwood KDC-122U Car Stereo CD Receiver with USB and Aux-In

DISCONTINUED - Kenwood KDC-122U Car Stereo CD Receiver with USB and Aux-In

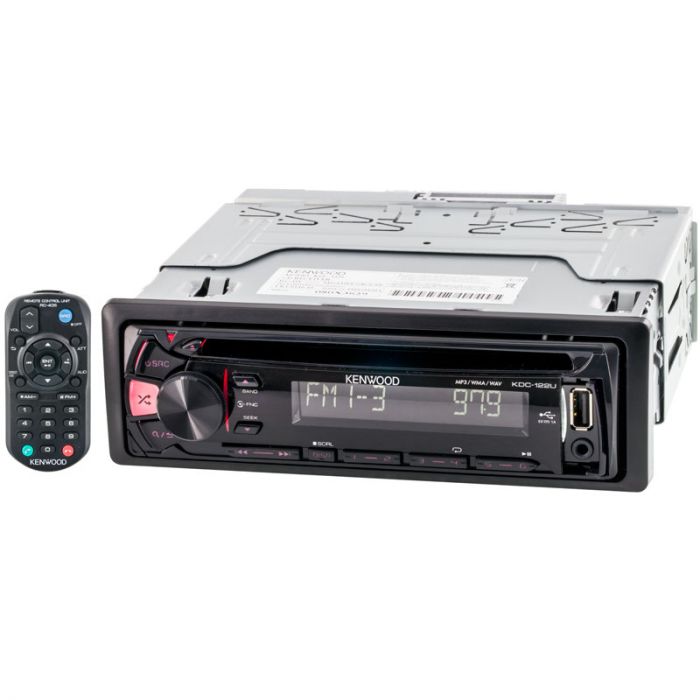

Kenwood KDC-122U Car Stereo CD Receiver with USB and Aux-In - Main

More Views

Free Shipping on orders $99+

Overall Rating 0 (Based on 0 reviews)

Kenwood KDC-122U Product Highlights

  • Android Open Accessory 2.0
  • CD Slot
  • Drive EQ 3 band equalizer
  • Front AUX and USB Interface with slide protection cover
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist


Unit includes: Single DIN Stereo, Wiring harness, Mounting hardware, and Instruction manual

Kenwood KDC-122U Car Stereo CD Receiver with USB and Aux-In

  • Single DIN In-Dash CD receiver
  • Full detachable face-plate for extra security
  • Multi-Segmented 13 Digital 1 Line LCD Display
  • Red button illumination for perfect matching of your factory button color
  • Dimmer and brightness control
  • AM/FM tuner
  • Mosfet Power amplifier with Output: 4 channels x 50 watts Peak and 4 channels x 22 watts RMS
  • Displays CD text and MP3 ID3 Tag including title, artist & album
  • Steering wheel control input
  • Front USB input for thumb-drives

Media playback features:
  • Plays CD, CD-RW, CD-R, MP3, WMA, AAC, WAV, and FLAC files
  • Electronic shock protection with built in buffer
  • MP3/WMA/iTunes AAC/FLAC Audio Playback on CD/USB
  • MP3 ID3 tag information, display artist and song information
  • Linear PCM decoder for excellent digital audio quality
  • FLAC Audio Playback for high definition audio downloads (Up to 48kHz/16bit)

Audio features:
  • 3-band parametric equalizer with 8 preset and custom options (Drive EQ / Natural / Rock / Pops / Easy / Powerful / User / Jazz)
  • Manual EQ with Bass (60Hz / 80Hz / 100Hz / 200Hz) ±8dB, Mid (500Hz / 1.0kHz / 1.5kHz / 2.5kHz) ±8dB, and Treble adjustments (10kHz / 12.5kHz / 15kHz / 17.5kHz) ±8dB
  • Tweeter High-Pass filter with variable slopes and crossover frequencies (Adjustable from 1 kHz to 12.5 kHz) and (Adjustable left and right gain from -6dB - 0dB
  • Subwoofer output with selectable Low-Pass digital crossover filter (85Hz / 120Hz / 160Hz)
  • Subwoofer phase control 0° - 180°
  • Speaker size setup for door speakers (4" / 5" / 6" / 6x9")
  • Boost bass with 6 levels Level1 / Level2 / Level3 / Off
  • Sound reconstruction restores digital files
  • Loudness function (Boost bass and upper frequencies)
  • Drive EQ boosts specific frequencies in the audio signal to compensate the negative impact of road noise

Tuner features:
  • Includes AM & FM tuner with 24 preset stations memory
  • RDSB (Radio data service) Tuner

Inputs and outputs:
  • 1 - 2.5V preamp outputs (Rear/Subwoofer)
  • 1 - 3.5mm front audio input for connection to external source
  • 1 - Front USB connection
  • 1 - Steering wheel control input requires ASWC steering wheel interface

  • Single DIN chassis
  • Dimensions: 7"W x 6-1/4"D x 2"H

Technical Specifications

Manufacturer Kenwood
Part Number KDC-122U
Chassis Size Single DIN
Illumination color Full Color
Faceplate features Detachable face plate
Built-in DVD Player No
Disc Playback CD
Anti-Shock No
Dual Zone Control No
LCD Screen Size No
Native Screen Resolution No
Widescreen Display No
Touchscreen No
Swivel Screen No
Built in Bluetooth No
NFC (Near Field Communication) No
HD Radio Yes
Radio Data Service - RDS Yes
Satellite Radio No
iPod Audio Connection No
iPod Video Connection No
Front mounted auxiliary input 3.5 mm audio input
Front camera input No
Back up camera input No
Audio Video inputs 1 Audio Input
Audio Video Outputs No
USB input Yes
SD Card input No
MP3 Playback No
Audio Formats WAV, WMA
Pandora Streaming No
Smartphone Compatible No
Smartphone Technology No
Navigation No
RCA Pre-amp Audio outputs 1 Pair
Preamp voltage 2 volts
Steering Wheel Control Input No
Built in Crossover No
Wireless Remote Control No
Warranty 1 Year
UPC Code 019048209221
