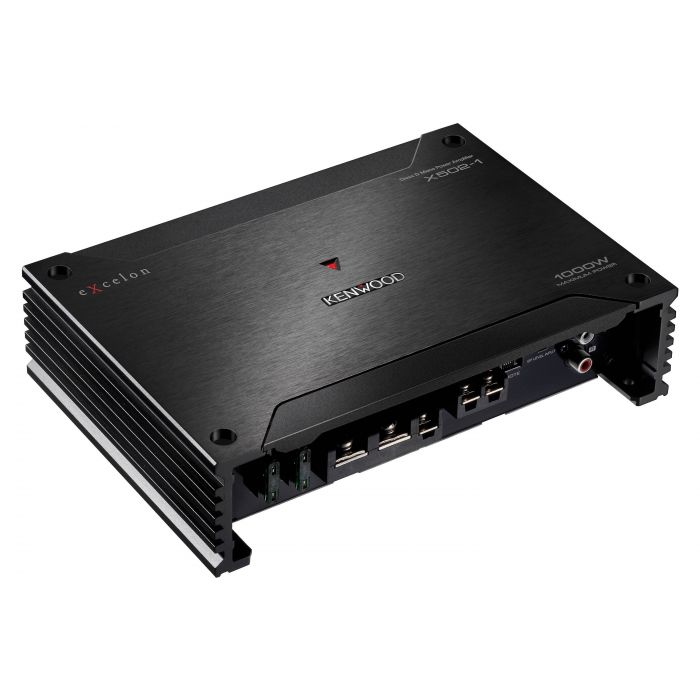

Kenwood eXcelon X502-1 X-Series 1,000W Class-D Monoblock Power Amplifier
$267.99
Out of stock
SKU
X502-1
Expert Knowledge
Talk to a specialist
- 1,000W Class-D Monoblock Power Amplifier
- 4 ohms: 300 watts x 1 channel
- 2 ohms: 500 watts x 1 channel
- Power MOS-FET Switching Power Supply
- Built in Venting Fan
- Output Coil with Magnetic Shield
- Sliding Terminal Cover
- Signal Sensing Turn-on
- Cast Aluminum Heat Sink Design
- CEA-2006 Compliant
The Unit Includes: Class-D Mono Power Amplifier, Speaker Input Level Cable, Hardware, Instruction Manual
Kenwood eXcelon X502-1 X-Series 1,000W Class-D Monoblock Power Amplifier
Features
Max Power Output
RMS Power Output
Inputs and Outputs
Dimensions
Bass Boost
Kenwood eXcelon X502-1 X-Series 1,000W Class-D Monoblock Power Amplifier
Features
- 1,000W Class-D Monoblock Power Amplifier
- Power MOS-FET Switching Power Supply
- Output Coil with Magnetic Shield
- Sliding Terminal Cover
- Variable Gain Circuit for Improved Signal to Noise Ratio
- Optional Kenwood KCA-RC01A wired remote level control allows you to easily adjust the subwoofer volume wired remote level control allows you to easily adjust the subwoofer volume
- Speaker Level Input for easy integration into existing factory audio systems
- Cast Aluminum Heat Sink Design for excellent heat dissipation
- Signal Sensing Turn-on will automatically turn amplifier on if remote turn on signal is not present or can't be found
- Removable Terminal Covers to conceal ugly wiring
- Line Output Terminals for for easy daisy chaining
- Built in Variable Low-Pass Filter (50Hz-200Hz, -24dB/oct)
- Signal to Noise Ratio: 100dB (Reference: Rated Power into 4 Ohms at 14.4V)
- Frequency Response: 20Hz-200Hz (+0dB, -3dB)
- Speaker Impedance: 4Ω (2Ω to 8Ω allowable)
- CEA-2006 Compliant
Max Power Output
- 1000 watts x 1 channel
RMS Power Output
- 4 ohms: 300 watts x 1 channel
- 2 ohms: 500 watts x 1 channel
Inputs and Outputs
- Battery & Ground: Screw Type Terminal Block (Nickel Plated) (M6)
- Line-in: RCA (Nickel Plated)
- Line Out: RCA (Nickel Plated)
- Speaker Input: JST Connector
- Speaker Output: Screw Type Terminal Block (Ni) (M4)
Dimensions
- (W) 8-3/8" x (H) 2-1/16" x (D) 5-7/8"
Bass Boost
- Built in Bass Boost Control (40Hz, 0dB-+18dB)
| Manufacturer | Kenwood |
|---|---|
| Part Number | X502-1 |
| Amplifier Topology Class | Class D |
| Number of Channels | 1 Channel |
| Total RMS Power at 2 ohm | 500.00 |
| Total RMS Power at 4 ohm | 300.00 |
| Strappable Amplifier | No |
| RCA Pre-amp Audio inputs | 1 Pair |
| Speaker level inputs | Yes |
| Built in Crossover | High-pass, Low-pass |
| Cooling Fan | No |
| Color | Black |
| Warranty | 1 Year |
| Recommended Power Wire Gauge | 8 Gauge |
| CEA2006 Compliant | No |
| UPC Code | 019048226273 |
| Return period | 30 days |
| Exchange period | 30 days |
