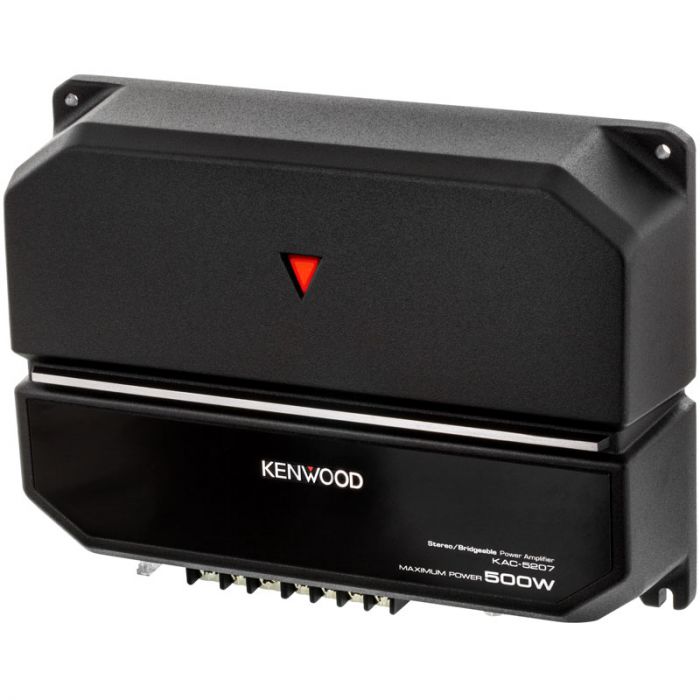

Kenwood KAC-5207 Class-AB Power Amplifier

100 % of 100
Out of stock

Key Features

  • Class AB Stereo/Bridgeable amplifier
  • 2 or 1 channel operation
  • Power MOS-FET Switching Power Supply
  • Signal Sensing Turn-on
  • 2 Ohms Stereo Load Capability
  • 70 Watts x 2 (4 ohms)
  • 85 Watts x 2 (2 ohms)
Kenwood KAC-5207 Class-AB Power Amplifier

  • Class AB amplifier
  • 2 or Mono channel operation
  • 2 Ohms Stereo Load Capable
  • Power MOS-FET Switching Power Supply
  • Speaker Level Input
  • Signal Sensing Turn-on
  • Cast Aluminum Heat Sink Design
  • Built in Low-Pass Filter (80Hz, -18dB/oct)
  • Signal to Noise Ratio: 100dB (Reference: Rated Power into 4 Ohms at 14.4V)
  • Frequency Response: 20Hz-50kHz (+0dB, -3dB) Class-AB
  • Input Impedance: 10k ohm
  • Speaker Impedance: 4Ω (2Ω to 8Ω allowable), Bridged connection 4Ω to 8Ω Allowable
  • Weight (kg): 1.7 (kg)/3.4 (lbs.)
  • CEA-2006 Compliant

Max Power Output
  • 500 Watts

RMS Power Output
  • 70 Watts x 2 (4 ohms)
  • 85 Watts x 2 (2 ohms)

Inputs and Outputs
  • Battery and Ground: Screw Type Terminal Block (M4)
  • Speaker Output: Screw Type Terminal Block (M4)
  • Line-in: RCA
  • Speaker Input: JST Connector

  • 230mm x 56mm x 167mm
More Information
Manufacturer Kenwood
Part Number KAC-5207
Amplifier Topology Class Class AB
Number of Channels 2 Channel
Amplifier Bridging Bridgable @ 4 ohms
Minimum Impedance in Bridged Mode 4 ohm
Minimum Impedance in Un-Bridged Mode 2 ohm
Strappable Amplifier No
RCA Pre-amp Audio inputs 1 Pair
Preamp voltage 5 volts
Speaker level inputs Yes
Gain Control Yes
Bass Knob / Remote Gain No
Built in Crossover Low-pass
Cooling Fan No
Color Black
Warranty 1 Year
Recommended Power Wire Gauge 8 Gauge
CEA2006 Compliant No
UPC Code 019048219008
Return period 30 days
Exchange period 30 days
