Power Acoustik EG2-1400 2 Channel Class AB Amplifier - 1400 Watts

Power Acoustik EG2-1400 2 Channel Class AB Amplifier - 1400 Watts

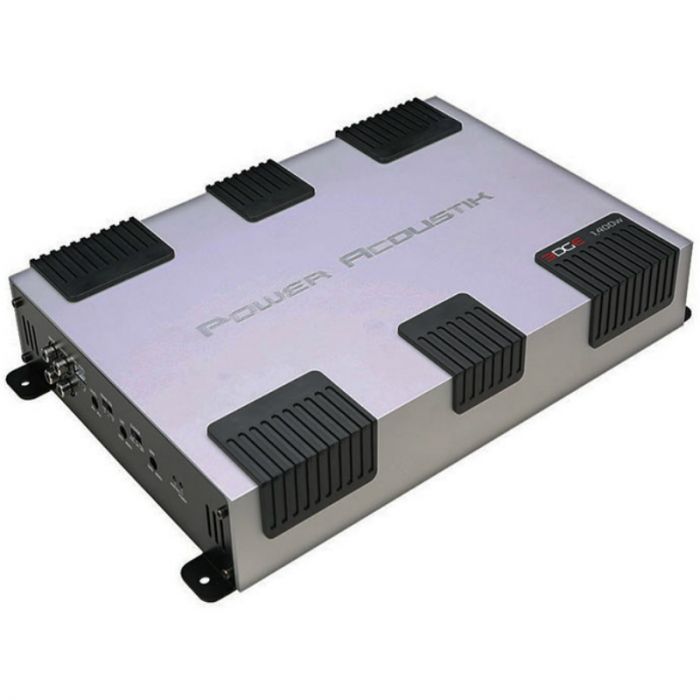

Power Acoustik EG2-1400 Car Stereo Amplifier



More Views

Power Acoustik
Free Shipping on orders $99+

Overall Rating 0 (Based on 0 reviews)

Power Acoustik EG2-1400 Product Highlights

  • Power Acoustik EG2-1400 Class AB 2-Channel Amplifier
  • Designed as a dedicated full range audio amplifier
  • 2 Ohm stable in stereo and 4 ohm stable in mono
  • 700 Watts RMS x 1 channels @4-Ohms
  • 175 Watts RMS x 2 channels @4-Ohms
  • RCA level inputs
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Buy everything you need as a package and SAVE!

Overview

The EG2-1400 is an elegantly designed amplifier with 1,400 watts of maximum power output. It provides stereo output with possible impedances of 2-ohms and 4-ohms. The MOSFET Power Supply houses a robustly constructed PCB with PWM. The internal circuitry is protected from direct shortages, thermal hazards and overload of power. If you have a factory stereo system, you can further enhance its audio levels with the High/Speaker level that accepts the speaker signal and Low level RCA inputs which accepts signal from the pre-amp outputs of the source unit.

4 Gauge Power wiring and 8 Gauge speaker wire outputs enables a higher and stable flow of current. Enjoy the pure audio quality with variable 12dB High and Low Pass crossovers.

Unit includes: Car Amplifier, Mounting hardware, and Instruction manual

Power Acoustik EG2-1400 2-Channel Class AB Amplifier - 1400 Watts
    Features:
  • Power Acoustik EG2-1400 Class AB 2-Channel Edge Series Amplifier
  • Designed as a dedicated full range audio amplifier for door speakers or bridged for subwoofers
  • Robust MOSFET Power Supply with Military grade PCB with PWM
  • 2 ohms stable in stereo and 4 ohm stable in mono for high power output
  • 3-way protection circuitry (Thermal, Overload, and Speaker short protection)
  • High Speaker Level and Low Level RCA Input
  • Variable input gain control with low level input voltage up to 6 Volts
  • Nickel plated low level RCA inputs
  • Variable low-pass crossover: 50 - 400Hz, 12 dB/octave
  • Variable high-pass crossover: 50 - 400Hz, 12 dB/octave
  • Variable bass boost: 0dB / +6dB / +12dB
  • Gain Control
  • Color: Satin Silver Chassis
    Inputs and Outputs:
  • 2 - Nickel-plated RCA low level inputs (250 mV - 6 V)
  • 2 - Nickel-plated RCA level outputs
  • Input sensitivity is 250 mV to 6V
  • 8 AWG to 18 AWG speaker connections
  • 4 AWG to 8 AWG power connections
    Max Power Output:
  • 4-Ohms Bridged: 1,400 watts x 1 channel
  • 2-Ohms Stereo: 700 watts x 2 channel
  • 4-Ohms Stereo: 350 watts x 2 channel
    RMS Power Output:
  • 4-Ohms Bridged: 700 watts x 1 channel
  • 2-Ohms Stereo: 350 watts x 2 channel
  • 4-Ohms Stereo: 175 watts x 2 channel
    Built in Crossover:
  • Variable low-pass crossover: 50 - 400Hz, 12 dB/octave
  • Variable low-pass crossover: 50 - 400Hz, 12 dB/octave
  • All Pass
    Dimensions:
  • Overall Dimensions: 2.25” (H) x 9” (D) x 12.75” (W)
    Current consumption:
  • Recommended Fuse: 90 amp

Technical Specifications

Manufacturer Power Acoustik
Part Number EG2-1400
Amplifier Topology Class Class AB
Number of Channels 2 Channel
Total Peak Power Output 1001 - 1500 watts
Total RMS Power Output 700 watts
Amplifier Bridging Bridgable @ 4 ohms
Minimum Impedance in Bridged Mode 4 ohm
Minimum Impedance in Un-Bridged Mode 2 ohm
Strappable Amplifier No
Strappable Power Output No
RCA Pre-amp Audio inputs No
RCA Pre-amp Audio outputs 1 Pair
Preamp voltage 6 volts
Speaker level inputs Yes
Gain Control Yes
Bass Knob / Remote Gain No
Built in Crossover High-pass, Low-pass
Cooling Fan No
Color Silver
Warranty 1 Year
Recommended Power Wire Gauge 4 Gauge
UPC Code 709483052765
