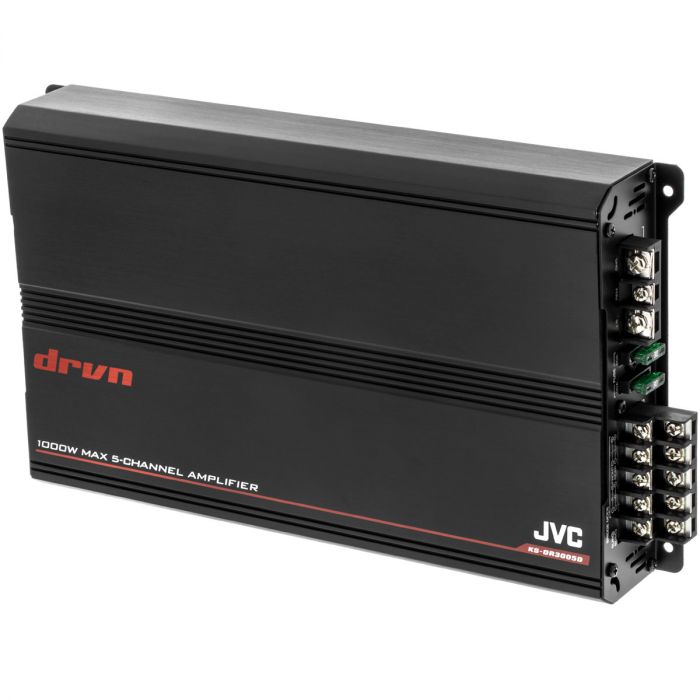

JVC KS-DR3005D 5-Channel Class-D Amplifier
Special Price
$249.99
Regular Price
$419.99
In stock
Only 1 left
SKU
KS-DR3005D
Expert Knowledge
Talk to a specialist
- 5-Channel Power Amplifier
- 5 / 4 / 3 channel operation
- 4 Ohms: 50W RMS x 4 + 200W RMS x 1
- 2 Ohms: 65W RMS x 4 + 300W RMS x 1
- Bridged: 130W RMS x 2 bridged at 4 ohms + 300WRMS x 1 at 2 ohms
- Pulse Width Modulated MOSFET power supply
- 5 Channel preamp RCA inputs
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- LED power (green) and protect (red) indicators
- CEA-2006 Compliant
Unit Includes: Power Amplifier, Mounting hardware, and Instruction manual
JVC KS-DR3005D 5-Channel Class-D Amplifier
JVC KS-DR3005D 5-Channel Class-D Amplifier
- Features
- Class Damplifier for excellent fidelity and sound quality
- Can operate as a 5 / 4 / 3 Channel operation for ultimate system flexibility
- Power MOS-FET Switching Power Supply
- Terminal Cover to disguise inputs and outputs and all adjustments
- 2 Ohms Load Capability in Stereo mode
- Cast Aluminum Heat Sink Design
- Built in Variable High-Pass Filter Channels 1 - 2 - 3 - 4 (50 Hz - 200 Hz, -12dB/oct)
- Built in Variable Low-Pass Filter Channels 5 (50 Hz - 200 Hz, -24dB/oct)
- Built in Bass Boost Channels 5 (40 Hz, 0dB - 18dB)
- Frequency Response: 5Hz - 50kHz (+0dB, -3dB)
- Signal to Noise Ratio: 100dB (Reference: Rated Power into 4Ohms at 14.4V)
- Input Impedance: 10k ohm
- Speaker Impedance: 4Ω (2Ω to 8Ω allowable), Bridged connection 4Ω to 8Ω Allowable
- CEA-2006 Compliant
- RMS Power Output
- 4 Ohms: 50W RMS x 4 + 200W RMS x 1
- 2 Ohms: 65W RMS x 4 + 300W RMS x 1
- Bridged: 130W RMS x 2 bridged at 4 ohms + 300W RMS x 1 at 2 ohms
- Inputs and Outputs
- Battery & Ground: Screw Type Spade Connector
- Speaker Output: Screw Type Spade Connector )
- Line-in: 3 sets RCA Inputs
- Speaker Level Input: High Level Harness Connection
- Dimensions
- 340mm x 52mm x 185mm
- 13-7/16"W x 2-1/16"H x 7-5/16"D
| Manufacturer | JVC |
|---|---|
| Part Number | KS-DR3005D |
| Amplifier Topology Class | Class D |
| Number of Channels | 5 Channel |
| RMS Output per Channel (x4 at 4 ohms) | 50.00 Watts |
| Amplifier Bridging | Bridgable @ 4 ohms |
| Minimum Impedance in Bridged Mode | 4 ohm |
| Strappable Amplifier | Yes |
| RCA Pre-amp Audio inputs | 3 Pairs (Front, Rear, Subwoofer) |
| Speaker level inputs | Yes |
| Cooling Fan | No |
| Color | Black |
| Warranty | 1 Year |
| Recommended Power Wire Gauge | 8 Gauge |
| CEA2006 Compliant | Yes |
| UPC Code | 046838073489 |
| Return period | 30 days |
| Exchange period | 30 days |
