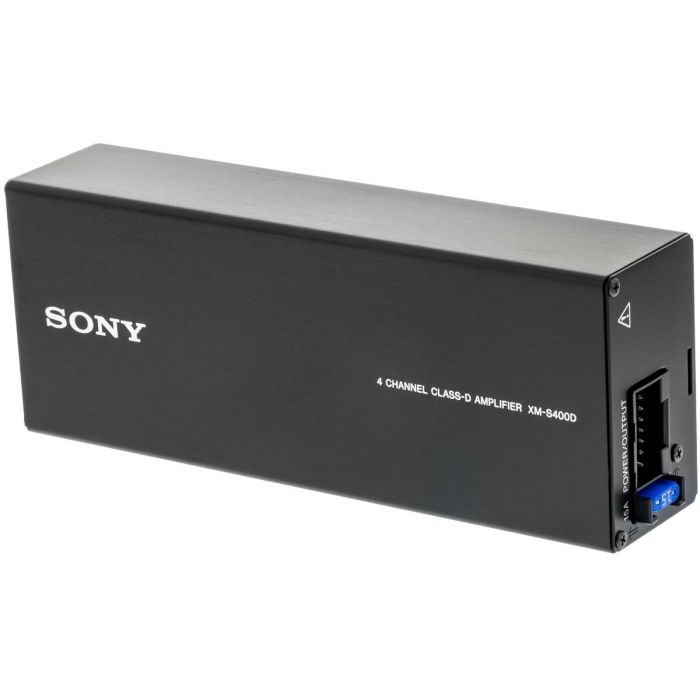

Sony XM-S400D Compact 400 Watt Class D 4-Channel Amplifier
$149.99
In stock
SKU
XM-S400D
Expert Knowledge
Talk to a specialist
- 4-Channel Car Amplifier
- 45 Watt x 4 at 4 ohms
- Super compact design
- Class FD Design Offers Efficiency and High-Quality Sound
- High and low level inputs with auto turn on
Unit includes: 4-Channel power amplifier, Mounting hardware, and Instruction manual
Sony XM-S400D Compact 180 Watt Class D 4-Channel Amplifier
RMS Power Rating:
Sony XM-S400D Compact 180 Watt Class D 4-Channel Amplifier
- Features:
- 400 Watts Max Power
- Pulse Width Modulated MOSFET Power supply
- Compact Design for Versatile Installation Options without compromising sound quality
- Class-D design for excellent sound quality and excellent efficiency
- CEA-2006 Compliant amplifier for true power output
- 3-Way Protection circuit senses internal temperature and automatically lowers input level to prevent heat damage. Short circuit protection prevent damage when speaker leads are shorted. Overload protection prevent damage from low impedance or blown woofers.
- Fixed Low Pass filter: 120Hz at 12dB per octave
- Fixed High Pass filter: 120Hz at 12dB per octave
- Speaker level inputs allow you to connect this amplifier stereo system that do not have RCA outputs. The is very typical for OEM head-units and you can now avoid adding separate line level converters.
- Remote turn on by auto signal sense, so you do not need to run a remote turn on lead with OEM head-units
- 4 channel RCA inputs accepts up to 6 volt input signals
- 4 channel speaker level inputs accepts up to 8 volt input signals
- Gold plated terminals for all connections
- Frequency Response: 20Hz to 20KHz (Channels 1 - 4)
- Total Harmonic Distortion (4 Ω): < 0.08% (1kHz)
- Dimensions: 6-1/2" (W) x 1-1/2" (H) x 2-1/2" (D)
RMS Power Rating:
- 4 ohms: 45 watts x 4 channels
- 2 ohms: 45 watts x 4 channels
- Maximum Dynamic Power Rating:
- 4 ohms: 100 watts x 4 channels
| Manufacturer | Sony |
|---|---|
| Part Number | XM-S400D |
| Amplifier Topology Class | Class D |
| Number of Channels | 4 Channel |
| Total RMS Power at 2 ohm | 180.00 |
| Total RMS Power at 4 ohm | 180.00 |
| RMS Output per Channel (x4 at 4 ohms) | 45.00 Watts |
| Total Peak Power Output | 400.00 (Watts) |
| Amplifier Bridging | Not Bridgable |
| Minimum Impedance in Bridged Mode | Not Bridgeable |
| Minimum Impedance in Un-Bridged Mode | 2 ohm |
| Strappable Amplifier | No |
| RCA Pre-amp Audio inputs | 2 Pairs (Front, Rear) |
| RCA Pre-amp Audio outputs | None |
| Preamp voltage | 100 mV - 8 V |
| Speaker level inputs | Yes |
| Gain Control | Yes |
| Bass Knob / Remote Gain | No |
| Built in Crossover | High-pass, Low-pass |
| Cooling Fan | No |
| Color | Black |
| Warranty | 1 Year |
| Recommended Power Wire Gauge | 10 Gauge |
| Overall Height | 1.50 inches |
| Overall Length | 6.50 inches |
| Overall Width | 2.50 inches |
| CEA2006 Compliant | Yes |
| UPC Code | 027242894570 |
| Return period | 30 days |
| Exchange period | 30 days |
