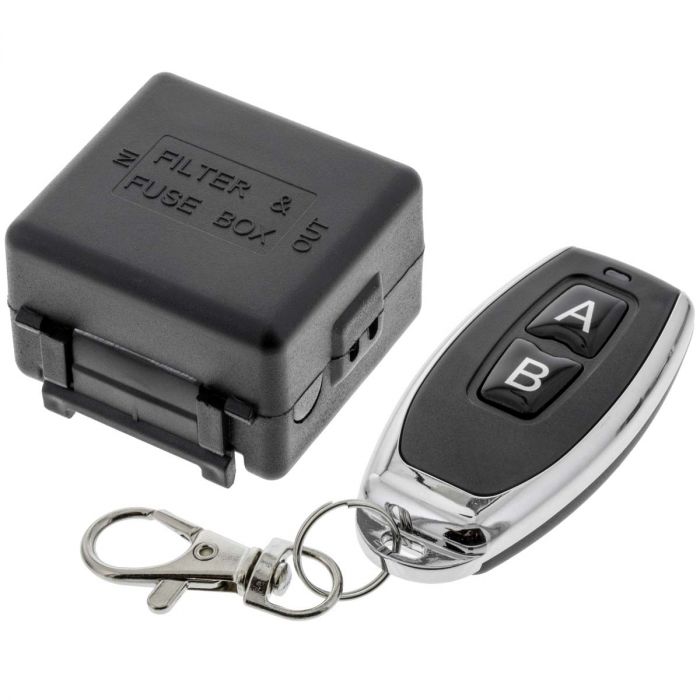

Quality Mobile Video RMR12V2 12 volt RF remote controlled relay

$13.99
In stock
SKU
RMR12V2

Key Features

  • On/Off controlled relay with RF remote control
  • Maximum range is 150 feet
  • Relay ratings: 10 amp 30 volts DC / 10 amps 250 VAC
  • Remote control features on and off button for discrete control
  • Requires a minimum of 9 volts to function
Unit includes: 12 volt remote controlled relay, RF remote control Quality Mobile Video RMR12V2 12 volt IR remote controlled relay

The QMV TDR12V2 is a very cool relay. Have you ever wanted to have something turn on immediately with a remote control? This relay is perfect for you. You can control up to 10 amps 120 Volt AC or 10 amps up to 30 volts DC with an IR remote control. This relay is perfect for do it yourself projects like lighting, fan control and virtually anything else you can think of.

    Features:
  • On/Off controlled relay with RF remote control
  • Maximum range is 150 feet
  • Circuit board design with protective cover
  • Requires a minimum of 9 volts to function
  • Remote control features on and off button for discrete control
  • Remote control carrier frequency: 433 MHz
  • Power consumption @ 12Vdc 40 mA
  • Screw terminals for easy connections up to 14 gauge wire
  • Dimensions 1-5/8" (W) x 1-5/8" (L) x 1" (H) with terminals
  • Relay ratings: 10 amp 30 volts DC / 10 amps 250 VAC
    Contact configuration:
  • GND - Ground all-time, as this is what grounds the circuit on the relay
  • VCC - 12 volt positive connection to trigger the relay
  • COM - Common latching relay connection (Can be positive or negative depending on your need)
  • CK - Normally open contact (Connects to common when relay latches)
  • CB - Normally closed contact (Connects to common when relay is un-energized or at rest)
More Information
Manufacturer Quality Mobile Video
Part Number RMR12V2
Operation Voltage 8-15 Volt DC
Relay type Wireless remote control relay
Current capacity 10 Amp
Pole switching type SPDT (Single pole Dual throw)
Tab type No Tab
Waterproof ingress protection None
Wireless Remote Control Yes
Wireless Transmission Wireless connection
Wireless Channels 2-Channel
Warranty 1 Year
Item Returns This item can be returned
