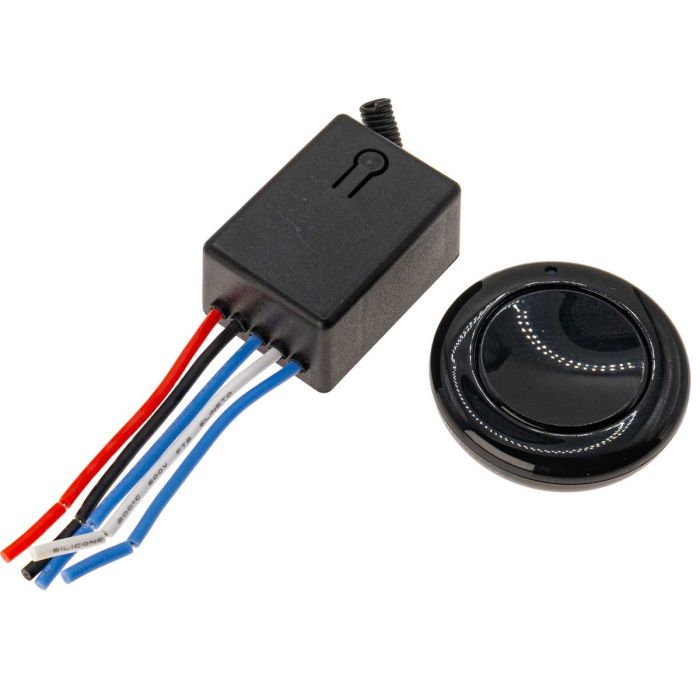

Control electrical accessories wirelessly with the Beuler RSR10 remote-control switch. Its programmable relay output can operate in toggle or momentary mode. Toggle mode turns the connected device on with one button press and off with the next, while momentary mode keeps the output active only while the remote button is pressed. The receiver operates from 9 to 13 volts DC and supports relay loads up to 20 amps, making it suitable for automotive, marine, recreational vehicle, and custom electronic applications. Use it to remotely control auxiliary lighting, air horns, cameras, linear actuators, trunk releases, stereo systems, ignition-interrupt circuits, and other compatible accessories. The package includes a wireless button transmitter with no logo, receiver relay, mounting pads, installed transmitter batteries, and an instruction manual.
Beuler RSR10 Remote Control Switch with Programmable Relay OutputFeatures
- Single-channel remote control relay with programmable outputs
- Blank black transmitter
- ASK Superheterodyne Reception RF
- Output can be configured for momentary or toggle on and off
- Receiver input voltage: 9 V - 13 VdCc
- Relay Input voltage: 5 V - 60 Vdc
- Maximum output current: 10 Amps
- 433 MHz RF frequency
- Relay output has normally closed, common, and normally open outputs
- Inputs and Outputs
- (1) Red Wire - Positive 12 volt input
- (1) Black Wire - Negative 12 volt input
- (1) Blue Wire - Normally closed output
- (1) Blue Wire - Normally open output
- (1) White Wire - Common input
How the unit functions
- Momentary mode
- Toggle on and off
How to program:
Momentary mode:
- Step 1: Press the receiver's learning button once. Wait for the LED on the receiver to light up and enter the programming mode
- Step 2: Press the button on the remote. The LED on the receiver will flash and then turn off. The momentary mode has been set successfully
Toggle mode:
- Step 1. Press the receiver's learning button twice. Wait for the LED on the receiver to light up and enter the programming mode
- Step 2: Press the button on the remote control once. The LED on the receiver will flash and then turn off. The toggle mode has been set successfully
Dimensions:
- Remote Dimensions: 1-3/4" (D) x 1/2" (H)
- Relay Dimensions: 1-1/8" (W) x 2" without wires
- Relay Dimensions: 1-1/8" (W) x 2-1/4" with wires
