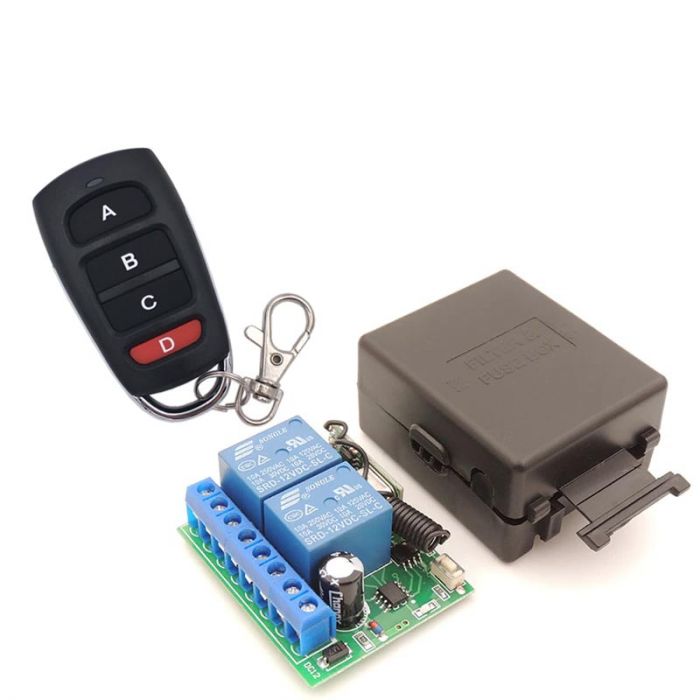

Quality Mobile Video RMR12V3 12 volt RF 2-Channel remote controlled relay

The QMV TDR12V2 is a very cool relay. Have you ever wanted to have something turn on immediately with a remote control? This relay is perfect for you. You can control up to 10 amps 120 Volt AC or 10 amps up to 30 volts DC with an IR remote control. This relay is perfect for do it yourself projects like lighting, fan control and virtually anything else you can think of.

Features:
• On/Off controlled quad-relay with RF remote control
• 2-Channel discreet control
• Unit can be set to Momentary/Toggle/Latched mode
• Maximum range is 150 feet
• Circuit board design with protective cover
• Requires a minimum of 9 volts to function
• Can be used for motor control, light control or linear actuator control
• Remote control carrier frequency: 433 MHz
• Voltage rating: 6 Vdc - 32 Vdc
• Power consumption @ 12Vdc 40 mA
• Screw terminals for easy connections up to 14 gauge wire
• Dimensions 1-1/2" (W) x 1-3/4" (L) x 1" (H) with terminals
• Relay ratings: 15 amp 15 volts DC / 10 amps 250 VAC

Contact configuration:
• GND - Ground all-time, as this is what grounds the circuit on the relay
• VCC - Positive connection to trigger the relay
• (2) COM - Common latching relay connection (Can be positive or negative depending on your need)
• (2) CK - Normally open contact (Connects to common when relay latches)
• (2) CB - Normally closed contact (Connects to common when relay is un-energized or at rest)
