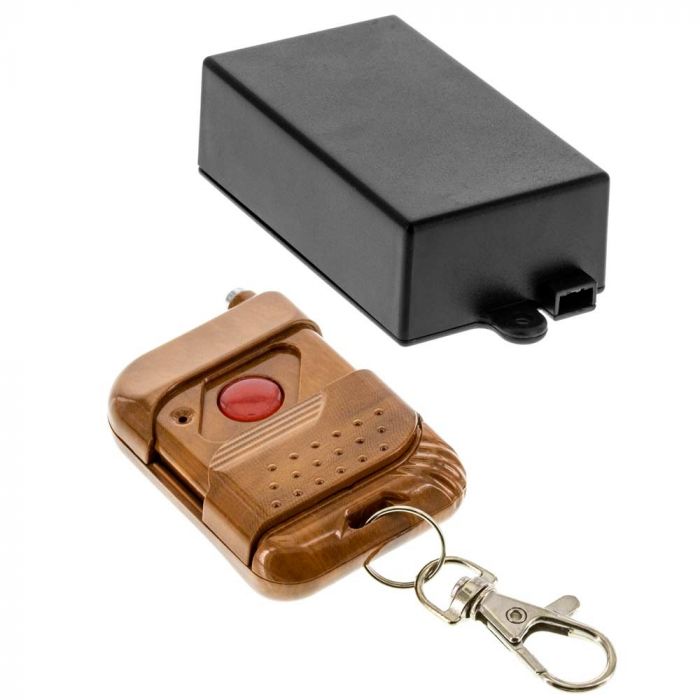

Quality Mobile Video WL-1CH-01 DC 12V 10A Relay 1CH Wireless RF Remote Control Switch Transmitter with Receiver
$13.99
In stock
SKU
WL-1CH-01
Expert Knowledge
Talk to a specialist
- 1CH Wireless RF Remote Control Switch Transmitter with Receiver
- The strong signal can pass through walls,floors and doors,control receiver from any place within a reliable distance
- Remote Control Distance: >100 meter (In open environment)
- Maximum Load: 10A 250V AC /10 A 30V DC
- Wiring Method: Fixed wiring terminal
- RF Working Mode: Super heterodyne receiver
Unit includes: 12 volt relay transmitter, wireless remote
Quality Mobile Video WL-1CH-01 DC 12V 10A Relay 1CH Wireless RF Remote Control Switch Transmitter with Receiver
Quality Mobile Video WL-1CH-01 DC 12V 10A Relay 1CH Wireless RF Remote Control Switch Transmitter with Receiver
-
Features:
- 1CH Wireless RF Remote Control Switch Transmitter with Receiver
- Wireless coding technology, no direction, switch without disturbing each other, you can turn on or turn off the receiver with transmitter(remote control)from any place within a reliable distance
- The strong signal can pass through walls,floors and doors,control receiver from any place within a reliable distance
- The receiver controller receives and stores the signal from remote control,dispensing with traditional jumpers or switches coding with its high confidentiality
- Widely used in various anti-theft alarms, security systems, remote-controlled devices,motor-driven curtain, roller blind door, garage/gate barriers, motorcycles, short-range and long-range wireless remote control products, industrial control products
- RF Frequency: 433MHZ
- RF Working Mode: Super heterodyne receiver
- Remote Control Distance: >100 meter (In open environment)
- Decoding Way: MCU Software decoding
- Receiver Sensitivity: >90dBm
- Can Store The Number Of Remote Control: 50
- Channel: 1CH
- Wiring Method: Fixed wiring terminal
- Output: Normally open, Common, Normally closed
- Size: approx. 3.5 x 3 x 1.6cm
- Transmitter Specifications:
- Operating Voltage: DC12V
- Operating Frequency: 315MHz
- Receiver Sensitivity: >-105dB
- Maximum Load: 10A 250V AC /10 A 30V DC
- Encoding Type: learning code
- Board Size: 34 x 31 x 18mm
- Pin 87 - Normally open pin
- Remote Control Specifications:
- Operating voltage: 12V (12V 23A battery)
- Operating Frequency: 315MHz
- Encoding Type: Fixed code
- Firing Range: 100 meter(open) in theory, 15%-30% in reality
- Size: 35x x 55mm x 13mm
- Shock resistance : 4.7M
- Battery for transmitter :23A 12V
| Manufacturer | Quality Mobile Video |
|---|---|
| Part Number | WL-1CH-01 |
| Operation Voltage | 12-15 Volt DC |
| Relay type | Wireless remote control relay |
| Current capacity | 10 Amp |
| Waterproof ingress protection | None |
| Wireless Remote Control | Yes |
| Wireless Transmission | Wireless connection |
| Warranty | 1 Year |
| Item Returns | This item can be returned |
