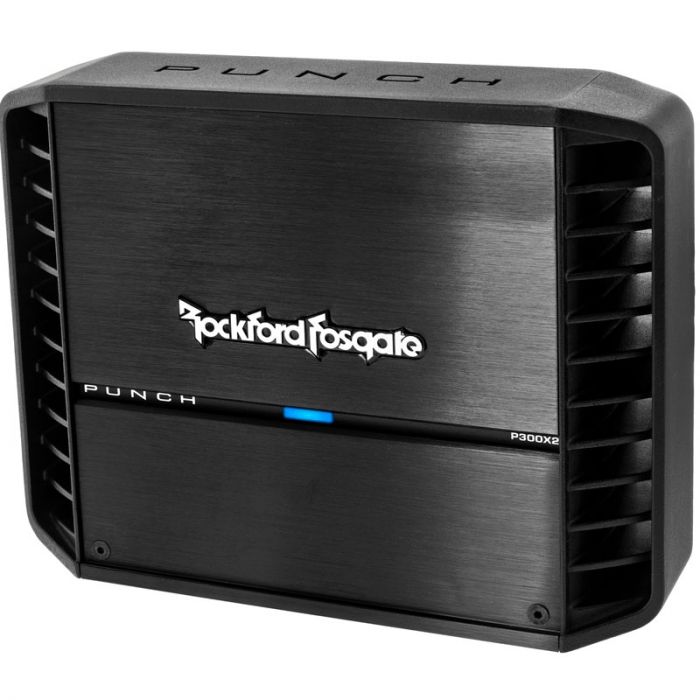

Rockford Fosgate P300X2 300 Watt 2-Channel Class AB Car Amplifier

Rating:
100 % of 100
$213.99
Out of stock
SKU
P300X2

Key Features

  • 2-Channel 300 Watts car amplifier
  • 100 watts RMS x 2 Channels at 4 ohms
  • High level input capable with an Auto Turn-On circuit
  • On-board Punch equalizer and is remote Punch Level Control ready
  • Hidden top mounted control panel and a cast aluminum heatsink.

Unit includes: Car Amplifier, Mounting hardware, and Instruction manual

Rockford Fosgate P300X2 300 Watt 2-Channel Class AB Car Amplifier:


    Features:
  • 300 Watt Punch Series 2-Channel Class AB Car Amplifier
  • TRANS•ana topology - simplifies the signal path of the amplifier that results in greater reliability and sound quality
  • MOSFET power supply for incredible power
  • LED indicators: Power, Protect, and Thermal
  • Balanced Differential inputs - filters and eliminates noise picked up from the RCA signal cables as they are run through the vehicle
  • C.L.E.A.N circuit that allows you to properly optimize input signal to output capability for proper signal to noise ratio and prevent damaging distortion
  • MEHSA3 utilizes a proprietary process that yields up to five times better heat transfer than traditional FET mounting techniques that lowers distortion, increases durability and prolongs the output device life span
  • DSM - An industry-leading manufacturing process, DSM utilizes high-speed robotics, high-quality 1% tight-tolerance parts and large board traces which improves efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature
  • NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances
  • DTM - Dynamic Thermal Management evenly distributes heat across entire amplifier cast aluminum heat-sink without noisy fans utilizing convection cooling
  • Provides three way protection circuitry, which includes thermal, overload and speaker short protection
  • Integrated heavy-duty aluminum alloy vented heat sink for utmost heat dissipation
  • Requires minimum 8 gauge power and ground wiring for installation
  • CEA-2006 compliant amplifier
  • Frequency Response: 20Hz to 20kHz +/- 1.0dB

  • Inputs and Outputs:
  • 2-channel operation
  • Nickel-plated RCA level inputs
  • Nickel-plated RCA level outputs
  • Input sensitivity is 150 mV to 12V
  • Captive C-Clamp 8 AWG to 18 AWG speaker connections
  • Captive C-Clamp 4 AWG to 8 AWG power connections

  • Max Power Output:
  • 2-Ohms: 203 watts x 2 channel
  • 4-Ohms: 120 watts x 2 channel

  • RMS Power Output:
  • 2-Ohms: 150 watts x 2 channel
  • 4-Ohms: 100 watts x 2 channel
  • 4-Ohms: 300 Watts x 1 (Bridged)

  • Tone Controls:
  • Optional PLC2 wired remote bass level control
  • Punch EQ2 Bass Boost: 0dB to +18 dB at 45 Hz
  • Punch EQ2 Treble Boost: 0dB to +14 dB at 12.5 kHz

  • Built in Crossover:
  • Variable high-pass filter: 50 Hz - 250 Hz @ 12 dB/octave Butterworth
  • Variable low-pass filter: 50 Hz - 250 Hz @ 12 dB/octave Butterworth
  • All Pass

  • Dimensions:
  • Overall Dimensions: 2.38” (H) x 9.86” (D) x 7.76” (W)
More Information
Manufacturer Rockford Fosgate
Part Number P300X2
Amplifier Topology Class Class AB
Number of Channels 2 Channel
Amplifier Bridging Bridgable @ 4 ohms
Minimum Impedance in Bridged Mode 4 ohm
Minimum Impedance in Un-Bridged Mode 2 ohm
Strappable Amplifier No
RCA Pre-amp Audio outputs 1 Pair
Preamp voltage 5 volts
Speaker level inputs Yes
Gain Control Yes
Bass Knob / Remote Gain Optional
Built in Crossover High-pass, Low-pass
Cooling Fan No
Color Black
Warranty 1 Year
Recommended Power Wire Gauge 8 Gauge
CEA2006 Compliant No
UPC Code 780687332402
Return period 30 days
Exchange period 30 days
