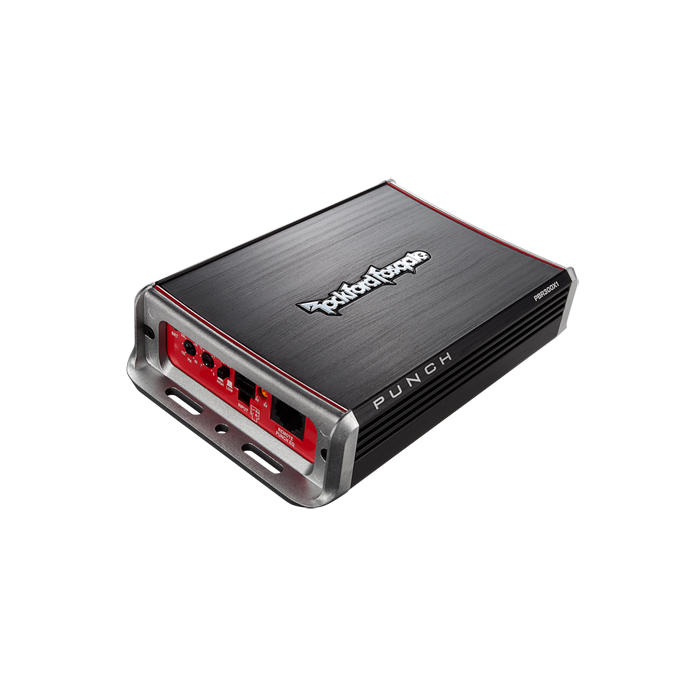

Rockford Fosgate PBR300X1 Punch Boosted Rail 300 Watt Mono Amplifier
- 75 Watts x 1-channel at 4 ohms
- Punch series micro sized boosted rail mono amplifier
- Super efficient design that allows the amplifier to mounted virtually anywhere
- High level speaker inputs for easy installation into factory audio systems
- 1 Year Standard Warranty
Features:
- Punch series micro sized boosted rail mono amplifier
- Super efficient design that allows the amplifier to mounted virtually anywhere
- Ultra compact chassis
- High level speaker inputs for easy installation into factory audio systems
- Low level RCA input connection
- Remote bass level input (remote level control sold separately)
- LED status indicators for protect modes
- Extruded aluminium heat sink
- Short circuit protection
- Thermal protection
- Multiple mounting options
- Includes all harnesses and hardware for full installation
- Optional PEQ provides 0dB to +18dB @ 45Hz
- Low Pass crossover: 35Hz - 250Hz @ 12dB/Octave Butterworth
- NOMAD protection circuitry
- Variable DC offset sensitivity
- 10 Gauge power terminals
- 16 Gauge speaker terminals
- Input sensitivity:
- Low level: 150mV-4V
- High level: 400mV-11V
Power Output Max:
- 96 Watts x 1 @ 4-Ohm
- 189 Watts x 1 @ 2-Ohm
- 326 Watts x 1 @ 1-Ohm
Power Output RMS:
- 75 Watts x 1 @ 4-Ohm
- 150 Watts x 1 @ 2-Ohm
- 300 Watts x 1 @ 1-Ohm
Quick Specs:
- Signal Input: High Level: 4-pin harness
- Signal Input: Low Level: RCA inputs
- Power Input connector: 3-pin harness up to 10 gauge wire
- Frequency Response: 20Hz - 250 Hz +/-3dB
- Circuit topology Class: Class BR
- Operating Voltage: 9-16 VDC
- Average Current Draw: 15 Amp
- Recommended Fuse 30 Amp
Dimensions:
- 1-1/2" (H) x 4-1/4" (W) x 6-3/4" (L)
Manufacturer | Rockford Fosgate |
---|---|
Part Number | PBR300X1 |
Amplifier Topology Class | Class BR |
Number of Channels | 1 Channel |
Total RMS Power at 1 ohm | 300.00 |
Total RMS Power at 2 ohm | 150.00 |
Total RMS Power at 4 ohm | 75.00 |
Total Peak Power Output | 326.00 (Watts) |
Amplifier Bridging | Not Bridgable |
Minimum Impedance in Bridged Mode | 1 ohm |
Minimum Impedance in Un-Bridged Mode | 1 ohm |
Strappable Amplifier | No |
RCA Pre-amp Audio inputs | 1 Pair |
RCA Pre-amp Audio outputs | 1 Pair |
Preamp voltage | 150 mV - 11 V |
Speaker level inputs | Yes |
Gain Control | Yes |
Bass Knob / Remote Gain | Optional |
Built in Crossover | Low-pass |
Cooling Fan | No |
Color | Black |
Warranty | 1 Year |
Recommended Power Wire Gauge | 10 Gauge |
CEA2006 Compliant | No |
UPC Code | 780687333096 |
Return period | 30 days |
Exchange period | 30 days |
