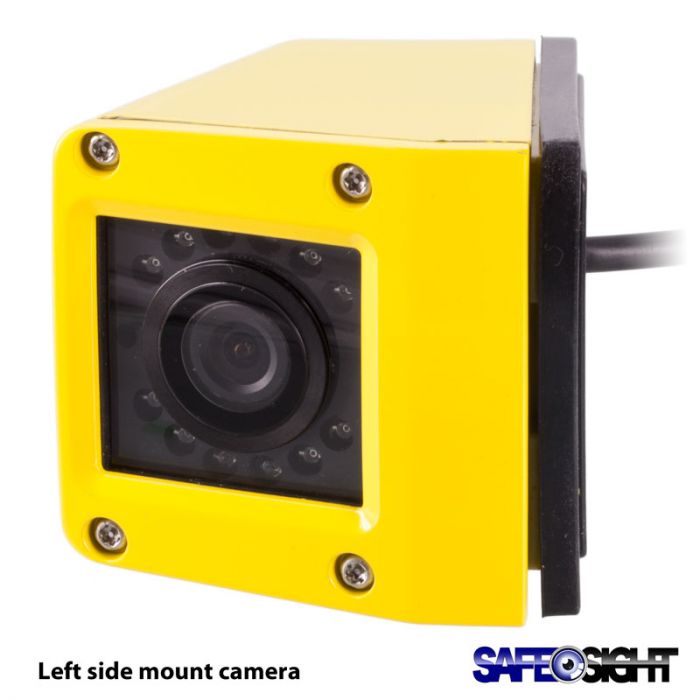

Safesight TOP-SS-5508UR-B Left Side Mount Color CCD Camera with 95 degree Wide Angle Night Vision - Yellow Left Side Mount Camera

Safesight TOP-SS-5508UR-B Left Side Mount Color CCD Camera with 95 degree Wide Angle Night Vision - Yellow Left Side Mount Camera

Safesight TOP-SS-5508UR-B Left Side Mount Color CCD Camera with 95 degree Wide Angle Night Vision - Yellow Left Side Mount Camera

More Views

Item sku:TOP-SS-5508UR-B
Safesight

Overall Rating 0 (Based on 0 reviews)

Would you recommend this to a friend?

Write a review

Safesight TOP-SS-5508UR-B Product Highlights

  • High Resolution Left Side Mount Camera with Sony DSP
  • 1/3" Sony SuperHAD II Color CCD Image Sensor
  • 550 TV lines of resolution for excellent picture quality
  • Left Side mount CCD camera
  • IR nightvision
  • Rugged housing for added durability
  • 4-Pin connector

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 818-242-9461
  • Fast Free Same Day Shipping - Over $99

Overview

Unit includes: Camera, Camera housing, Mounting hardware, Trim cover, and Instruction manual

The Safesight TOP-SS-5508UR side mount camera is designed with large vehicles in mind. This camera comes in several colors including school bus yellow that closely matches all school buses and Caterpillar industrial equipment. Whether you have an RV, trailer, or commercial vehicle large blind spots are possible and incredibly dangerous. Side mount cameras combine with a rear camera provide a full field of view of what is behind you and beside you. The TOP-SS-5508UR provides excellent picture quality due to its 1/3 inch Sony CCD image sensor which offers a whopping 550 TV lines of resolution with a total pixel count of 379,392 pixels! The camera is capable of great detail and has excellent low light capabilities. In completely dark situations the internal IR emitters provide a non visible light that camera can see and provides a daylight like image on screen. Combine this camera with one of our DVR systems and have a full recording in the event of an accident.


Safesight TOP-SS-5508UR-B Left Side Mount Color CCD Camera with 95 degree Wide Angle Night Vision - Yellow Left Side Mount Camera features:
    Models and applications
  • TOP-5607R-B: Left Side Mount looking back or Right side facing forward
  • TOP-5607R-A: Right Side Mount looking back or Left side facing forward
  • TOP-5607R-C: Top Mount looking down

  • Compatibility
  • Camera is compatible with Safesight Back Up Camera Systems
  • Ideal for Heavy Duty and Commercial Vehicles (School buses, Truck, RV, Bus, Van, Tractor, Trailer, Crane, Dirt Wagon, etc)
  • Yellow matches well with Caterpillar or John Deere industrial equipment

  • Features:
  • Left side mount camera designed to look backward or right side mount camera looking forward
  • High Resolution Back Up Camera with Sony DSP
  • 1/3" Sony SuperHAD II Color CCD Image Sensor
  • 550 TV lines of resolution for excellent picture quality
  • Optional mounting bases - 0° / 5° / 15° for angle adjustment
  • 12 Automatic IR Infrared LED for Night Vision with 24 - 30 foot range
  • IP67 rated for Waterproof, Shockproof and High Temperature Resistance
  • High strength aluminum housing that prevents permanent damage to the camera
  • Rubber base for vibration isolation
  • 4 Pin Waterproof Aircraft grade connector - Safesight 4-Pin to RCA Adapters are sold separately


Dimensions:
  • Dimensions: 3-3/4" (L) x 2-3/4" (H) x 2-9/16" (D)


Imager specifications:
  • 1/3" Sony SuperHAD II Color CCD Image Sensor
  • Effective pixel area: 768 pixels (Horizontal) x 494 pixels (Vertical)
  • Total pixel count: 379,392
  • Minimum Illumination: 0Lux (LED On)
  • Lens: F = 2.8mm
  • 95 degree wide angle camera
  • IR spectrum: 850nm
  • 12 internal IR lED's with 24 - 30 foot illumination range
  • Auto gain control
  • Auto white balance
  • Auto electronic shutter
  • Auto back light compensation

Technical Specifications

Manufacturer Safesight
Part Number TOP-SS-5508UR-B
Auto Dimming No
Camera Sensor type CCD
Back up camera type Left - Side Mount Camera
License Plate Camera Type No
Camera diameter No
Viewing Angle 100 degrees
Wireless Transmission No, wired connection
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Reverse Image Yes - Reverse Image
Parking grid lines No
Infrared Illumination Yes
Built in Microphone No
Trigger wire No
Auto on/off Yes
Connector Type 4 Pin Connector
NTSC/PAL NTSC only
Operation Voltage 12 - 15 volt
Battery Powered Hard wired
Cigarette Lighter Cord Included No
Color Yellow
Case included No
Built in Speakers No
Warranty 1 Year
UPC Code No
