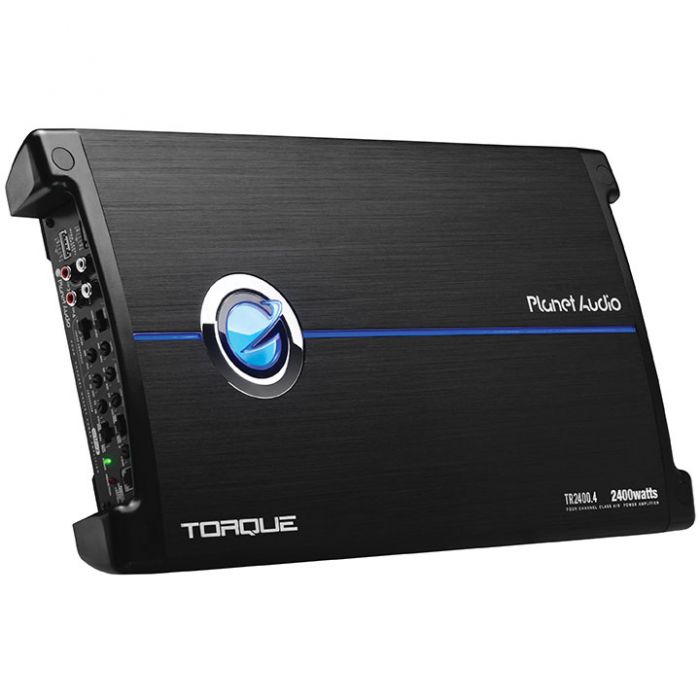

DISCONTINUED - Planet Audio TR2400.4 Torque Series 2400 Watt Class AB 4 Channel Car Audio Amplifier
$117.99
Out of stock
SKU
TR24004
Expert Knowledge
Talk to a specialist
- Planet Audio TR2400.4 Torque Series 4 Channel Class AB Car Amplifier
- 225 Watts x 4 @ 4-Ohm
- 450 Watts x 4 @ 2-Ohm
- 4-Ohms: 900 Watts x 2 (Bridged)
- Blue illuminated torque logo
- Remote subwoofer level control
- Low level inputs
- Variable bass boost
Unit includes: Class-AB Power amplifier, Bass control, Mounting hardware, and Instruction manual
Planet Audio TR2400.4 Torque Series 2400 Watt Class AB 4 Channel Car Audio Amplifier
Features:
Planet Audio TR2400.4 Torque Series 2400 Watt Class AB 4 Channel Car Audio Amplifier
Features:
- Torque Series 4 Channel Class AB Car Amplifier
- Pulse Width Modulated MOSFET Power supply
- Blue illuminated Planet Audio Logo
- Includes subwoofer level controller
- 2 Ohm stable (Stereo mode)
- Bridgeable outputs (Requires 4 ohm load)
- 18dB Variable Bass Boost:
- Variable Boost: 0-18 dB
- Center Frequency: 45 Hz
- Internal Crossovers:
- Low-pass: 50Hz - 250kHz at 12dB per octave
- High-pass: 50Hz - 500kHz at 12dB per octave
- Audio inputs:
- 4 Channel RCA inputs accepts up to 8 volt input signals
- Input sensitivity selector switch (100 mV - 2 Volts / 2 Volts - 8 Volts)
- Input accepts RCA low level or High level (Direct speaker connection up to 8 volts)
- LED power and protect (red) indicator
- Single speaker terminals
- Black Anodized Aluminum Chassis
- Frequency Response: 20Hz to 250 kHz
- Channel separation: 90 dB
- Damping factor: 125+
- 4 gauge power and ground wiring is required for installation
- Recommended installation kit: 4 Gauge amplifier installation kit
- TR1000.2 Instruction manual
- Fuse rating: 70 amps total (2 x 35 amp ATC)
- Single-channel operation
- (4) Nickel-plated RCA level inputs
- Input Sensitivity Low level: 100mV - 2V
- Input Sensitivity High level: 2V - 8V
- 4-Ohms: 300 Watts x 4
- 2-Ohms: 600 Watts x 4
- 4-Ohms: 1200 Watts x 2 (Bridged)
- 4-Ohms: 225 Watts x 4
- 2-Ohms: 450 Watts x 4
- 4-Ohms: 900 Watts x 2 (Bridged)
- Overall Dimensions: 2-1/4" (H) x 17-1/4" (L) x 9-5/8" (W)
| Manufacturer | Planet Audio |
|---|---|
| Part Number | TR24004 |
| Amplifier Topology Class | Class AB |
| Number of Channels | 4 Channel |
| Amplifier Bridging | Bridgable @ 4 ohms |
| Minimum Impedance in Bridged Mode | 4 ohm |
| Minimum Impedance in Un-Bridged Mode | 2 ohm |
| Strappable Amplifier | No |
| RCA Pre-amp Audio inputs | 2 Pairs (Front, Rear) |
| Preamp voltage | 100 mV - 8 V |
| Speaker level inputs | Yes |
| Gain Control | Yes |
| Bass Knob / Remote Gain | Yes |
| Built in Crossover | High-pass, Low-pass |
| Cooling Fan | No |
| Color | Black |
| Warranty | 1 Year |
| Recommended Power Wire Gauge | 4 Gauge |
| CEA2006 Compliant | No |
| UPC Code | 636210106180 |
| Return period | 30 days |
| Exchange period | 30 days |
