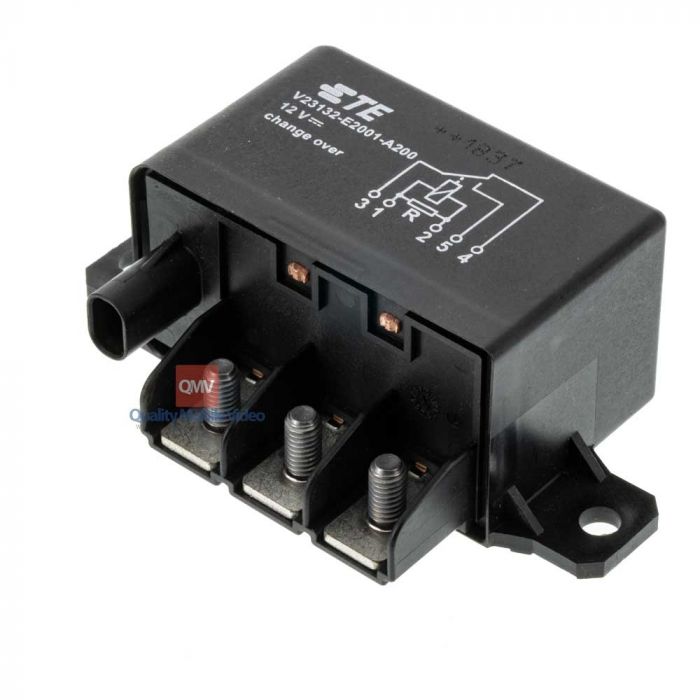

Tyco V23132-E2001-A200 12 Volt SPDT IP54 rated 130-Amp High Current Relay

The Tyco V23232-D0001-X001 is a high current 12 Volt relay that is designed for large loads. This relay is commonly used in automotive electrical and security installations. It easily switches 130 amps of current and peaks of 300 amps with minimal draw on the coil of 275 milliamps @ 12Vdc. It features dual plastic mounting tabs and a plastic housing. Single Pole, Single throw for flexible installations and multiple uses such as accessory or electrical bus turn on.

Features:
• 12 or 24 Volt High current relay
• 130 amp continuous rated contacts
• 300 amp surge rated contacts
• SPDT - Single pole dual throw
• (1) Normally closed contact
• (1) Normally open contact
• 12 Vdc rated coil with minimum 9 volt to trigger
• Rated coil power: 3.3W
• Compatible with most insulated and non insulated terminals and screw terminals
• Diode isolated coil to prevent damaging reverse feedback
• Dimensions 4-3/8" (W) x 1-5/8" (D) x 2-5/8" (H) with terminals and tab
• Mechanical Lifespan: 10,000,000 cycles
• IP54 rated
