Tyco V23234-A1001-X036 12 VDC Automotive 5-Pin Relay SPDT 20/30A Plastic tab

Rating:
99 % of 100
$5.99
In stock
SKU
V23234-A1001-X036
  • Buy 10 for $5.57 each and save 7%
  • Buy 25 for $5.39 each and save 10%

Key Features

  • Durable design built by Bosch automotive electronics
  • 20 amp / 30 amp rated contacts
  • SPDT - Single pole dual throw
Unit includes: 12 volt relay

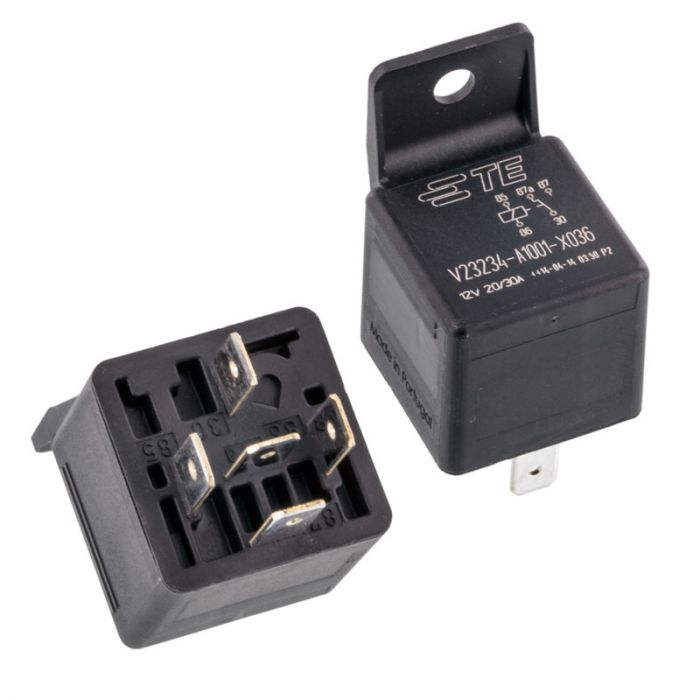

Tyco V23234-A1001-X036 12 VDC Automotive 5-Pin Relay SPDT 20/30A Plastic tab

This Bosch type 12V, 20A/30A relay is popular in automotive sound and security installations. It easily switches 20 amps of current and peaks of 30 amps with minimal draw on the coil of 157 milliamps @ 12Vdc. It features a plastic tab with plastic housing. Single Pole, Dual throw for flexible installations and multiple uses. Bosch automotive electronics has been acquired by Tyco electronics and this is the replacement to the old Bosch style.

    Features:
  • Durable design built by Tyco automotive electronics
  • 20 amp / 30 amp rated contacts
  • SPDT - Single pole dual throw
  • 12 Vdc rated coil with minimum 8 volt to trigger
  • Power consumption @ 12Vdc 157 mA
  • Conventional 87, 87a, 30, 86, and 85 pin locations
  • Compatible with most insulated and non insulated terminals and relay sockets
  • Dimensions 1-1/8" (w) x 1-1/4" (D) x 2-1/8" (H) with terminals and tab
    Pin configuration:
  • Pin 86 - Coil
  • Pin 85 - Coil
  • Pin 30 - Common Pin
  • Pin 87a - Normally closed pin
  • Pin 87 - Normally open pin
More Information
Manufacturer Tyco
Part Number 5080
Operation Voltage 8-15 Volt DC
Relay type 5 Pin relay
Current capacity 20 Amp / 30 Amp
Pole switching type SPDT (Single pole Dual throw)
Tab type Plastic Tab
Waterproof ingress protection None
Warranty 1 Year
California Proposition 65
Return period 30 days
Exchange period 30 days
