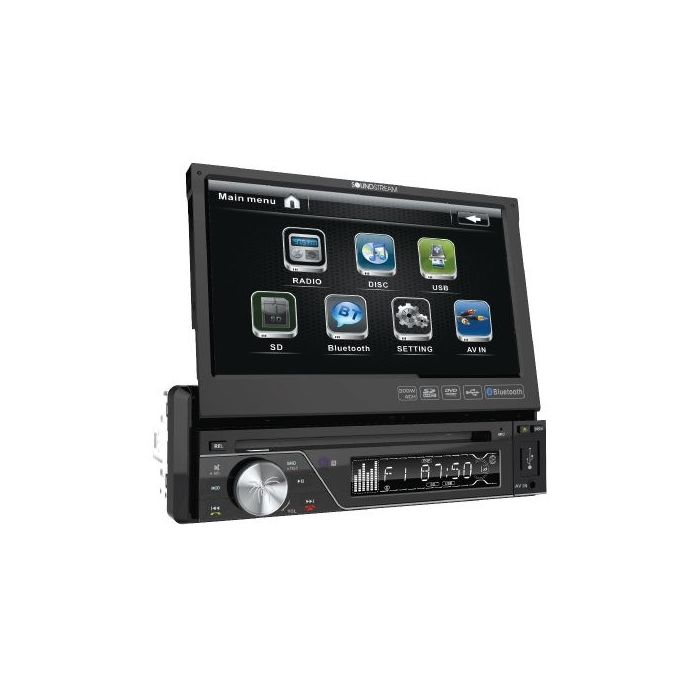

Soundstream VIR-7830B 7" Single DIN Flip Up DVD Receiver with Bluetooth
- 7" Single DIN Flip Up DVD Receiver
- Built in Bluetooth V2.0
- Built in AM/FM radio tuner
- 2A 5V Adaptive Fast Charge of Mobile Devices (front USB)
- Steering wheel control compatible
Soundstream VIR-7830B 7" Single DIN Flip Up DVD Receiver with Bluetooth
- Features
- 7" Single DIN Flip Up DVD Receiver
- Motorized Angle Adjustment
- Detachable Theft Deterrent Front Panel
- Bluetooth V2.0 Hands-Free Calling from Enabled Phone
- A2DP Wireless MP3 Audio Playback from Enabled Device
- Built-in Front Panel Bluetooth Microphone
- Accepts OEM Steering Wheel Control Interfaces
- Playback from DVD & CD of MP3, MP4 & Other Video
- Playback from 64GB USB/SD card of MP3, MP4 & Other Video (front)
- 2A 5V Adaptive Fast Charge of Mobile Devices (front USB)
- SD Cards slot behind detachable display
- ID3 MP3 Tag Reading for Track & Artist Information
- Rear Audio/Video Input for Personal Media Devices
- Front & Rear RCA Pre-Amp Audio Outputs
- Subwoofer RCA Audio Pre-Amp Output
- Video Output for Auxiliary Devices
- Rear View Camera Input w/ Trigger
- Custom Backgrounds & Screen Savers
- Multi-Region FM Frequency Stepping
- 800x480 Widescreen Resolution Supports
- Audio Features
- 10-band parametric equalizer with 8 preset and custom options (Off / Custom / Jazz / Hip-Hop / Pop / Rock / R&B)
- Manual EQ with 32 Hz / 63 Hz / 125 Hz / 250 Hz / 500 Hz / 1 kHz / 2 kHz / 4 kHz / 8 kHz / 16 kHz ±7dB Adjustments
- Subwoofer Time alignment: 0 - 18 ms
- Low-Pass filter with variable crossover frequencies (Adjustable from off / 50 Hz / 80 Hz / 120 Hz / 160 Hz) at 12dB per octave
- Variable subwoofer level control (+14dB to 0dB)
- Subwoofer phase control 0° - 180°
- Internal amplifier control: When using RCA's internal amplifier can be turned off
- Loudness control
- Media Playback
- Plays DVD, VCD, CD-RW, CD-R, DVD-R, DVD-RW, VCD, MP3, MPEG4 WMA, DivX, and AVI
- Region 1 DVD player
- Electronic shock protection with built in buffer
- Compatible audio codecs: FLAC, WMA, WAV, MP3, DTS, and Dolby Digital
- Compatible video codecs: AVI, MPEG1, MPEG2, MPEG4, H.264, and AAC
- Compatible picture codecs: JPEG, PNG and BMP
- ID3 tag information, display artist and song information
- FLAC Audio Playback for high definition audio downloads (Up to 48kHz/16bit)
- High quality Digital to Analog Converter
- Supports up 32 GB flash drives
- Tuner features:
- Includes Radio AM & FM tuner with 30 preset stations memory
- RDSB (Radio data service) Tuner
- Inputs and Outputs
- 3 - 2V preamp outputs for (Front, Rear and Subwoofer)
- 1 - Rear Input for Rear Camera
- 1 - Video Output
- 1 - Front USB input
- 1 - Front SD card input (behind display)
- 1 - Bluetooth Microphone
- 1 - Steering wheel control input requires ASWC steering wheel interface
- Bluetooth
- Integral Bluetooth 2.0 technology facilitates convenient hands-free phone calls and audio streaming
- A2DP 1.2: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
- AVRCP 1.4: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
- HFP 1.5: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
- PBAP 1.0: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list
- External microphone with 10 foot cord for optimal placement
- Bluetooth 2.0 certified
- Dimensions:
- Single DIN chassis, Double DIN Display
- Chassis Dimensions: 7"W x 6-1/2"D x 3-15/16"H
- Display Dimensions (W X H): 6.36 x 3.94in
Manufacturer | Soundstream |
---|---|
Part Number | VIR-7830B |
Chassis Size | Single DIN |
Faceplate features | Detachable face plate |
RCA Pre-amp Audio outputs | 2 Pairs (Front, Rear) |
Preamp voltage | 2 volts |
LCD Screen Size | 7 inch - 8 inch |
Illumination color | Full Color |
Touchscreen | Yes |
Widescreen Display | 16:9 Widescreen Display |
Native Screen Resolution | 480 x 234 |
Back up camera input | Yes |
Audio Video Outputs | 1 Video output |
Built-in DVD Player | Yes |
Disc Playback | DVD |
Anti-Shock | Yes |
Dual Zone Control | Yes |
Built in Crossover | High-pass, Low-pass |
Audio Formats | Mpeg-3, WMA |
Built in Bluetooth | Built in Bluetooth |
NFC (Near Field Communication) | No |
Radio Data Service - RDS | Yes |
Steering Wheel Control | Yes, requires external module |
CEA2006 Compliant | No |
Warranty | 1 Year |
UPC Code | 709483038806 |
Return period | 30 days |
Exchange period | 30 days |
Car stereo installation
We show you the complete process of installing a Pioneer Double DIN car stereo in a Chevy truck. The in-depth video shows the installation of the interface, and steering wheel control.
Stereo Installation Basics
Let's start with the basics of replacing your car stereo receiver. In out first video we demonstrate how to crimp or solder your wiring, mount your new receiver to your dash kit and prepare everything for an installation in your vehicle.
Wiring Harnesses Explained
What do all of the wire colors mean? Aftermarket manufacturers have made car stereo receiver installation an easier process by using a standardized wire color scheme. We walk you through what each individual wire does, this way if you have an installation that doesn't perform properly you will have the resources to begin troubleshooting your installation.
Simple radio Installation
In our third video we demonstrate this installation process from start to finish. We show you the complete process of installing a Pioneer Double DIN car stereo in a Chevy truck. The in-depth video shows the installation of the interface, and steering wheel control.
Complex radio Installation
In our fourth video we demonstrate a much more difficult installation of a Car Stereo receiver. In this video we are using a more complicated dash kit and a difficult level of installation.
