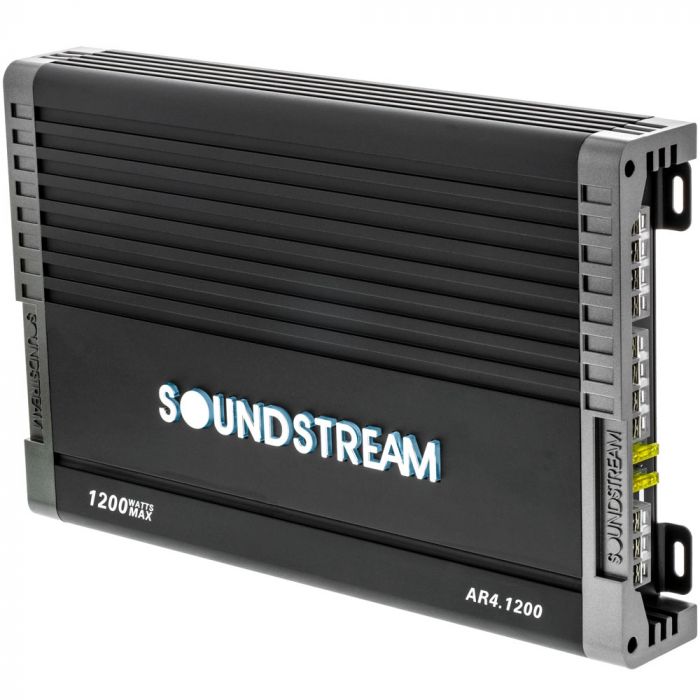

Soundstream AR4.1200 Arachnid Series 1,200W Class A/B Full Range Amplifier

Soundstream AR4.1200 Arachnid Series 1,200W Class A/B Full Range Amplifier

Soundstream AR4.1200 Arachnid Series 1,200W Class A/B Full Range Amplifier

More Views

Soundstream
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Soundstream AR4.1200 Product Highlights

  • 1200 Watt 4 Channel Class AB Amplifier
  • 2-ohm Stereo and 4-ohm Bridged Impedance Stability
  • Continuous Power Output (4 Ω): 120 Watts RMS x 4
  • Continuous Power Output (2 Ω): 150 Watts RMS x 4
  • 4-Channel, 3-Channel, or 2-Channel operation
  • Blue LED Illumination Accent Lighting
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Overview

Unit includes: 4 Channel Amplifier, Installation Hardware, and Instruction Manual

Soundstream AR4.1200 Arachnid 1200 Watt 4 Channel Class AB Amplifier
    Features:
  • Soundstream 1200 Watt 4 Channel Class AB Amplifier
  • Amplifier will operate with 4-ohm or 2-ohm loads
  • 4 Channel and 2 Channel capable
  • Hybrid Aluminum Alloy Heatsink for Optimum Dissipation
  • Blue Soundstream LED Illumination
  • MOSFET Power Supply w/ Audiophile Grade IRTM Transistors
  • Military Grade SMT PCB Maintains Dynamic Performance
  • Direct Short, Thermal, & Overload Circuits Protect Amplifier
  • Nickel plated RCA inputs and loop through outputs
  • 200mV-6V High Speaker Level or Low Level RCA Inputs
  • 4 Gauge power wire connections
  • 8 Gauage speaker wire outputs
  • Low-level thru-pass output to Daisy chain multiple amplifiers
  • Variable 12dB Low, Band-Pass, & Subsonic Crossovers
    Pre-Amp features:
  • Variable Bass Boost (0 - 12 dB)
  • Variable High-pass electronic crossover (120 - 3000 Hz)
  • Variable Low-pass electronic crossover (50 - 250 Hz)
    Inputs and Outputs:
  • Four-channel operation (4-Channel input)
  • Nickel-plated 4 Channel RCA level inputs
  • None Low-level thru-pass output to Daisy chain multiple amplifiers
  • Input Sensitivity Low level: 200 mV - 6 V
    Max Power Output:
  • Total Power Output: 1200 Watts
    RMS Power Output:
  • Continuous Power Output (2 Ω, ≤ 1% THD+N): 150 W x 4
  • Continuous Power Output (4 Ω, ≤ 1% THD+N): 120 W x 4
    RMS Power Bridged Output:
  • Continuous Power Output (4 Ω, ≤ 1% THD+N): 300 W x 2
    Dimensions:
  • Overall Dimensions: 2 inch (H) x 15.75 inch (L) x 8.5 inch (W)

Technical Specifications

Manufacturer Soundstream
Part Number AR4.1200
Amplifier Topology Class Class AB
Number of Channels 4 Channel
Total RMS Power at 1 ohm 0 Watts
Total RMS Power at 2 ohm 300 Watts
Total RMS Power at 4 ohm 480 Watts
RMS Output per Channel (x1 at 4 ohms) 0 Watts
RMS Output per Channel (x2 at 4 ohms) 300 Watts
RMS Output per Channel (x4 at 4 ohms) 120 Watts
Total Peak Power Output 1200 Watts
Amplifier Bridging Bridgable @ 4 ohms
Minimum Impedance in Bridged Mode 4 ohm
Minimum Impedance in Un-Bridged Mode 2 ohm
Strappable Amplifier No
Strappable Power Output No
Frequency Response 20Hz - 20kHz
Signal to noise ratio 95dB
RCA Pre-amp Audio inputs 2 Pairs (Front, Rear)
RCA Pre-amp Audio outputs 1 Pair
Preamp voltage 200 mV - 6 V
Speaker level inputs Yes
Gain Control Yes
Bass Knob / Remote Gain No
Built in Crossover High-pass, Low-pass
Cooling Fan No
Color Black
Warranty 1 Year
Recommended Power Wire Gauge 4 Gauge
Overall Height 2 Inches
Overall Length 15.75 Inches
Overall Width 8.5 Inches
CEA2006 Compliant No
UPC Code 709483054134
