Metra XSVI-1784-NAV 2007 - 2013 Sprinter Van Data Bus interface with Navigation outputs

Metra XSVI-1784-NAV 2007 - 2013 Sprinter Van Data Bus interface with Navigation outputs

Metra XSVI-1784 Sprinter Van Radio Interface

More Views

Metra
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Metra XSVI-1784-NAV Product Highlights

  • Provides all connections to factory wiring and makes installing an aftermarket stereo very easy
  • Provides accessory output for databus signals (12-volt 10-amp capable output)
  • Retains R.A.P. (retained accessory power) while doors remain closed so you can continue to listen to the radio until doors open
  • Perfect for use with aftermarket navigation system as interface provides navigation system outputs (parking brake, reverse, mute, V.S.S.) from databus signals
  • Prewired for ASWC steering wheel interface
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
Save money on all Metra installation hardware when you purchase more than one installation piece of hardware!

Frequently Bought Together

Overview

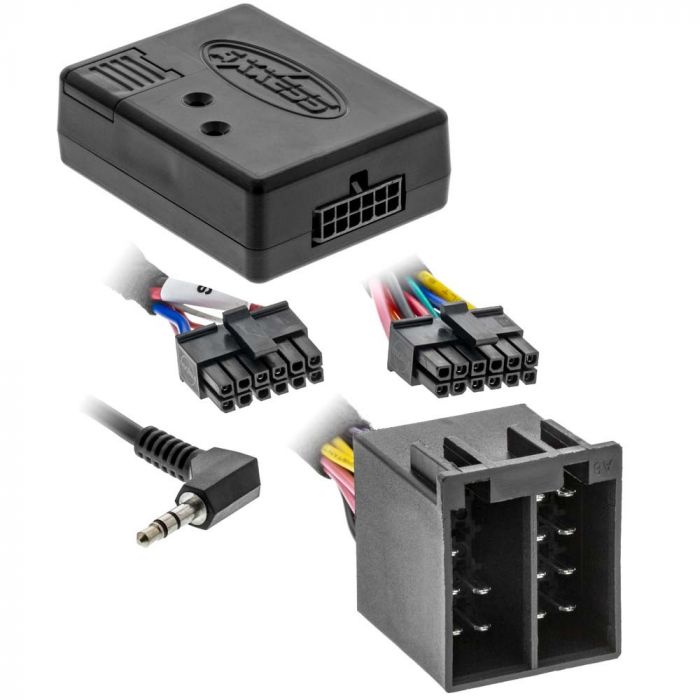

Unit includes: A) Interface, B) Power harness, C) Speaker harness, and Instruction manual

Metra XSVI-1784-NAV 2007 - 2013 Sprinter Van Data Bus interface with Navigation outputs

Interface Features:
  • Provides all connections to factory wiring and makes installing an aftermarket stereo very easy
  • Provides accessory output for databus signals (12-volt 10-amp capable output)
  • Retains R.A.P. (retained accessory power) while doors remain closed so you can continue to listen to the radio until doors open
  • Perfect for use with aftermarket navigation system as interface provides navigation system outputs (parking brake, reverse, mute, V.S.S.) from databus signals
  • Includes prewired ASWC Steering wheel interface harness (ASWC Steering wheel interface not included)
  • 4 - High level speaker inputs makes connections for aftermarket car stereo's to factory speakers easy
  • USB firmware updatable
  • Retains balance and fader


Connections:
  • Yellow – 12V Constant
  • Red – 12V Accessory
  • Black - Ground
  • Orange – Radio illumination (+)
  • Blue – Antenna turn on
  • Light Green – Parking brake
  • Blue with Pink Stripe – VSS (Vehicle speed sensor)
  • Green with Violet Stripe - Reverse trigger (+)
  • Green – Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White – Left Front Speaker (+)
  • White with Black Stripe – Left Front Speaker (-)
  • Purple – Right Rear Speaker (+)
  • Purple with Black Stripe – Right Rear Speaker (-)
  • Gray – Right Front Speaker (+)
  • Gray with Black Stripe – Right Front Speaker (-)


Kit Components:
  • A) XSVI-1784-NAV interface
  • B) Power harness
  • C) Speaker harness
  • D) Instruction manual


Tools Required:

Optional parts:

Vehicle Applications:

Dodge:
  • 2007 - 2007 Sprinter
  • 2008 - 2009 Sprinter (Sound 5 radio)


Mercedes:
  • 2010 - 2013 Sprinter (Sound 5 radio)


Freightliner:
  • 2007 - 2007 Sprinter
  • 2008 - 2013 Sprinter (Sound 5 radio)


Technical Specifications

Manufacturer Metra
Part Number XSVI-1784-NAV
Integration Module N/A
Steering Wheel Control Input N/A
RCA Pre-amp Audio inputs N/A
Speaker level inputs N/A
Warranty 1 Year
Vehicle Year N/A
Vehicle Brand N/A
Vehicle Model N/A
UPC Code 086429183142
