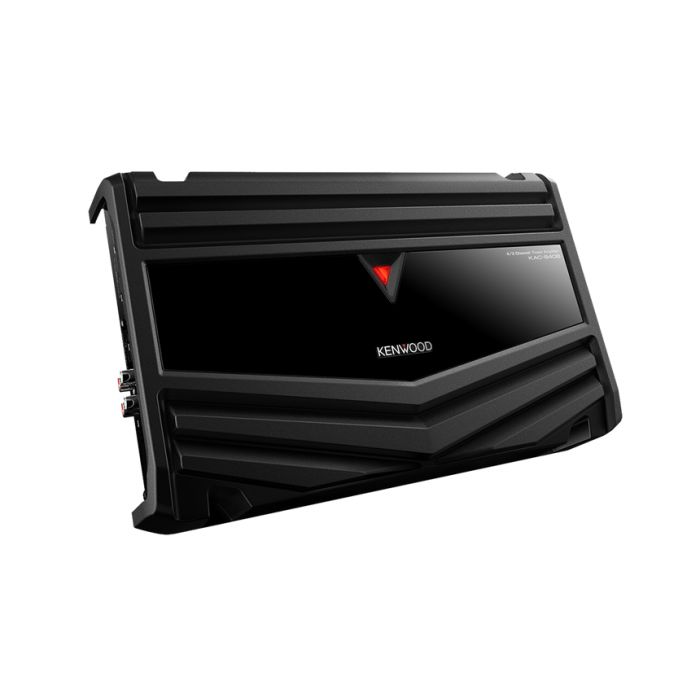

Kenwood KAC-6406 Class-AB 4/3/2 Channel Power Amplifier

Kenwood KAC-6406 Class-AB 4/3/2 Channel Power Amplifier

Kenwood KAC6406 Class-AB 4/3 Channel Power Amplifier

More Views

Item sku:KAC-6406
Kenwood

Overall Rating 0 (Based on 0 reviews)

Would you recommend this to a friend?

Write a review

Kenwood KAC-6406 Product Highlights

  • 4 Channel class AB amplifier
  • Can operate as a 4 / 3 / 2 Channel operation for ultimate system flexibility
  • Speaker Level Input with signal sense turn-on for easy integration to factory audio systems
  • Power MOS-FET Switching Power Supply
  • Cast Aluminum Heat Sink Design
  • 2 Ohms Load Capability
  • CEA-2006 Compliant

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 818-242-9461
  • Fast Free Same Day Shipping - Over $99

Buy everything you need as a package and SAVE!

Overview

Unit Includes: Power Amplifier, Mounting hardware, and Instruction manual

Kenwood KAC-6406 Class-AB 4/3/2 Channel Power Amplifier

    Features
  • Class AB amplifier for excellent fidelity and sound quality
  • Can operate as a 4 / 3 / 2 Channel operation for ultimate system flexibility
  • Power MOS-FET Switching Power Supply
  • Terminal Cover to disguise inputs and outputs and all adjustments
  • Speaker Level Input for easy integration to factory audio systems
  • 2 Ohms Load Capability in Stereo mode
  • Cast Aluminum Heat Sink Design
  • Signal Sensing Turn-on for easy integration to factory audio systems
  • Built in Variable Low-Pass Filter Channels 3 - 4 (50 Hz - 200 Hz, -24dB/oct)
  • Built in Variable High-Pass Filter Channels 1 - 2 (80Hz, -12dB/oct)
  • Frequency Response: 5Hz - 50kHz (+0dB, -3dB)
  • Signal to Noise Ratio: 100dB (Reference: Rated Power into 4Ohms at 14.4V)
  • Input Impedance: 10k ohm
  • Speaker Impedance: 4Ω (2Ω to 8Ω allowable), Bridged connection 4Ω to 8Ω Allowable
  • CEA-2006 Compliant
    Max Power Output
  • 500 Watts
    RMS Power Output
  • 40 Watts x 4 at 4 ohms
  • 60 Watts x 4 at 2 ohms
  • 130 Watts x 2 at 4 ohms
    Inputs and Outputs
  • Battery & Ground: Screw Type Terminal Block (Ni) (M6)
  • Speaker Output: Screw Type Terminal Block (Ni) (M4)
  • Line-in: RCA (Ni)
  • Speaker Level Input: JST Connector
    Dimensions
  • 315mm x 56mm x 200mm
  • 12-3/8" (W) x 2-3/16" (D) x 7-7/8" (H)

Technical Specifications

Manufacturer Kenwood
Part Number KAC-6406
Amplifier Topology Class Class AB
Number of Channels 4 Channel
Total Peak Power Output 500 watts
Total RMS Power Output 251 - 500 Watts
Amplifier Bridging Bridgable @ 4 ohms
Minimum Impedance in Bridged Mode 4 ohm
Minimum Impedance in Un-Bridged Mode 2 ohm
Strappable Amplifier N/A
Strappable Power Output N/A
RCA Pre-amp Audio inputs N/A
RCA Pre-amp Audio outputs 2 Pairs (Front, Rear)
Preamp voltage 5 volts
Speaker level inputs Yes
Gain Control Yes
Bass Knob / Remote Gain No
Built in Crossover High-pass, Low-pass
Cooling Fan Yes
Color Black
Warranty 1 Year
Recommended Power Wire Guage N/A
UPC Code 019048205575
