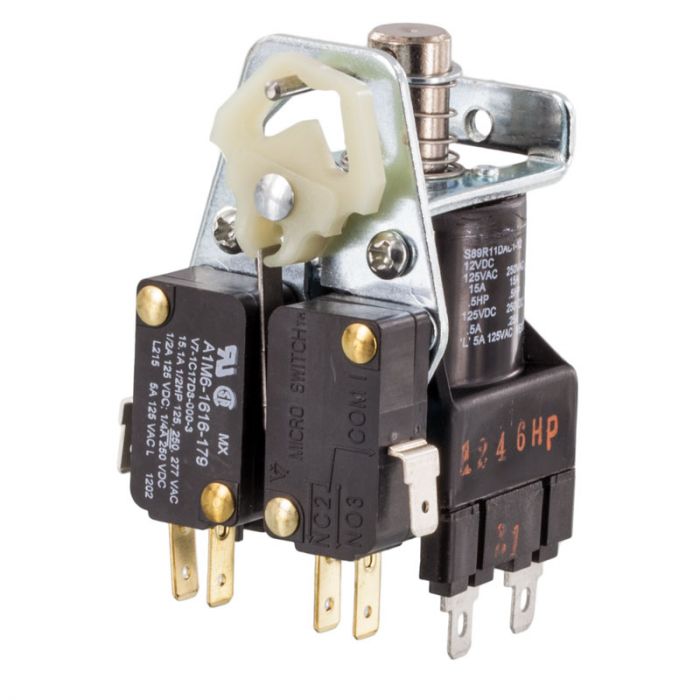

Accele 5086 12 Volt Micro Switch Latching Relay

Accele 5086 12 Volt Micro Switch Latching Relay

 Porter and Brumfield S89R11DAC1-12 latching relay

More Views

Accelevision
Free Shipping on orders $99+

Overall Rating 0 (Based on 0 reviews)

Accelevision 5086 Product Highlights

  • Mechanical solenoid controlled switch
  • Perfect for linear actuator or motor control where direction control is necessary
  • 15 amp 12 Vdc rated contacts
  • Momentary 12 Vdc rated solenoid
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Frequently Bought Together

Overview

Unit includes: 12 volt latching relay and wiring diagram

Accele 5086 12 Volt Micro Switch Latching Relay

The 5086 latching relay is a solenoid that operates two SPDT micro switches. This makes it perfect for a motor, or linear actuator controller. With the momentary switch you can trigger the relay, with another touch of a switch you will reverse the direction of travel. Each micro switch is a single pole dual throw design allowing polarity reversal.

    Features:
  • Mechanical solenoid controlled switch
  • Dual threaded metal tabs for mounting
  • 5 amp 277 Vac rated contacts, 1/2 horsepower motor at 125 Vac
  • 15 amp 12 Vdc rated contacts
  • Dual SPDT micro switches - Single pole dual throw
  • Momentary 12 Vdc rated solenoid
  • Power consumption @ 12Vdc 500 mA momentary
  • Compatible with most insulated and non insulated terminals
  • Dimensions 1-3/4" (W) x 2" (D) x 2-3/4" (H) with terminals
  • Manufactured by Porter and Brumfield part number S89R11DAC1-12

Technical Specifications

Manufacturer Accelevision
Part Number 5086
Operation Voltage 8 - 15 Volt DC
Relay type Latching relay
Current capacity 15 Amp
Pole switching type SPDT (Single pole Dual throw)
Tab type Metal Tab
Waterproof ingress protection None
Warranty 1 Year
UPC Code No
