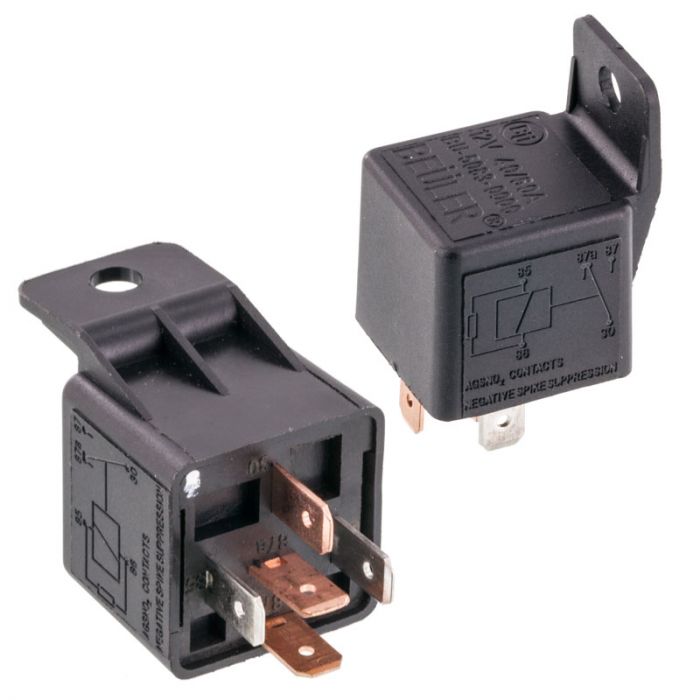

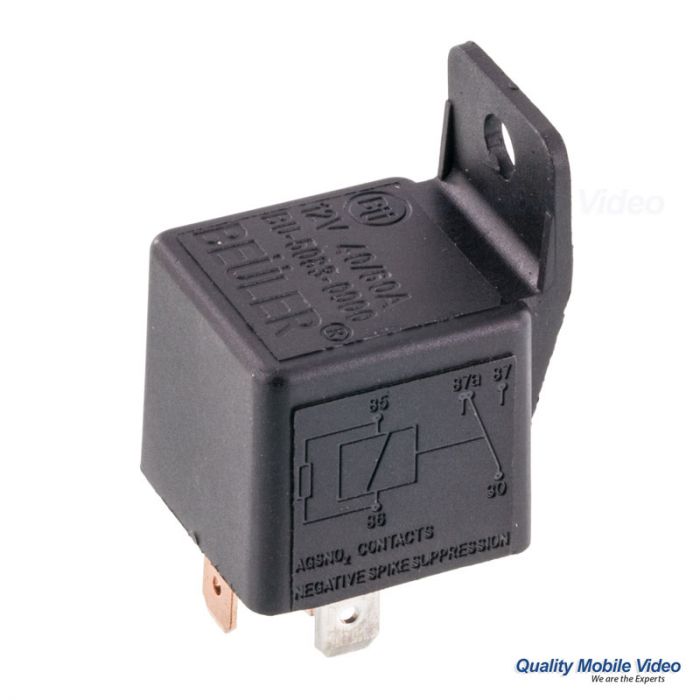

Beuler 5083 12 VDC Automotive 5-Pin Relay SPDT 40/60A with Plastic tab and Negative spike protection

Rating:
100% of 100
$2.99
In stock
SKU
5083
  • Buy 5 for $2.49 each and save 17%
  • Buy 10 for $2.39 each and save 20%
  • Buy 50 for $2.29 each and save 23%
  • Buy 100 for $2.19 each and save 27%
  • Buy 500 for $2.14 each and save 28%

Key Features

  • 40 amp / 60 amp rated contacts
  • Durable design built by Beuler automotive electronics
  • Negative spike protection, protects sensitive electronics
  • SPDT - Single pole dual throw
Unit includes: 12 volt relay with negative spike protection

Beuler 5083 12 VDC Automotive 5-Pin Relay SPDT 40/60A with Plastic tab and Negative spike protection

The Beuler 5083 12V, 40A/60A relay is the most popular relay in automotive sound and security installations. It easily switches 40 amps of current and peaks of 60 amps with minimal draw on the coil of 147 milliamps @ 12Vdc. It features a plastic tab with plastic housing. The built in negative spike protection make the relay perfect for use with sensitive electronics such as FET's or transistors that could be potentially damaged for voltage spikes. Single Pole, Dual throw for flexible installations and multiple uses.

    Features:
  • Durable design built by Beuler automotive electronics
  • Negative spike protection, protects sensitive transistors when the coil is dis-engaged and prevents momentary reverse polarity damage
  • 40 amp / 60 amp rated contacts
  • SPDT - Single pole dual throw
  • 12 Vdc rated coil with minimum 8 volt to trigger
  • Power consumption @ 12Vdc 147 mA
  • Conventional 87, 87a, 30, 86, and 85 pin locations
  • Compatible with most insulated and non insulated terminals and relay sockets
  • Dimensions 1 1/8" (w) x 1 1/4" (D) x 2" (H) with terminals and tab
    Pin configuration:
  • Pin 86 - Coil
  • Pin 85 - Coil
  • Pin 30 - Common Pin
  • Pin 87a - Normally closed pin
  • Pin 87 - Normally open pin
More Information
Manufacturer Beuler
Part Number 5083
Operation Voltage 8-15 Volt DC
Relay type 5 Pin relay
Current capacity 40 Amp / 60 Amp
Pole switching type SPDT (Single pole Dual throw)
Tab type Plastic Tab
Waterproof ingress protection None
Warranty 1 Year
Return period 30 days
Exchange period 30 days
