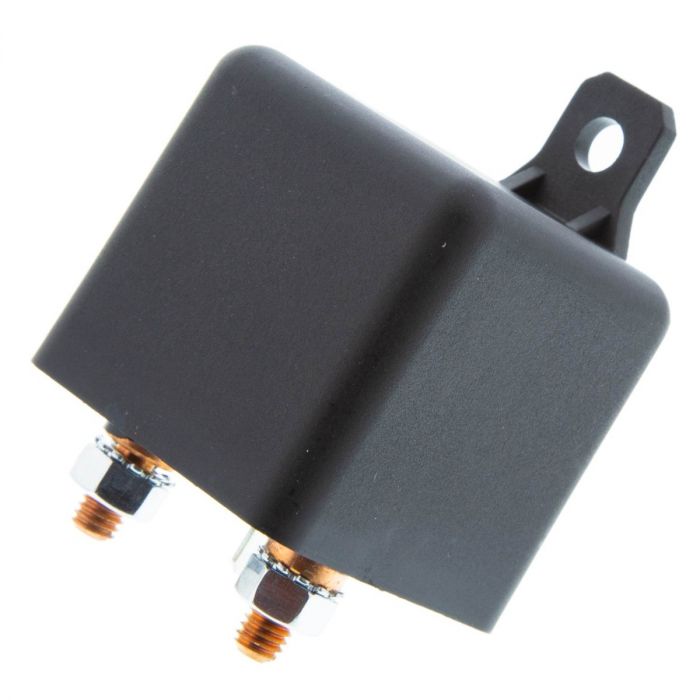

Beuler 5078H SPST 200-Amp High Current Relay
$38.99
In stock
SKU
5078H
Expert Knowledge
Talk to a specialist
- High current solenoid style relay
- 200 amp rated contacts
- SPST - Single Pole, Single Throw
- 12 Vdc rated coil with minimum 7 volt to trigger
Unit includes: 12 volt relay
Beuler 5078H 200-Amp High Current Relay
Beuler 5078H 200-Amp High Current Relay
The Beuler 5078H is a high current 12 Volt relay that is designed for large loads. This relay is commonly used in automotive electrical and security installations. It easily switches 200 amps of current with minimal draw on the coil of 400 milliamps @ 12Vdc. It features a single plastic mounting tabs and a plastic housing. Single Pole, Single throw for flexible installations and multiple uses such as accessory or electrical bus turn on.
-
Features:
- High current relay
- 200 amp rated contacts
- SPST - Single Pole, Single Throw
- 12 Vdc rated coil with minimum 7 volt to trigger
- Power consumption @ 12Vdc 400 mA
- Solenoid style with dual 1/4" male disconnects for trigger
- Solenoid style with dual 1/4" threaded studs for load
- Dimensions 1-7/8" (W) x 1-7/8" (D) x 3" (H) with terminals and tab
- Lifespan: 100,000 cycles @ 120 amps
| Manufacturer | Beuler |
|---|---|
| Part Number | 5078H |
| Operation Voltage | 12-15 Volt DC |
| Relay type | High Current |
| Current capacity | 200 Amp |
| Pole switching type | SPST (Single pole Single throw) |
| Tab type | Plastic Tab |
| Waterproof ingress protection | None |
| Warranty | 90 days |
| California Proposition 65 | |
| Return period | 30 days |
| Exchange period | 30 days |
