Quality Mobile Video WPR134R 12 VDC 5-Pin SPDT 30/40A Relay with waterproof socket

$9.99
In stock
SKU
WPR134R

Key Features

  • Bosch style SPDT 5-pin relay with waterproof socket and pre-attached leads
  • Negative spike protection, protects sensitive electronics
  • Waterproof relay and socket
  • Removable metal tab
  • 30 amp / 40 amp rated contacts
  • SPDT - Single pole dual throw
Unit includes: 12 volt relay, waterproof socket and meta mounting tab

Quality Mobile Video WPR134R 12 VDC 5-Pin SPDT 30/40A Relay with waterproof socket

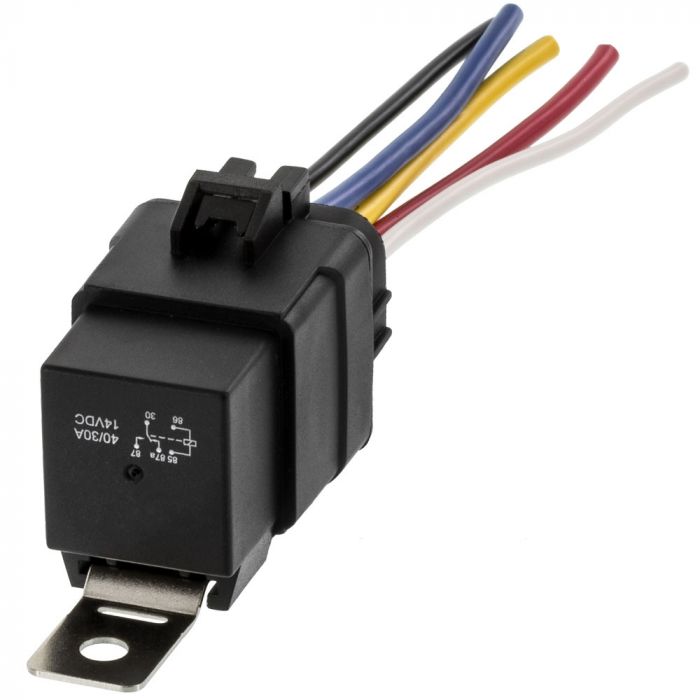

The Quality Mobile Video WPR134R relay is complete waterproof relay solution. The relay provides a completely waterproof socket with rubber seal and sealed relay housing with metal tab making it perfect for mounting in wet locations. The Bosch style 12V, 30A/40A relay is popular in automotive vehicles and other vehicles that use a 12 volt charging systems. It easily switches 30 amps of current and peaks of 40 amps with minimal draw on the coil of 152 milliamps @ 12Vdc. Single Pole, Dual throw for flexible installations and multiple uses.

    Features:
  • Bosch style SPDT 5-pin relay with waterproof socket and pre-attached leads
  • Socket features a rubber seal to prevent water intrusion
  • 4-inch prewired 12 gauge load leads and 16 gauge coil leads
  • Negative spike protection, protects sensitive transistors when the coil is dis-engaged and prevents momentary reverse polarity damage
  • Metal removable tab
  • Sealed Waterproof design
  • 30 amp / 40 amp rated contacts
  • SPDT - Single pole dual throw
  • 14 VDC rated coil with minimum 8 volt to trigger
  • Power consumption @ 12Vdc 152 mA
  • Conventional 87, 87a, 30, 86, and 85 pin locations
  • Dimensions 1-3/8" (W) x 1-3/4" (D) x 3-1/8" (H) with terminals and tab
    Pin configuration:
  • Pin 86 - Coil Positive (White wire)
  • Pin 85 - Coil Ground (Black wire)
  • Pin 30 - Common Pin (Red wire)
  • Pin 87a - Normally closed pin (Yellow wire)
  • Pin 87 - Normally open pin (Blue wire)
More Information
Manufacturer Quality Mobile Video
Part Number WPR134R
Operation Voltage 8-15 Volt DC
Relay type 5 Pin relay
Current capacity 30 Amp / 40 Amp
Pole switching type SPDT (Single pole Dual throw)
Tab type Metal Tab
Waterproof ingress protection IP66 - Dust; String Water Jets/Waves
Warranty 90 days
California Proposition 65
Return period 30 days
Exchange period 30 days
