Unit includes: 1-Channel power amplifier, Mounting hardware, Wired bass controller, 300 amp fuse and fuse holder and Instruction manual

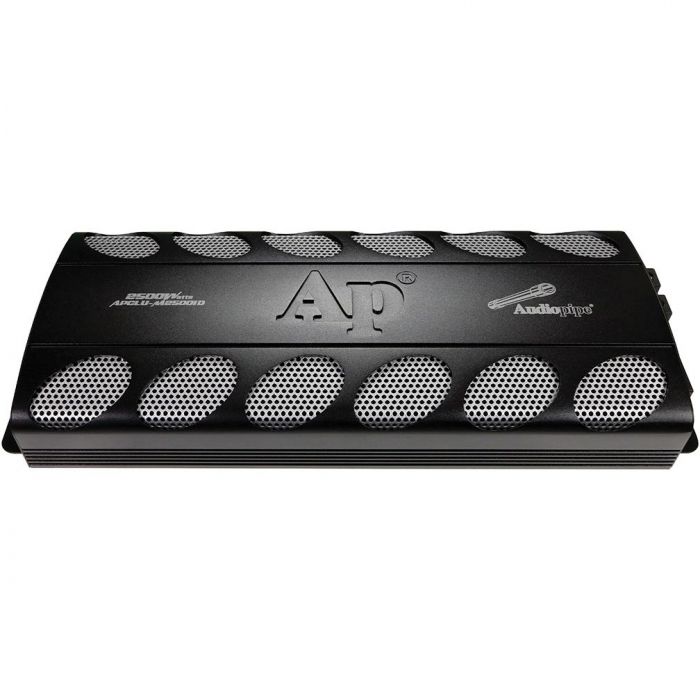

Audiopipe APCLU-M25001D 2500 Watt Class D Mono Amplifier
Features:
2500 Watts Max Power
Pulse Width Modulated MOSFET Power supply
Double side FR-4 PCB with high quality SMD components
Oversized toroids for excellent current and voltage control
3-Way Protection circuit senses internal temperature and automatically lowers input level to prevent heat damage. Short circuit protection prevent damage when speaker leads are shorted. Overload protection prevent damage from low impedance or blown woofers.
1-ohm stable
Variable Low Pass filters allow you to adjust the playback frequencies from 35Hz to 270Hz at 12dB per octave
2 channel RCA inputs accepts up to 5 volt input signals
0° and 180° phase control
Variable Bass boost controls: 0 - +9dB
Variable subsonic filter: 24dB 15Hz - 35Hz
Nickel plated terminals for all connections
Tiffany style RCA inputs
Accepts up to 16 volts DC input for maximum sound output
Maximum current draw: 226 amps
Minimum 0 Gauge power wire with 200 amp fuse
MAX Power Output:
2,500 watts
RMS Power Output:
2500W RMS @ 1 ohm
1682W RMS @ 2 ohm
960W RMS @ 4 ohm
Built in Crossover:
Variable low-pass filter: 35 - 270Hz
Subsonic filter: 15 - 35Hz
Phase Shift: 0-180 degrees
Frequency Response: 10 - 270HZ
Signal-To-Noise Ratio: 80 dB
Inputs/Outputs:
2 - Pair of RCA Outputs
1 - Pair of RCA Inputs
1 - Pair of RCA Outputs (Strapping)
1 - Remote Bass Control Input
Dimensions:
Overall Dimensions: 8" (W) x 17-3/4" (L) x 2-3/4" (H)
