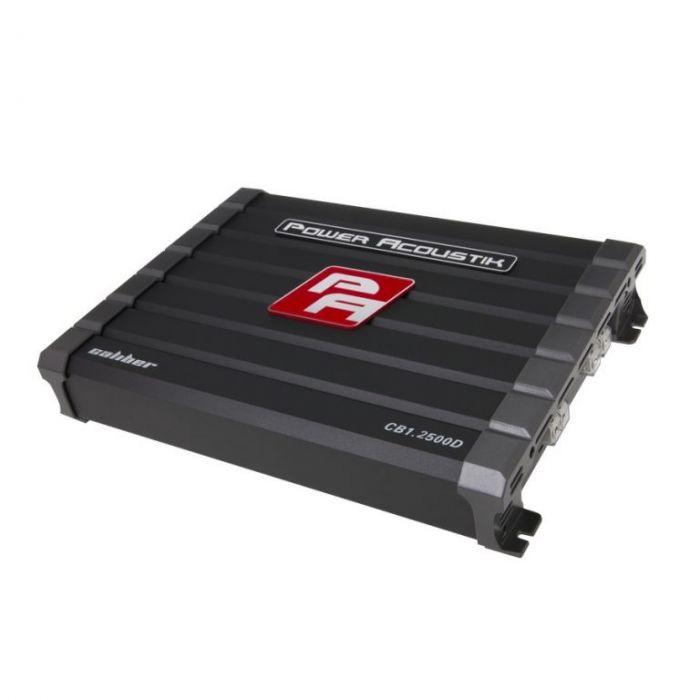

Power Acoustik Caliber Series CB1-2500D Class-D Monoblock Amplifier - 2,500 Watts
Expert Knowledge
Talk to a specialist
- Class-D Monoblock Amplifier
- Designed as a dedicated full range audio amplifier
- Stable in 1 ohm, 2 ohm and 4 ohm loads
- 1-Ohm: 1,250 watts x 1
- 2-Ohms: 850 watts x 1
- 4-Ohms: 500 watts x 1
- High/Speaker Level & Low Level/RCA Input
Power Acoustik CB1-2500D Class D Monoblock Amplifier - 2,500 Watts
- Features:
- Class-D Monoblock Amplifier
- Pulse Width Modulated MOSFET power supply
- Stable in 1 ohm, 2 ohm and 4 ohm loads
- 3-way protection circuitry (Thermal, Overload, and Speaker short protection)
- High/Speaker Level & Low Level/RCA Input
- Bridge 2 Monoblocks Together for Double Power
- Variable input gain control with low level input voltage up to 6 Volts
- Nickel plated low level RCA inputs
- Nickel plated low level RCA outputs
- Variable low-pass crossover: 50 - 400Hz, 12 dB/octave
- Variable high-pass crossover: 50 - 400Hz, 12 dB/octave
- Variable bass boost: 0dB / +6dB / +12dB
- Gain Control
- Color: Satin Silver Chassis
- Inputs and Outputs:
- RCA low level inputs and outputs (250 mV - 6 V)
- Input sensitivity is 250 mV to 6V
- 8 AWG to 18 AWG speaker connections
- 4 AWG to 8 AWG power connections (4 Gauge Recommended)
- MAX Power Output:
- 1-Ohm: 2,500 watts x 1
- RMS Power Output:
- 1-Ohm: 1,250 watts x 1
- 2-Ohms: 850 watts x 1
- 4-Ohms: 500 watts x 1
- Built in Crossover:
- Variable low-pass filter: 40 - 180 Hz, 12 dB/octave
- Subsonic filter: 10 - 50 Hz, 12 dB/octave
- Variable Bass Boost: 0 to +12 dB bass boost at 50 Hz
- Dimensions:
- Overall Dimensions: 9.5"W x 12"L x 2"H
| Manufacturer | Power Acoustik |
|---|---|
| Part Number | CB1-2500D |
| Amplifier Topology Class | Class D |
| Number of Channels | 1 Channel |
| Total RMS Power at 1 ohm | 1,250.00 |
| Total RMS Power at 2 ohm | 850.00 |
| Total RMS Power at 4 ohm | 500.00 |
| RMS Output per Channel (x1 at 4 ohms) | 500.00 Watts |
| Minimum Impedance in Bridged Mode | 1 ohm |
| Strappable Amplifier | No |
| RCA Pre-amp Audio inputs | 2 Pairs (Front, Rear) |
| Gain Control | Yes |
| Built in Crossover | High-pass, Low-pass |
| Cooling Fan | No |
| Color | Black |
| Warranty | 1 Year |
| Recommended Power Wire Gauge | 0 Gauge |
| CEA2006 Compliant | No |
| UPC Code | 709483054165 |
| Return period | 30 days |
| Exchange period | 30 days |
