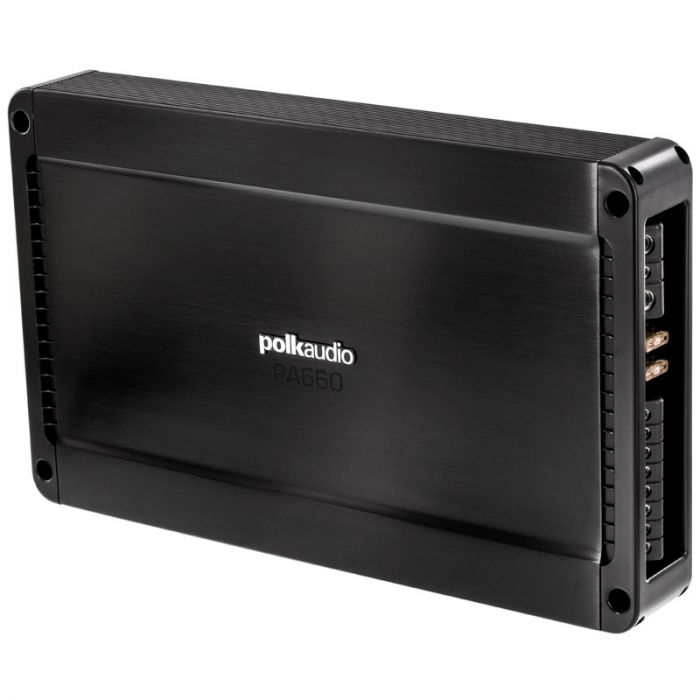

Polk Audio PA660 Class AB 4 Channel Amplifier - 600 watts
Expert Knowledge
Talk to a specialist
- Class AB Bridgeable Amplifier 600 Watts
- Full range 4 Channels operation
- Stable and High-Speed MOSFET power supply
- Nickel plated terminals for maximum signal transfer
- Corrosion-Free, Environmental Friendly Stainless Steel Construction
The Polk Audio PA660.4 is a conventional type of car amplifier that features an incredibly small chassis, yet with a sound output that is simply amazing. The sheer size of this amplifier makes it easy to install practically anywhere within your ride. Given a great finish in black anodized brushed aluminum heat sink, the amplifier boasts great mass given its puny size. The messy wiring and connections are well camouflaged, thanks to the integrated molded end caps. With the power and speaker connections located on one end, and a pair of 25A ATC type fuses at the other, the Polk Audio PA660.4 comes with inputs controls and adjustments located conveniently.
The built in 12 decibel octave crossovers convey the all-pass and high pass filters to the front channels, while the rear channels get the filters for the low or high pass, including all pass setting. With the crossover frequency range set at between 50 Hz to 500 Hz for all the configurations, the bass boost that comes for the front and rear channels is independently adjustable. Thanks to the 2/4 channel switch, you have the liberty of driving all four channels with a single pair of RCAs whenever required. The conventional class AB design is based on high current MOSFET technology and also features a couple of complementary bi-polar transistors for each channel inside the amplifier. You can also have the rear channels bridged to a subwoofer and have the crossovers adjusted to suit your loudspeakers, and enjoy the divine music emanating as you drive your ride around town.
Unit includes: Car Amplifier, Mounting hardware, and Instruction manualPolk Audio PA660 Class AB 4 Channel Amplifier - 600 watts
- Features:
- Bridgeable Class AB Technology for a cooler operation
- 600 watts Full Range 4 Channel Operation
- Stable High-Speed MOSFET power supply
- Short Circuit, DC Voltage and Thermal Protection
- Maximum signal transfer with the help of Nickel plated terminal
- Corrosion-Free, Environmental Friendly Stainless Steel Construction
- Variable (0dB to +8dB) Hz Bass Boost
- Total dynamic power of 600 watts
- 0.90% Distortion power rating and effective damping factor >100
- 250mV-5V (rear) dB Maximum Sensitivity
- Minimum bridged impedance @ 4 ohms and minimum un-bridged impedance @ 2 ohms
- 75 dBA of Signal-to-noise ratio
- 20Hz-20kHz of total frequency response
- Max Power Output:
- 600 watts
- RMS Power Output:
- 150 watts @ 4 ohms bridged operation
- 75 watts @ 4 ohms un-bridged operation
- 85 watts @ 2 ohms un-bridged operation
- Inputs and Outputs:
- 12dB/oct of High-Pass Filter Slope
- 12dB/oct of Low-Pass Filter Slope
- Dimensions:
- 2”(H) X 13.25”(W) X 8.13”(L)
- Warranty Duration:
- Basic Warranty: 1 year
| Manufacturer | Polk Audio |
|---|---|
| Part Number | PA660 |
| Amplifier Topology Class | Class AB |
| Number of Channels | 4 Channel |
| Amplifier Bridging | Bridgable @ 4 ohms |
| Minimum Impedance in Bridged Mode | 4 ohm |
| Minimum Impedance in Un-Bridged Mode | 2 ohm |
| Strappable Amplifier | No |
| Preamp voltage | 150 mV - 12 V |
| Speaker level inputs | Yes |
| Gain Control | Yes |
| Bass Knob / Remote Gain | No |
| Built in Crossover | High-pass, Low-pass |
| Cooling Fan | No |
| Color | Black |
| Warranty | 1 Year |
| Recommended Power Wire Gauge | 4 Gauge |
| CEA2006 Compliant | No |
| Return period | 30 days |
| Exchange period | 30 days |
