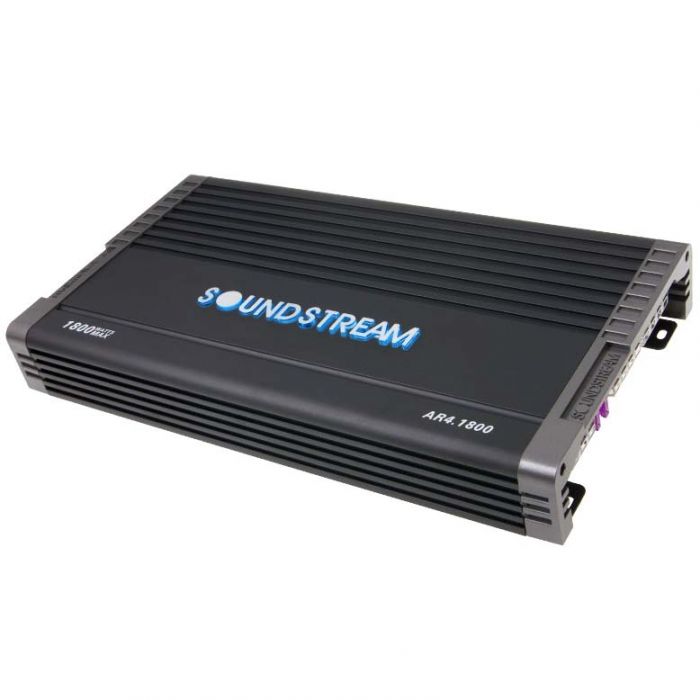

DISCONTINUED - Soundstream AR4.1800 Arachnid 1800 Watt 4 Channel Class AB Amplifier
$99.99
Out of stock
SKU
AR41800
Expert Knowledge
Talk to a specialist
- 1800 Watt 4 Channel Class AB Amplifier
- 2-ohm Stereo and 4-ohm Bridged Impedance Stability
- Continuous Power Output (2 Ω): 225 Watts RMS x 4
- Continuous Power Output (4 Ω): 180 Watts RMS x 4
- 4-Channel, 3-Channel, or 2-Channel operation
- Blue LED Illumination Accent Lighting
Unit includes: 4 Channel Amplifier, Installation Hardware, and Instruction Manual
Soundstream AR4.1800 Arachnid 1800 Watt 4 Channel Class AB Amplifier
Soundstream AR4.1800 Arachnid 1800 Watt 4 Channel Class AB Amplifier
-
Features:
- Soundstream 1800 Watt 4 Channel Class AB Amplifier
- Amplifier will operate with 4-ohm or 2-ohm loads
- 4 Channel and 2 Channel capable
- Hybrid Aluminum Alloy Heatsink for Optimum Dissipation
- Blue Soundstream LED Illumination
- MOSFET Power Supply w/ Audiophile Grade IRTM Transistors
- Military Grade SMT PCB Maintains Dynamic Performance
- Direct Short, Thermal, & Overload Circuits Protect Amplifier
- Nickel plated RCA inputs and loop through outputs
- 200mV-6V High Speaker Level or Low Level RCA Inputs
- 4 Gauge power wire connections
- 8 Gauage speaker wire outputs
- Low-level thru-pass output to Daisy chain multiple amplifiers
- Variable 12dB Low, Band-Pass, & Subsonic Crossovers
- Pre-Amp features:
- Variable Bass Boost (0 - 12 dB)
- Variable High-pass electronic crossover (120 - 3000 Hz)
- Variable Low-pass electronic crossover (50 - 250 Hz)
-
Inputs and Outputs:
- Four-channel operation (4-Channel input)
- Nickel-plated 4 Channel RCA level inputs
- None Low-level thru-pass output to Daisy chain multiple amplifiers
- Input Sensitivity Low level: 200 mV - 6 V
-
Max Power Output:
- Total Power Output: 1800 Watts
-
RMS Power Output:
- Continuous Power Output (2 Ω, ≤ 1% THD+N): 180 W x 4
- Continuous Power Output (4 Ω, ≤ 1% THD+N): 225 W x 4
- RMS Power Bridged Output:
- Continuous Power Output (4 Ω, ≤ 1% THD+N): 450 W x 2
- Dimensions:
- Overall Dimensions: 2 inch (H) x 15.75 inch (L) x 8.5 inch (W)
| Manufacturer | Soundstream |
|---|---|
| Part Number | AR4.1800 |
| Amplifier Topology Class | Class AB |
| Number of Channels | 4 Channel |
| Total RMS Power at 1 ohm | $0.00 |
| Total RMS Power at 2 ohm | $720.00 |
| Total RMS Power at 4 ohm | $900.00 |
| RMS Output per Channel (x1 at 4 ohms) | $0.00 |
| RMS Output per Channel (x2 at 4 ohms) | $450.00 |
| RMS Output per Channel (x4 at 4 ohms) | $225.00 |
| Total Peak Power Output | $1,800.00 |
| Amplifier Bridging | Bridgable @ 4 ohms |
| Minimum Impedance in Bridged Mode | 4 ohm |
| Minimum Impedance in Un-Bridged Mode | 2 ohm |
| Strappable Amplifier | No |
| Strappable Power Output | No |
| RCA Pre-amp Audio inputs | 2 Pairs (Front, Rear) |
| RCA Pre-amp Audio outputs | 1 Pair |
| Preamp voltage | 200 mV - 6 V |
| Speaker level inputs | Yes |
| Gain Control | Yes |
| Bass Knob / Remote Gain | No |
| Built in Crossover | High-pass, Low-pass |
| Cooling Fan | No |
| Color | Black |
| Warranty | 1 Year |
| Recommended Power Wire Gauge | 4 Gauge |
| Overall Height | $2.00 |
| Overall Length | $15.75 |
| Overall Width | $8.50 |
| CEA2006 Compliant | No |
| UPC Code | 7.09483E+11 |
| Return period | 30 days |
| Exchange period | 30 days |
