Axxess AXDIS-TY2 2012 - 2022 Toyota radio replacement interface with steering wheel and navigation outputs
$179.99
In stock
SKU
AXDIS-TY2
Expert Knowledge
Talk to a specialist
- 2012 - 2022 Toyota complete radio replacement interface for plug-and-play installation of an aftermarket car radio
- Built in steering wheel interface controller
- Provides accessory (12-volt 10-amp)
- Retains R.A.P. (retained accessory power)
- Provides NAV outputs (parking brake, reverse, speed sense)
- Designed for amplified and non-amplified systems
The Axxess AXDIS-TY2 provides the connections needed to install an aftermarket radio in select 2012–2022 Toyota vehicles while retaining important factory functions. Designed for both amplified and non-amplified audio systems, it retains steering-wheel audio controls, balance and fade, and retained accessory power. The interface also supplies 12-volt, 10-amp accessory power and navigation outputs for the parking brake, reverse gear, and vehicle-speed signal. Its auto-detect steering-wheel-control technology simplifies setup, while the Micro-B USB port allows firmware updates. Always verify compatibility with the vehicle-specific application guide before installation.

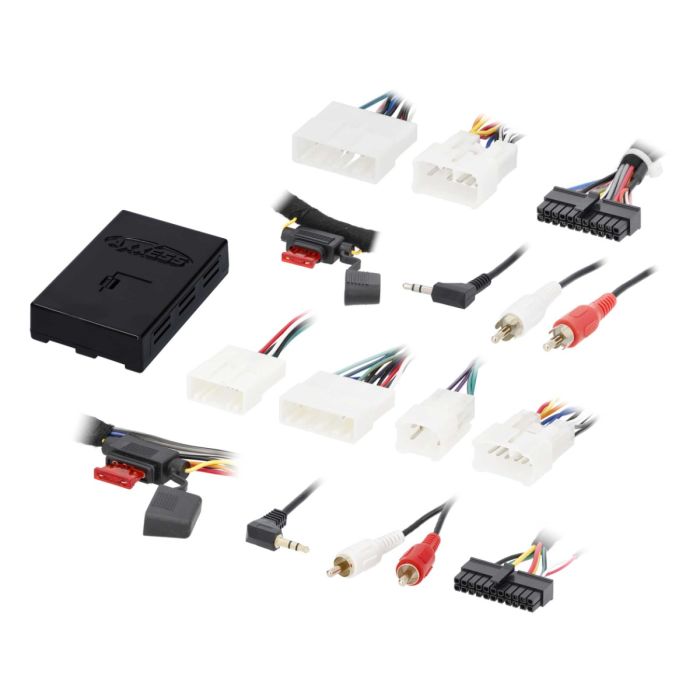

Unit includes: AXDIS-TY2 Interface control box, AXDIS-TY2 harness, and Instruction manualAxxess AXDIS-TY2 2012 - 2022 Toyota radio replacement interface with steering wheel and navigation outputs
Features:
- Easily remove the factory stereo in an otherwise impossible situation and replace it with an aftermarket stereo and retain all of the factory functions
- Provides accessory (12-volt 10-amp)
- Retains R.A.P. (retained accessory power)
- Used in amplified or non-amplified audio systems
- Built in steering wheel interface controller
- Provides NAV outputs (parking brake, reverse, mute, V.S.S.)
- High level speaker input
- USB updatable
- Retains balance and fade
- Axxess AXDIS-TY2 2012 - 2022 Toyota radio replacement interface Instruction manual
Connections:
- Yellow - 12V Constant
- Red - 12V Accessory
- Black - Ground
- Orange/White - Dash Light Dimmer/Illumination
- Blue/White - Amplifier turn on
- Blue - Power antenna turn on
- White RCA - Left Auxiliary input
- Red RCA - Right Auxiliary input
- White - Left Front Speaker (+)
- White with Black Stripe - Left Front Speaker (-)
- Gray - Right Front Speaker (+)
- Gray with Black Stripe - Right Front Speaker (-)
Fitments:
-
Toyota
- 2014 - 2019 Toyota 4Runner
- 2013 - 2018 Toyota Avalon
- 2012 - 2017 Toyota Camry
- 2015 - 2019 Toyota Corolla
- 2014 - 2019 Toyota Highlander
- 2013 - 2016 Toyota Prius
- 2013 - 2015 Toyota Prius Plug-In
- 2013 - 2016 Toyota Prius V
- 2014 - 2018 Toyota RAV4
- 2013 - 2019 Toyota Sequoia
- 2015 - 2017 Toyota Sienna
- 2014 - 2019 Toyota Tacoma
- 2014 - 2019 Toyota Tundra
- 2013 - 2016 Toyota Venza
| Manufacturer | Axxess |
|---|---|
| Part Number | AXDIS-TY2 |
| Vehicle Year | 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022 |
| Vehicle Brand | Toyota |
| UPC Code | 086429384686 |
| Return period | 30 days |
| Exchange period | 30 days |
