Axxess AXTC-FD2 2012 - and Up Ford radio replacement CAN-BUS interface with steering wheel and navigation outputs
$149.99
In stock
SKU
AXTC-FD2
Expert Knowledge
Talk to a specialist
- Ford complete radio replacement interface for plug-and-play installation of an aftermarket car radio
- Integrated steering wheel control interface for direct plug in to aftermarket radio
- Provides NAV outputs (parking brake, reverse, and speed sense)
- Retains the 3.5mm AUX-IN jack
- Includes 5v factory amplifier step-down

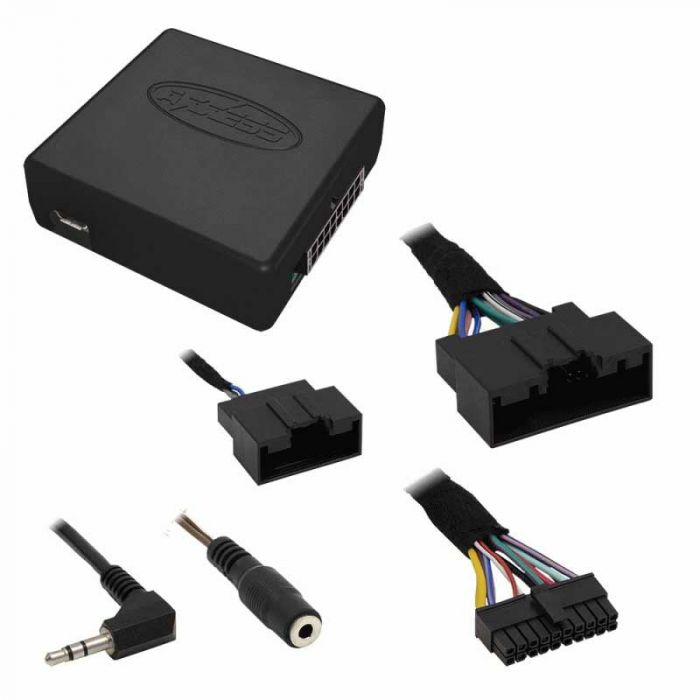

Unit includes: AXTC-FD1 Interface control box, 16 pin wire harness, 18 pin to 12 pin and 24 pin harness, Female 3.5mm connector with stripped leads, and Instruction manual
Axxess AXTC-FD2 2012 - and Up Ford radio replacement CAN-BUS interface with steering wheel and navigation outputs
Axxess AXTC-FD2 2012 - and Up Ford radio replacement CAN-BUS interface with steering wheel and navigation outputs
- Features:
- Easily remove the factory stereo in an otherwise impossible situation and replace it with an aftermarket stereo and retain all of the factory functions
- Provides accessory (12-volt 10-amp)
- Retains R.A.P. (retained accessory power)
- Retains chimes
- Provides NAV outputs (parking brake, reverse, mute, V.S.S.)
- Integrated steering wheel control interface for direct plug in to aftermarket radio
- Retains memory settings even after battery disconnection or interface removal (non volatile memory)
- Retains the 3.5mm AUX-IN jack
- Includes 5v factory amplifier step-down
- High level speaker input
- USB updatable
- Axxess AXTC-VW2 2015 - and Up Volkswagen radio replacement interface Instruction manual
-
Connections:
- Yellow - 12V Constant
- Red - 12V Accessory
- Black - Ground
- Orange/White - Dash Light Dimmer/Illumination
- Blue/White - Amplifier turn on
- Brown - Mute connection
- Light green - (-) Parking brake lead
- Blue/Pink - VSS (Vehicle speed sensor)
- Black/Yellow - OnStar volume adjustment
- White RCA - Left Auxiliary input
- Red RCA - Right Auxiliary input
- Green/Purple - (+) Reverse trigger
- Green - Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White - Left Front Speaker (+)
- White with Black Stripe - Left Front Speaker (-)
- Purple - Right Rear Speaker (+)
- Purple with Black Stripe - Right Rear Speaker (-)
- Gray - Right Front Speaker (+)
- Gray with Black Stripe - Right Front Speaker (-)
- White RCA - Left Subwoofer signal
- Red RCA - Center Channel signal (Note: If this jack is not present on the aftermarket radio, just leave be. Only the center channel speaker will be lost.)
-
Fitments:
Ford
- 2013 - 2016 Escape
- 2012 - 2014 Focus
- 2019 - and Up Ranger
- 2014 - 2016 Transit Connect
| Manufacturer | Axxess |
|---|---|
| Part Number | AXTC-FD2 |
| Integration Module | Radio Replacement and Steering Wheel |
| Wiring harness function | Replace Factory Radio |
| Steering Wheel Control | Yes, Built in control |
| Speaker level inputs | Yes |
| Warranty | 1 Year |
| Vehicle Year | 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020 |
| Vehicle Brand | Ford |
| UPC Code | 086429375769 |
| Return period | 30 days |
| Exchange period | 30 days |
