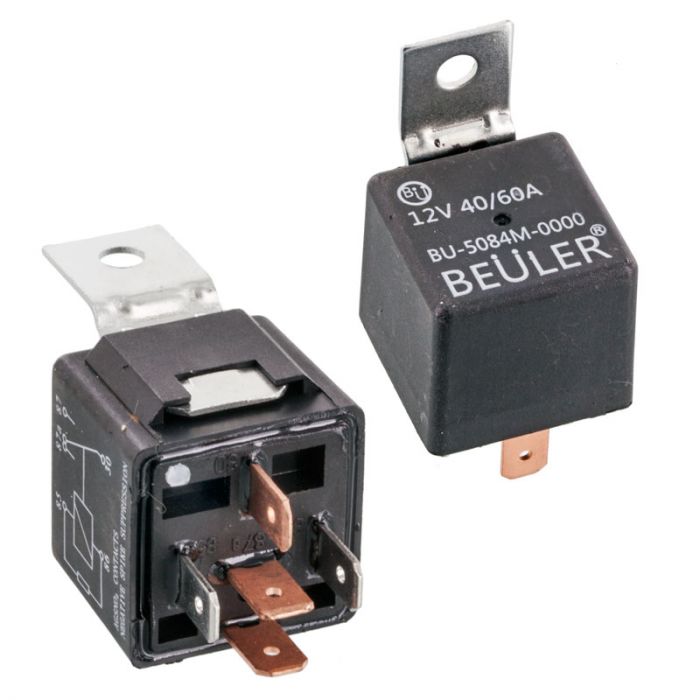

Beuler BU5084M Waterproof 12 VDC Automotive 5-Pin Relay SPDT 40/60A with Metal tab and Negative spike protection

Rating:
97 % of 100
$4.99
In stock
SKU
BU5084M

Key Features

  • 12 VDC rated coil with minimum 8 volt to trigger
  • Negative spike protection, protects sensitive electronics
  • Waterproof design
  • Bosch style relay
  • Removable metal tab is included
  • 40 amp / 60 amp rated contacts
  • SPDT - Single pole dual throw
Unit includes: 12 volt relay and Metal tab

Beuler BU5084M Waterproof 12 VDC Automotive 5-Pin Relay SPDT 40/60A with Metal tab and Negative spike protection

The Beuler BU5084M relay is unique being that it is a waterproof 12 volt relay with removable metal tab. The Bosch style 14V, 40A/60A relay is popular in automotive vehicles and other vehicles that use a 12 volt charging systems. It easily switches 40 amps of current and peaks of 60 amps with minimal draw on the coil of 140 milliamps @ 14Vdc. It features a removable metal tab with waterproof sealed plastic housing. Single Pole, Dual throw for flexible installations and multiple uses.

    Features:
  • Imported Bosch style relay
  • Durable design built by Beuler automotive electronics
  • Negative spike protection, protects sensitive transistors when the coil is dis-engaged and prevents momentary reverse polarity damage
  • Removable metal tab is included
  • Sealed Waterproof design
  • 40 amp / 60 amp rated contacts
  • SPDT - Single pole dual throw
  • 12 VDC rated coil with minimum 8 volt to trigger
  • Power consumption @ 14Vdc 140 mA
  • Conventional 87, 87a, 30, 86, and 85 pin locations
  • Compatible with most insulated and non insulated terminals and relay sockets
  • Dimensions 1-1/8" (W) x 1-1/4" (D) x 2-1/16" (H) with terminals and Metal tab
    Pin configuration:
  • Pin 86 - Coil
  • Pin 85 - Coil
  • Pin 30 - Common Pin
  • Pin 87a - Normally closed pin
  • Pin 87 - Normally open pin
More Information
Manufacturer Beuler
Part Number BU5084M
Operation Voltage 8-15 Volt DC
Relay type 5 Pin relay
Current capacity 40 Amp / 60 Amp
Pole switching type SPDT (Single pole Dual throw)
Tab type Removable Metal Tab
Waterproof ingress protection Waterproof
Warranty 1 Year
California Proposition 65
Return period 30 days
Exchange period 30 days
Write Your Own Review
You're reviewing:Beuler BU5084M Waterproof 12 VDC Automotive 5-Pin Relay SPDT 40/60A with Metal tab and Negative spike protection
Your Rating
Customer Questions
What size are the quick connect terminals on this relay?
These use standard 0.25 inch female disconnects.
