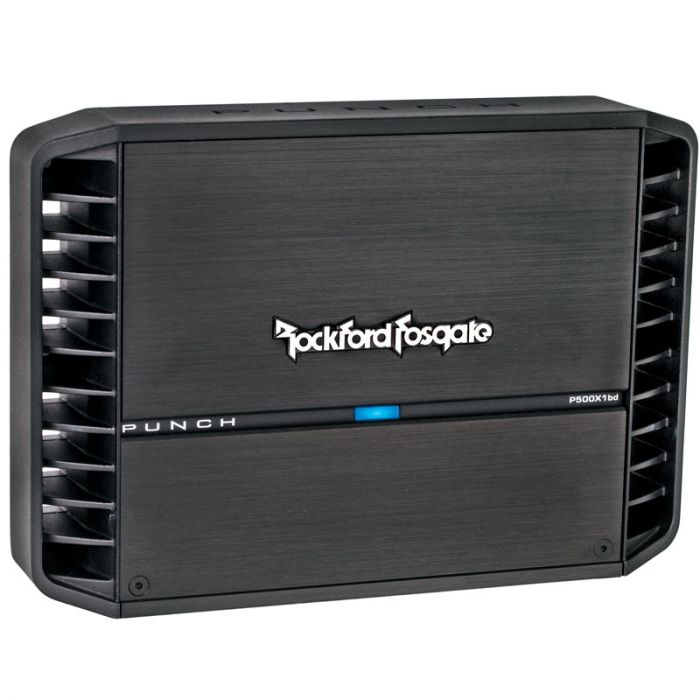

Rockford Fosgate P500X1bd 500 Watt Mono Channel Class BD Car Amplifier

Rating:
100% of 100
$320.99
In stock
SKU
P500X1bd

Key Features

  • 500 Watt Punch Series Monoblock Class BD Car Amplifier
  • 150 watts RMS x 1 Channels at 4 ohms
  • 500 watts RMS x 1 Channels at 1 ohms
  • High level input capable with an Auto Turn-On circuit
  • On-board Punch equalizer and is remote Punch Level Control ready
  • DSM, NOMAD, MESHA3 and C.L.E.A.N. technologies
  • Hidden top mounted control panel and a cast aluminum heatsink
Unit includes: Car Amplifier, Mounting hardware, and Instruction manual

Rockford Fosgate P500X1bd 500 Watt Mono Channel Class BD Car Amplifier:

Features:
  • 500 Watt Punch Series Mono Class BD Car Amplifier
  • MOSFET power supply for incredible power
  • LED indicators: Power, Protect, and Thermal
  • Balanced Differential inputs - filters and eliminates noise picked up from the RCA signal cables as they are run through the vehicle
  • C.L.E.A.N circuit that allows you to properly optimize input signal to output capability for proper signal to noise ratio and prevent damaging distortion
  • MEHSA3 utilizes a proprietary process that yields up to five times better heat transfer than traditional FET mounting techniques that lowers distortion, increases durability and prolongs the output device life span
  • DSM - An industry-leading manufacturing process, DSM utilizes high-speed robotics, high-quality 1% tight-tolerance parts and large board traces which improves efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature
  • NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances
  • Provides two way protection circuitry, which includes overload and speaker short protection
  • Integrated heavy-duty aluminum alloy vented heat sink for utmost heat dissipation
  • Requires minimum 4 gauge power and ground wiring for installation
  • CEA-2006 compliant amplifier
  • Frequency Response: 20Hz to 250Hz +/- 1.0dB


Inputs and Outputs:
  • Mono channel operation
  • Nickel-plated RCA level inputs
  • Nickel-plated RCA level outputs
  • Input sensitivity is 150 mV to 12V
  • Captive C-Clamp 8 AWG to 18 AWG speaker connections
  • Captive C-Clamp 4 AWG power connections


Max Power Output:
  • 1-Ohm: 500 Watts x 1 channel


RMS Power Output:
  • 2-Ohms: 300 Watts x 1 channel
  • 4-Ohm: 150 Watts x 1 channel


Tone Controls:
  • Optional PLC2 wired remote bass level control
  • Punch EQ2 Bass Boost: 0dB to +18 dB at 45 Hz


Built in Crossover:
  • Low-pass filter: 50 Hz - 250 Hz @ 12 dB/octave Butterworth
  • Infrasonic filter: 28 Hz @ 12dB/octave
  • All Pass


Dimensions:
  • Overall Dimensions: 2.38” (H) x 7.76” (D) x 11.03” (W)
More Information
Manufacturer Rockford Fosgate
Part Number P500X1bd
Amplifier Topology Class Class BD
Number of Channels 1 Channel
Total RMS Power at 1 ohm 500.00
Total RMS Power at 2 ohm 300.00
Total RMS Power at 4 ohm 150.00
Total Peak Power Output 787.00 (Watts)
Amplifier Bridging Not Bridgable
Minimum Impedance in Un-Bridged Mode 2 ohm
Strappable Amplifier No
RCA Pre-amp Audio inputs 1 Pair
RCA Pre-amp Audio outputs 1 Pair
Preamp voltage 5 volts
Speaker level inputs Yes
Gain Control Yes
Bass Knob / Remote Gain Optional
Built in Crossover High-pass, Low-pass
Cooling Fan No
Color Black
Warranty 1 Year
Recommended Power Wire Gauge 4 Gauge
CEA2006 Compliant No
UPC Code 780687332471
Return period 30 days
Exchange period 30 days
