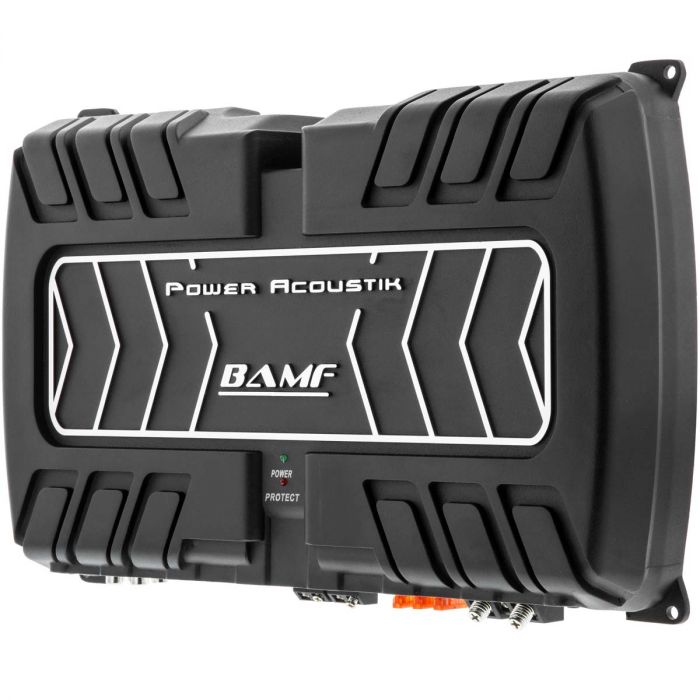

Power Acoustik BAMF1-5000D 1-Channel Class-D 5000 Watt Car Amplifier
- BAMF Series Class D 1-Channel mono-block amplifier
- Strap-able allows you to bridge 2 of amps together
- Limited frequency response dedicated high-power subwoofer amplifier
- Pulse Width Modulated MOSFET power supply with Audiophile Grade IRTM Transistors
- Variable low-pass crossover
- 1 Ohm stable for maximum subwoofer output
- 5000 watts maximum output
- 2500 Watts x 1 channel @ 1-Ohm
-
Features:
- BAMF Series Class D 1-Channel mono-block amplifier
- Pulse Width Modulated MOSFET power supply with Audiophile Grade IRTM Transistors for excellent sound quality
- Military Grade SMT PCB Maintains Dynamic Performance
- Limited frequency response dedicated high-power subwoofer amplifier
- Die-Cast Aluminum Alloy Heatsink for Optimum Heat Dissipation and custom look
- 1 Ohm stable for maximum subwoofer output and wiring flexability
- Strap-able allows you to bridge 2 of these together for ridiculous power output
- 3-way protection circuitry (Thermal, Overload, and Speaker short protection)
- Multi-color LED (green) for power and (red) for protect
- Nickel plated low level inputs and speaker level inputs
- Variable low-pass crossover
- Variable subsonic filter
- Variable bass boost 0dB - +18dB
- Phase control: 0° -180°
- Includes remote subwoofer level control
- Signal to noise ratio: 103 dB
-
Inputs and Outputs:
- 2 - RCA audio inputs (250mV - 5V)
-
Max Power Output:
- 5000 watts total
-
RMS Power Output:
- 1-Ohms: 2500 Watts x 1 channel
- 2-Ohms: 1700 Watts x 1 channel
- 4-Ohms: 1100 Watts x 1 channels
-
Built in Crossover:
- Frequency Response: 9 Hz - 250 Hz
- Variable low-pass crossover: 40 Hz - 200 Hz 24 dB/octave
- Variable subsonic filter: 20 Hz - 50 Hz 24 dB/octave
-
Dimensions:
- Overall Dimensions: 2-1/4” (H) x 8-1/2” (D) x 13-1/4” (W)
-
Fuse rating:
- Recommended Fuse: 40A x 3
Manufacturer | Power Acoustik |
---|---|
Part Number | BAMF1-5000D |
Amplifier Topology Class | Class D |
Number of Channels | 1 Channel |
Total RMS Power at 1 ohm | 2,500.00 |
Total RMS Power at 2 ohm | 1,700.00 |
Total RMS Power at 4 ohm | 1,100.00 |
Total Peak Power Output | 5,000.00 (Watts) |
Amplifier Bridging | Not Bridgable |
Minimum Impedance in Un-Bridged Mode | 1 ohm |
Strappable Amplifier | No |
Strappable Power Output | 10000 Watts |
RCA Pre-amp Audio inputs | 1 Pair |
RCA Pre-amp Audio outputs | 1 Pair |
Preamp voltage | 5 volts |
Speaker level inputs | No |
Gain Control | Yes |
Bass Knob / Remote Gain | Yes |
Built in Crossover | Low-pass, None |
Cooling Fan | No |
Color | Black |
Warranty | 1 Year |
Recommended Power Wire Gauge | 0 Gauge |
CEA2006 Compliant | No |
UPC Code | 709483052741 |
Return period | 30 days |
Exchange period | 30 days |
