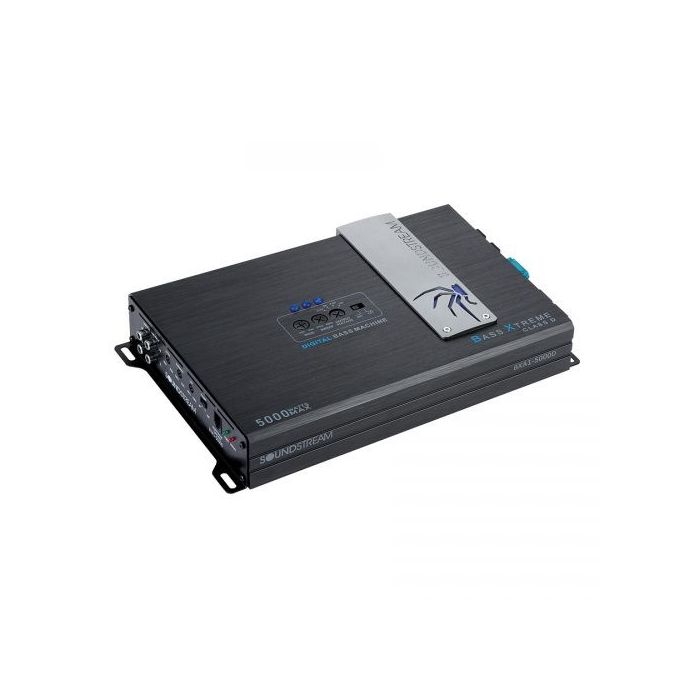

Soundstream BXA1-5000D Bass Xtreme 5,000 Watt Monoblock Class D Amplifier
Expert Knowledge
Talk to a specialist
- Bass Xtreme 5,000W Class D Monoblock Amplifier
- 1-Ohm: 1650W RMS
- 2-Ohms: 1100W RMS
- 4-Ohms: 700W RMS
- Digital Bass Reconstruction Processor Built-in
- 27Hz-63Hz Variable Center/Sweep Frequency
- Variable Q/Width to Broaden or Narrow the Bandwidth
Soundstream BXA1-5000D Bass Xtreme 5,000 Watt Monoblock Class D Amplifier
- Features:
- Bass Xtreme 5,000W Class D Monoblock Amplifier
- Digital Bass Reconstruction Processor Built-in
- 27Hz-63Hz Variable Center/Sweep Frequency
- Variable Q/Width to Broaden or Narrow the Bandwidth
- 2.5V-10V Output Voltage for Optimum Bass Tuning
- LED MAX BASS Indicators Warning of Extreme Levels
- 1-ohm Minimum Impedance Monoblock Operation
- Bridge 2 Monoblocks Together for Double Power!
- MOSFET Power Supply w/ Audiophile Grade IRTM Transistors
- Military Grade SMT PCB Maintains Dynamic Performance
- Direct Short, Thermal, & Overload Circuits Protect Amplifier
- 200mV-6V High Level or Low Level RCA Input & Output
- Variable 12dB Low Pass Crossover Blocks High Frequencies
- Variable 12dB Subsonic Crossover Protects Subwoofer
- 1800 Phase Shift to Match Polarity of System Speakers
- Remote Bass Control Included
- MAX Power:
- 5,000 Watts
- RMS Power @ 14.4v:
- 1-Ohm: 1,650 Watts
- 2-Ohms: 1,100 Watts
- 4-Ohms: 700 Watts
- Dimensions:
- 8.2"W x 11.8"L x 2.2"H
| Manufacturer | Soundstream |
|---|---|
| Part Number | BXA1-5000D |
| Amplifier Topology Class | Class D |
| Total RMS Power at 1 ohm | 1,650.00 |
| Total RMS Power at 2 ohm | 1,100.00 |
| Total RMS Power at 4 ohm | 700.00 |
| Strappable Amplifier | No |
| RCA Pre-amp Audio inputs | 1 Pair |
| RCA Pre-amp Audio outputs | 1 Pair |
| Speaker level inputs | No |
| Gain Control | Yes |
| Bass Knob / Remote Gain | Yes |
| Built in Crossover | Low-pass, Sub-sonic |
| Cooling Fan | No |
| Color | Black |
| Warranty | 1 Year |
| Recommended Power Wire Gauge | 2 Gauge |
| Overall Height | 2.20 inches |
| Overall Length | 11.80 inches |
| Overall Width | 8.20 inches |
| CEA2006 Compliant | No |
| UPC Code | 709483059238 |
| Return period | 30 days |
| Exchange period | 30 days |
Car amplifier installation
We show you the complete process of installing a Pioneer Double DIN car stereo in a Chevy truck. The in-depth video shows the installation of the interface, and steering wheel control.
Amplifier Installation basics
Let's start with the basics of adding or installing a car amplifier. First you will need to plan your installation and power wiring, this usually is the most difficult part of the installation for most.
How to choose the proper wire size explained
What size power wire do I need for my amplifier? Well, that depends on the length of the wire and the power consumption of the amplifier. We walk you through how to choose the right gauge wire and wire material depending on your amplifier installation requirements.
How to wire speakers and subwoofers to your new amplifier
In our third video we demonstrate the various ways you can wire speakers and amplifiers to all types of amplifiers. There different ways to do this depending on the type of amplifier you choose to purchase.
What is gain? How do I set it properly?
In our fourth video we demonstrate how to set the gains on your amplifier to prevent damage to your speakers, subwoofers and even possibly your new amplifier. Using a portable oscilloscope we show you how to set your gains.
-
