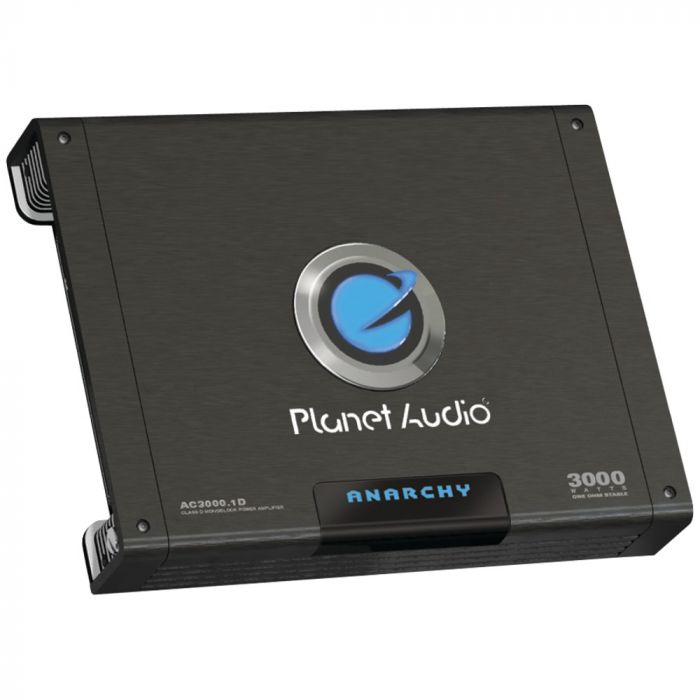

Planet Audio AC3000.1D Anarchy Class D Mono Amplifier 3000W max 1000W x 1 @ 4 Ohm 1500W x 1 @ 2 Ohm 2100W x 1 @ 1 Ohm

Planet Audio AC3000.1D Anarchy Class D Mono Amplifier 3000W max 1000W x 1 @ 4 Ohm 1500W x 1 @ 2 Ohm 2100W x 1 @ 1 Ohm

Planet Audio AC3000.1D Anarchy Class D Mono Amplifier 3000W max 1000W x 1 @ 4 Ohm 1500W x 1 @ 2 Ohm 2100W x 1 @ 1 Ohm

More Views

Planet Audio
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Planet Audio AC3000.1D Product Highlights

  • Heavy Duty Set-Screw Style Terminals
  • Chrome-Plated Connections
  • Switchable Input Sensitivity
  • Continuously Variable Lowpass Crossover
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
  • Lifetime Technical Support
  • Premier Service - Call us! 800-363-0096
  • 30-Day Return Policy - See exceptions
  • Fast Free Shipping - $99+

Overview

Unit includes:

Planet Audio AC3000.1D Anarchy Class D Mono Amplifier 3000W max 1000W x 1 @ 4 Ohm 1500W x 1 @ 2 Ohm 2100W x 1 @ 1 Ohm
  • Quick Overview
  • ANARCHY Class D Mono Amplifier (3,000W max; 1,000W x 1 @ 4 Ohm; 1,500W x 1 @ 2 Ohm; 2,100W x 1 @ 1 Ohm)
  • UPC: 636210103752
  • Weight: 10.95 lbs.
  • Dimensions: 17.3" L x 12" W x 0" H
  • Product Description
  • 1 Ohm stable
  • Switchable input sensitivity: 100 mV-2V or 2V-8V
  • Switchable phase shift (0-180)
  • Variable bass boost (0-18 dB)
  • Continuously variable lowpass crossover
  • Variable subsonic filter (15 Hz-40 Hz)
  • Low level inputs & outputs
  • Power & protection LEDs
  • Heavy duty set-screw style terminals
  • Chrome-plated connections
  • Illuminated logo
  • Signal-to-noise ratio: 105 dB
  • Freq resp: 20 Hz-250 Hz
  • Dim: 13"L x 10"W x 2.19"H
  • 3,000W max
  • 1,000W x 1 @ 4 Ohm
  • 1,500W x 1 @ 2 Ohm
  • 2,100W x 1 @ 1 Ohm

Technical Specifications

Manufacturer Planet Audio
Part Number AC3000.1D
Amplifier Topology Class No
Number of Channels 2 Channel
Total Peak Power Output 2501 - 3000 watts
Total RMS Power Output No
Amplifier Bridging No
Minimum Impedance in Bridged Mode No
Minimum Impedance in Un-Bridged Mode No
Strappable Amplifier N/A
Strappable Power Output N/A
RCA Pre-amp Audio inputs N/A
RCA Pre-amp Audio outputs No
Preamp voltage No
Speaker level inputs Yes
Gain Control No
Bass Knob / Remote Gain No
Built in Crossover Low-pass
Cooling Fan No
Color No
Warranty 1 Year
Recommended Power Wire Gauge N/A
UPC Code 636210103752
