Axxess GMOS-MOST-02 2014 - and Up Chevrolet radio replacement MOST-BUS interface with steering wheel and navigation outputs

$299.99
Out of stock
SKU
GMOS-MOST-02

Key Features

  • 2014 - and Up Chevrolet Corvette and Impala radio replacement interface for plug-and-play installation of an aftermarket car radio
  • Retains factory audio system and vehicle chimes
  • Retains steering wheel controls
  • Provides NAV outputs (parking brake, reverse, and speed sense)
  • Interface is designed for amplified MOST-BUS audio systems

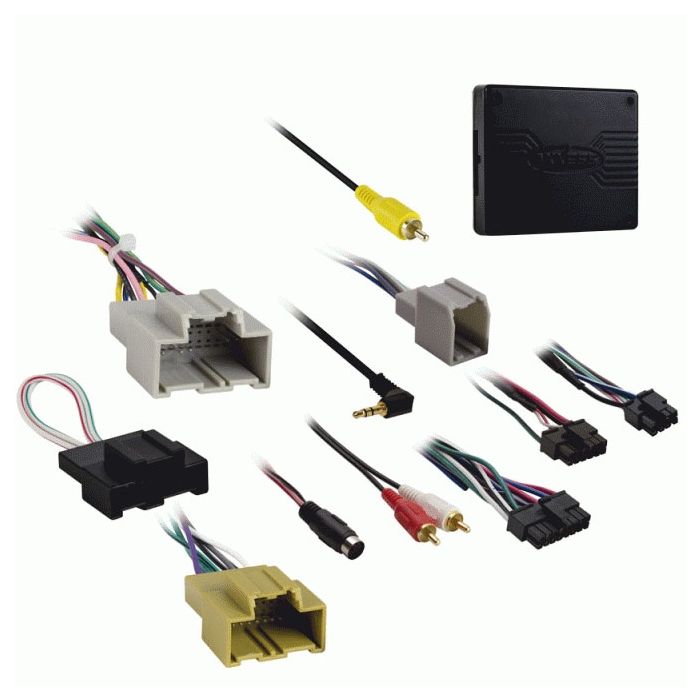

Unit includes: GMOS-MOST-02 Interface control box, GMOS-MOST-02 harness, 16-pin harness with stripped leads, 10-pin jumper harness, Backup camera harness, and Instruction manual

Axxess GMOS-MOST-02 2014 - and Up GM radio replacement MOST-BUS interface with steering wheel and navigation outputs
    Connections:
  • Yellow - 12V Constant
  • Red - 12V Accessory
  • Black - Ground
  • Orange/White - Dash Light Dimmer/Illumination
  • Blue/White - Amplifier turn on
  • Brown - Mute connection
  • Light green - (-) Parking brake lead
  • Blue/Pink - VSS (Vehicle speed sensor)
  • Black/Yellow - OnStar volume adjustment
  • Yellow RCA - Factory back up camera output
  • Green/Purple - (+) Reverse trigger
  • Green - Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White - Left Front Speaker (+)
  • White with Black Stripe - Left Front Speaker (-)
  • Purple - Right Rear Speaker (+)
  • Purple with Black Stripe - Right Rear Speaker (-)
  • Gray - Right Front Speaker (+)
  • Gray with Black Stripe - Right Front Speaker (-)
    Fitments:
      Chevrolet
    • 2014 - and Up Corvette
    • 2014 - and Up Impala
