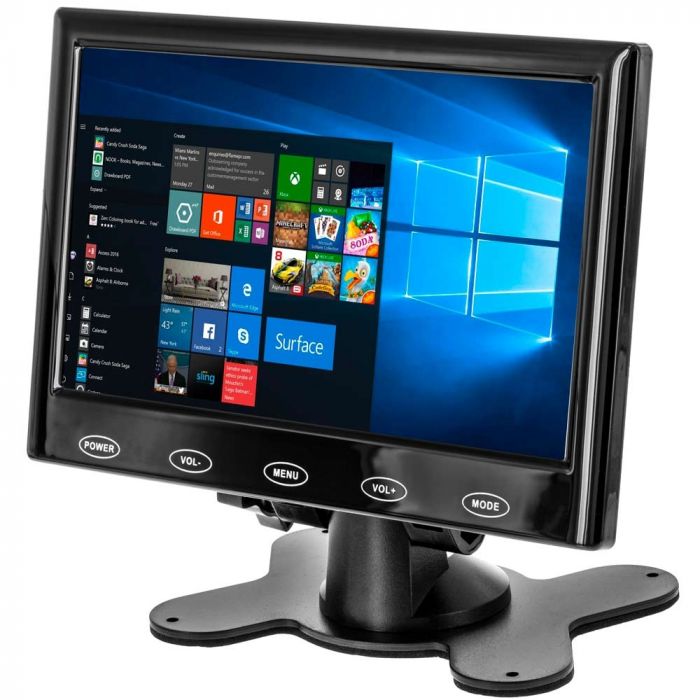

Clarus HR7001 7 inch Universal LCD Monitor with HDMI, VGA and RCA AV Inputs

Rating:
92% of 100
$59.99
In stock
SKU
HR7001

Key Features

  • 7'' Color TFT Universal HD Monitor
  • Resolution: 1024 x 600
  • HDMI and VGA input
  • Pedestal stand with thumb screw angle adjustments
  • Automatic Turn on
  • Two video inputs
  • 12 volt trigger for auto turn on
Unit includes: 7 inch LCD display, Mount, Wireless Remote, VGA Cable, DC Adapter, RCA AV AUX Cable, and Instruction manual

Clarus HR7001 7 inch Universal LCD Monitor with HDMI, VGA and RCA AV Inputs
    Features:
  • 7'' Color TFT Universal HD Monitor
  • Resolution: 1024 x 600
  • Display: 16:9 format
  • HDMI input
  • VGA input
  • RCA AV Auxiliary Jack
  • Includes stand holder with adhesive sticker in the bottom for sticking it in the car
  • Perfect used as CCTV security monitor, PC monitor, Raspberry PI monitor ,DSLR monitor, backup camera monitor, etc.
  • Supports automatically startup detection when reserving
  • Can connect with reversing camera, DVD, VCD, etc.
  • Automatic Turn on and video switching with trigger wire - 12 volt positive trigger
  • Support full color LED backlight display
  • Low power consumption for using long time
  • NTSC / PAL auto switching
  • Power Supply: 12Vdc
    Inputs and Outputs:
  • 1 - HDMI
  • 1 - 12 volt trigger for automatic power on and camera select
  • 1 - VGA
  • 1 - AV Aux Jack
  • 1 - Headphone Jack
    Specifications:
  • Physical Resolution: 1024 x 600 60Hz
  • Synchronous Range: 30-80KHz (level), 55-75Hz (vertical)
  • Plug & Play: VESA DDC 1/2B
  • LED Backlight Brightness: 250cd/m2
  • Contrast Ratio: 300:1
  • Viewing Angle: 175 degree (Left / Right); 155 degree (Up / Down)
  • Power Supply: DC 12V / 24V
  • Power consumption: 6W
  • Support Operating System: DOS / Window 9X, ME, 2K, XP, 7, 8, Vista, NT, CE, LINUX, Mac and so on
  • Working Temperature: -20 ~ +65 Celsius
  • Working Humidity: 10 ~ 90%
  • Storage Temperature: -20 ~ +80 Celsius
  • Storage Humidity: 5 ~ 90%
  • Housing Material: ABS
  • Product Size: 178 x 118 x 8mm
  • Net Weight: 219g
  • Storage Temperature: -20 ~ +80 Celsius
    Dimensions:
  • Monitor dimensions: 7" (W) x 4-7/8 (H) x 7/8" (D)
  • Viewable area: 6-1/8" (W) x 3-7/16" (H)
More Information
Manufacturer Quality Mobile Video
Part Number HR7001
LCD Screen Size 7 inch - 8 inch
Native Screen Resolution 1024 x 600
Widescreen Display 16:9 Widescreen Display
LCD back light type LED
LCD Screen Brightness 300 Nit
Touchscreen No
Built-in DVD Player No
Headphone Transmitter No
Headphone Jack Yes
Built in Speakers Yes
HDMI input Yes
VGA input Yes - VGA input
Audio Video inputs 1 Audio Video Input
Audio Video Outputs None
Composite video input Yes
Front mounted auxiliary input None
USB input No
SD Card input No
Housing material Plastic
Slide track on back Yes
Mounting thread for stand mount Yes
Mount included Yes, Pedistal stand
Trigger wire No
Cigarette Lighter Cord Included No
Operation Voltage 12-15 Volt DC
Ac Adapter included Yes
Headrest Shroud included No
Wireless Remote Control Yes
Monitor Color Black
Color Black
Overall Height 4.88 inches
Overall Length 0.88 inches
Overall Width 7.00 inches
Warranty 1 Year
UPC Code 0604753510917
Return period 30 days
Exchange period 30 days
