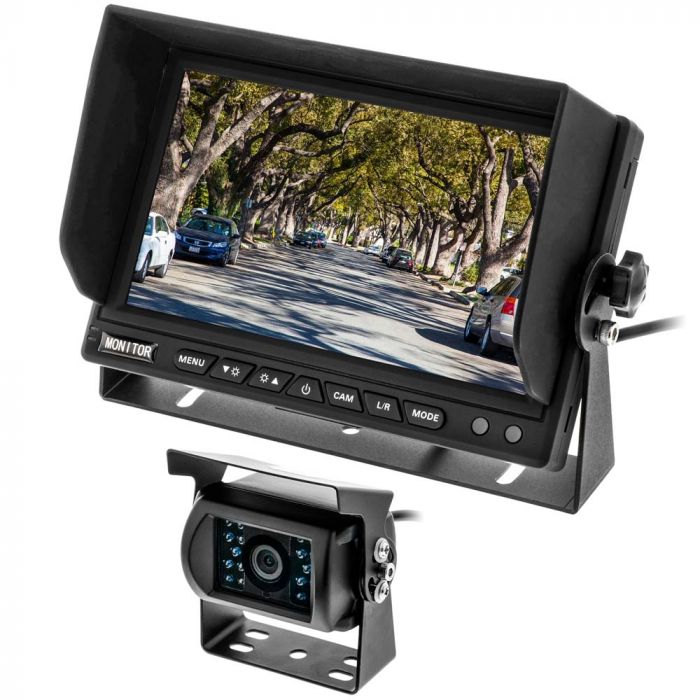

Safesight SC9001HD 7 inch 720p High Definition Commercial RV Back Up Camera System
$235.99
In stock
SKU
SC9001HD
Expert Knowledge
Talk to a specialist
- 720p HD 7 inch LCD monitor with two video inputs
- Monitor Resolution: 1024 x 600
- 1.3 Megapixel 720p 1/3" Night vision CMOS camera
- 120° viewing angle
- IP69K waterproof rating
- System voltage: 12V - 24V
Unit includes: 7 inch LCD monitor, Monitor Bracket, Removable sun shade, Wiring harness, 60 foot extension cable, Back up camera, Remote Control Instruction manual, and Connectors
Safesight has reintroduced one of its best selling back up camera systems, but added 720p HD! The system is fully backwards compatible with non-HD cameras and cables, so you can easily change your existing SC9001 camera and monitor and use the existing cable and add the new HD monitor and camera. You can also use a non-HD camera as a front or auxiliary camera since the monitor supports two video inputs.
Safesight SC9001HD 7 inch 720p High Definition Commercial RV Back Up Camera System-
Monitor Features:
- Ideal for Heavy Duty and Commercial Vehicles (Truck, RV, Van, Tractor, Trailer, Bus, Crane, Dirt Wagon, etc)
- Strong industrial U-bracket with dual mounting screws per-side
- Includes removable sun shade
- 720p HD Digital 7 inch LCD monitor with two video inputs
- PAL / NTSC / AHD auto switching
- Resolution: 1024 x 600 x RGB
- Brightness: 250 NIT
- Power Supply: DC 9 Volts - 36 Volts
- OSD Menu (On Screen Display)
- Contrast, Color and Brightness
- 4-way image rotation function
- View Angle range; Left/Right - 65° Top - 40° Down - 15°
- Monitor inputs and Outputs:
- 1 - 4-pin back up camera input (Video 1)
- 1 - 4-pin camera input (Video 2)
- 1 - 12 volt trigger (Video 1)
- 1 - power and ground input
- High Resolution Back Up Camera
- 1/3" 1.3 Megapixels CMOS Sensor
- Effective Pixels: 1280 x 960
- 120° Wide Angle Camera
- Minimum Illumination: 0 Lux (LED On)
- IR Infrared LEDs for Night Vision 20 meters distance
- Electronic Shutter: 1/25s~1/50,000s , 1/30s~1/60,000s
- Operating Temperature: -20 degrees C ~ +70 degrees C (RH 95% Max)
- Lens: F = 2.5mm/ 1.7mm
- Power Supply: DC 12V
- Camera Dimensions: 2-3/4" (W) x 1-15/16 (D) x 1-5/8"(H)
- Waterproof Rating: IP69K
- Shell Material Aluminium Alloy
- Square style casing
- Camera Features:
| Manufacturer | Safesight |
|---|---|
| Part Number | SC9001HD |
| LCD Screen Size | 7 inch - 8 inch |
| Native Screen Resolution | 1024 x 600 |
| Widescreen Display | 16:9 Widescreen Display |
| LCD Screen Brightness | 400 Nit |
| LCD back light type | LED |
| Auto Dimming | No Dimming |
| Trigger wire | Yes |
| Modulation | NTSC and PAL |
| Slide track on back | Yes |
| Image Flip Function | Image rotate |
| Built in Speakers | Yes |
| Mount included | Yes, Pedistal stand |
| Auto on/off | Yes |
| Cigarette Lighter Cord Included | No |
| Audio Video inputs | 2 Video Inputs |
| Wireless Remote Control | Yes |
| Monitor Type | Stand alone monitor |
| Back up camera type | Surface Mount Camera |
| Reverse Image | Selectable |
| Camera Sensor type | CMOS |
| Camera diameter | 1/3” |
| Viewing Angle | 120 degrees |
| Built in Microphone | No |
| Infrared Illumination | Yes |
| Waterproof ingress protection | IP69K - Dust; High Pressure and Temperature rating |
| Battery Powered | Hard wired |
| Wireless Transmission | Wired connection |
| Color | Black |
| Operation Voltage | 12-24 Volt DC |
| Warranty | 1 Year |
| Return period | 30 days |
| Exchange period | 30 days |
