Power Acoustik RZ1-1500D Razor Series Class D Full Range Monoblock Amplifier

Power Acoustik RZ1-1500D Razor Series Class D Full Range Monoblock Amplifier

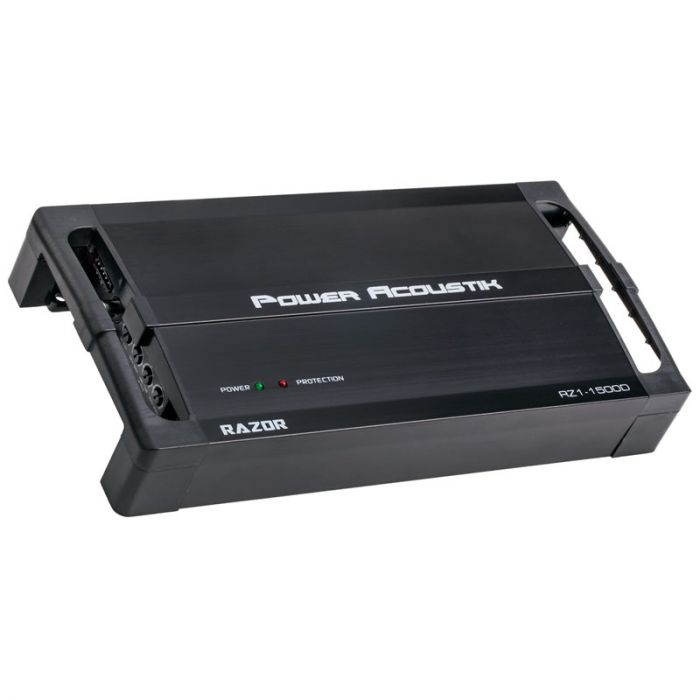

Power Acoustik RZ1-1500D Full Range Amplifier - Main



More Views

Item sku:RZ1-1500D
Power Acoustik

Overall Rating 0 (Based on 0 reviews)

Would you recommend this to a friend?

Write a review

Power Acoustik RZ11500D Product Highlights

  • 1500 Watt 1-channel Class-D Full range amplifier
  • Pulse Width Modulated MOSFET power supply for exceptional power and current output
  • Dark anodized aluminum heat sink for excellent heat dissipation
  • Frequency response: 20 Hz - 30 kHz
  • Speaker level inputs
  • Max power 2-Ohm: 1500 Watts x 1

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 818-242-9461
  • Fast Free Same Day Shipping - Over $99

Buy everything you need as a package and SAVE!

Overview

Unit includes: Mono amplifier, Remote bass control, Mounting hardware, and Installation instructions>

Sound Storm (SSL) EV1500M Evolution Series 1500 Watt Class-AB Mono Block Amplifier

Features:
  • 1500 Watt 1-channel Class-D amplifier specifically designed for subwoofers
  • Pulse Width Modulated MOSFET power supply for exceptional power and current output
  • Dual LED indicators: green for power and red for protection
  • Soft turn on circuitry to reduce popping and high-volume damage
  • Dark anodized aluminum heat sink for excellent heat dissipation
  • Side mounted controls for crossover and gain
  • Two-stage protection covers thermal, and speaker short circuits
  • On-board Bass boosts from 0 to +12dB at 45 Hz
  • Variable low-pass filter: 35-250 Hz, 12 dB/ octave
  • Frequency response: 20 Hz - 30 kHz
  • Nickel plated power and ground connectors suitable for ring or spade connectors
  • Nickel plated RCA inputs
  • Input sensitivity Low level: 250mV - 6V
  • Includes wired bass control
  • Speaker level inputs
  • 1 Year Standard Warranty


Inputs and Outputs:
  • 1 - RCA pair low level input
  • 8 AWG power input connections
  • 8 AWG speaker output connections
  • 1 - Stereo speaker level inputs


Max Power Output:
  • 2-Ohm: 1500 Watts x 1


RMS Power Output:
  • 4-Ohm: 600 Watts x 1
  • 2-Ohm: 900 Watts x 1


Built in Crossover:
  • Mono Channels: Variable 50Hz - 250Hz @ 12dB/octave


Dimensions:
  • Overall Dimensions: 10” (L) x 4-3/4” (W) x 1-1/2” (H)

Technical Specifications

Manufacturer Power Acoustik
Part Number RZ11500D
Amplifier Topology Class Class D
Number of Channels 1 Channel
Total Peak Power Output 1001 - 1500 watts
Total RMS Power Output 900 watts
Amplifier Bridging Not Bridgable
Minimum Impedance in Bridged Mode No
Minimum Impedance in Un-Bridged Mode 2 ohm
Strappable Amplifier No
Strappable Power Output No
RCA Pre-amp Audio inputs N/A
RCA Pre-amp Audio outputs No
Preamp voltage 6 volts
Speaker level inputs Yes
Gain Control Yes
Bass Knob / Remote Gain Yes
Built in Crossover Low-pass
Cooling Fan No
Color Black
Warranty 1 Year
Recommended Power Wire Guage No
UPC Code 709483043756
