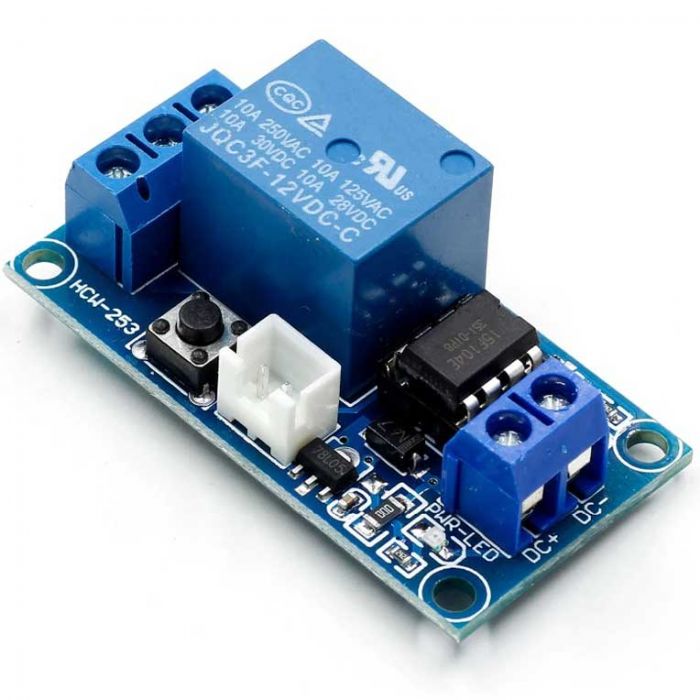

QMV 12VLR1 12 VDC SPDT Latching relay with on board switch and switch leads

$8.99
In stock
SKU
12VLR1

Key Features

  • Fully latching relay with on board switch and switch leads
  • Requires a minimum of 9 volts to function
  • 10 amp / 15 amp rated contacts
  • SDST - Single pole Dual throw
Unit includes: 12 volt latching relay

QMV TDR12V1 12 VDC SPDT Latching relay with on board switch and switch leads

The QMV TDR12V1 is a very cool relay. Have you ever wanted to have something turn on after 1 to 10 seconds after power is applied? The TDR12V1 relay is just the relay for you. This relay is a time delay-on relay with adjustable timings allowing you to control any device. This relay is perfect for a variety of things such as delayed amplifier turn on. It utilizes mini relay with single pole dual throw contacts. It easily switches 10 amps of current and peaks of 15 amps.



    Features:
  • Fully latching relay with on board switch and switch leads
  • Circuit board design with dual indicator LED's
  • Requires a minimum of 9 volts to function
  • Fully latches with on-board switch or external switch
  • External switch can be triggered with any push button momentary switch
  • Relay stays latch until button is pressed
  • 10 amp / 15 amp rated contacts
  • SPDT - Single pole Dual throw
  • 12 Vdc rated coil with minimum 7 volt to trigger
  • Power consumption (idle) @ 12Vdc 10 mA
  • Power consumption (latched) @ 12Vdc 43 mA
  • Screw terminals for easy connections up to 16 gauge wire
  • Dimensions 1" (W) x 2" (L) x 3/4" (H) with terminals

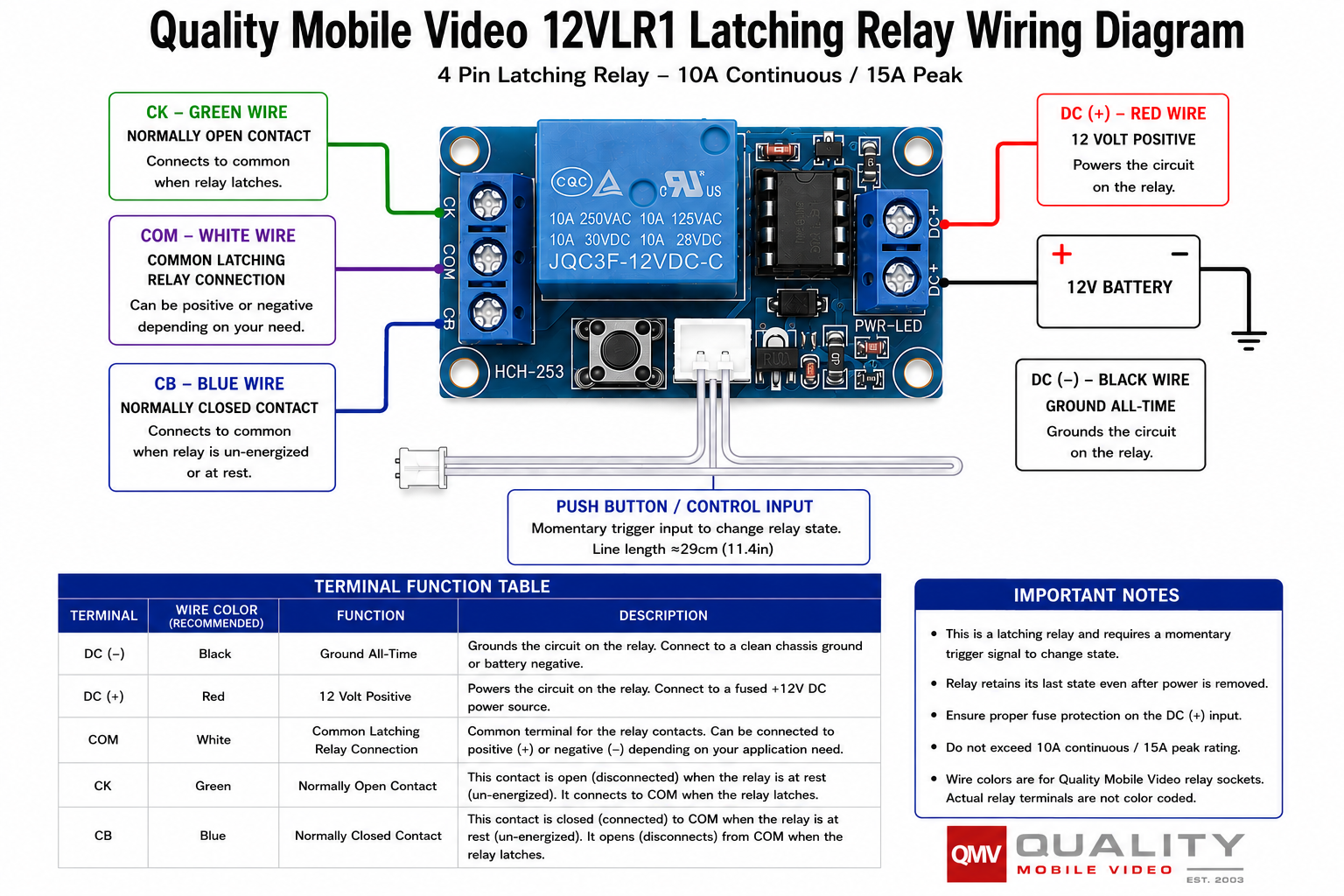

    Contact configuration:
  • DC (-) - Ground all-time, grounds the circuit on the relay
  • DC (+) - 12 volt positive, powers the circuit on the relay
  • COM - Common latching relay connection (Can be positive or negative depending on your need)
  • CK - Normally open contact (Connects to common when relay latches)
  • CB - Normally closed contact (Connects to common when relay is un-energized or at rest)
    Uses:
  • Low voltage latching relay:Circuit can operate with as little as 9 volts and control currents and voltage much larger
More Information
Manufacturer Quality Mobile Video
Part Number 12VLR1
Operation Voltage 8-15 Volt DC
Relay type Latching relay
Current capacity 10 Amp
Pole switching type SPDT (Single pole Dual throw)
Tab type No Tab
Waterproof ingress protection None
Warranty 90 days
Return period 30 days
Exchange period 30 days
